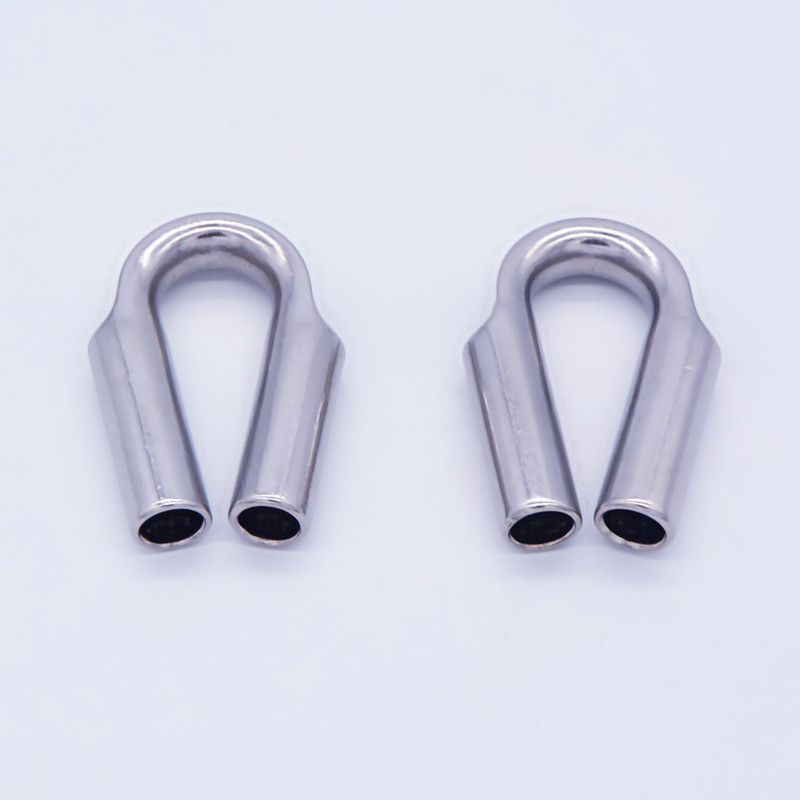

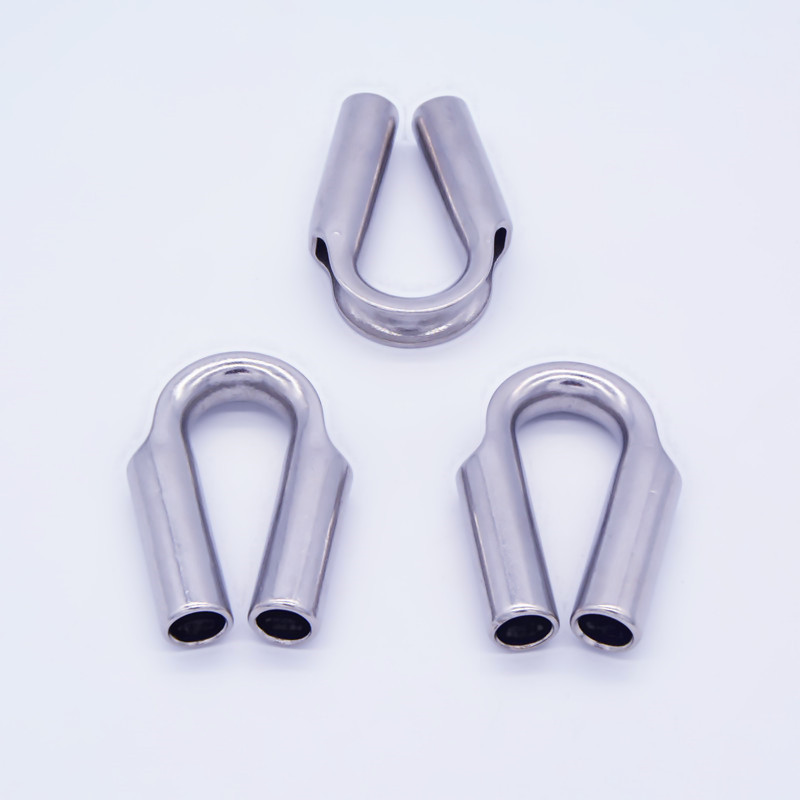

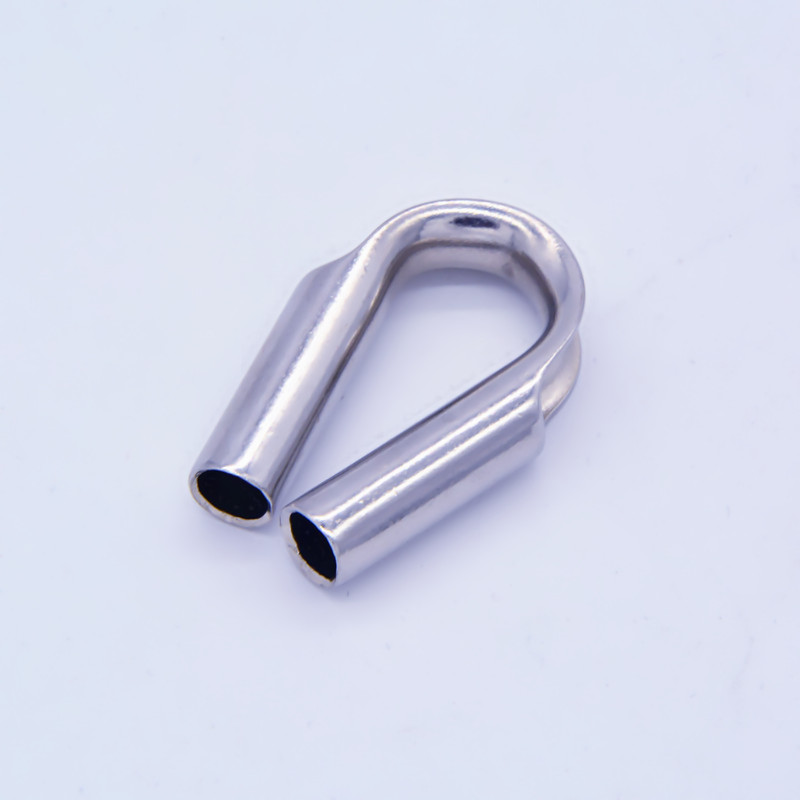

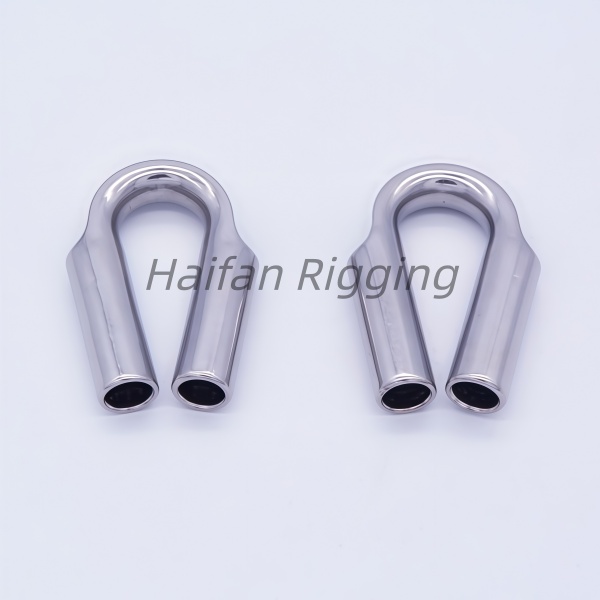

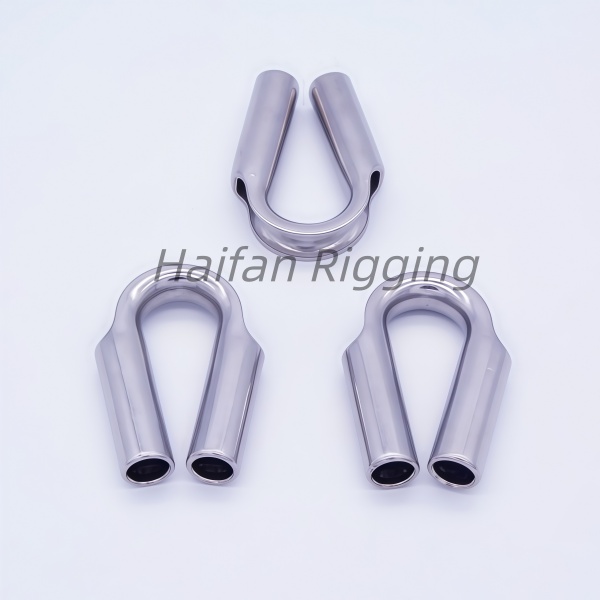

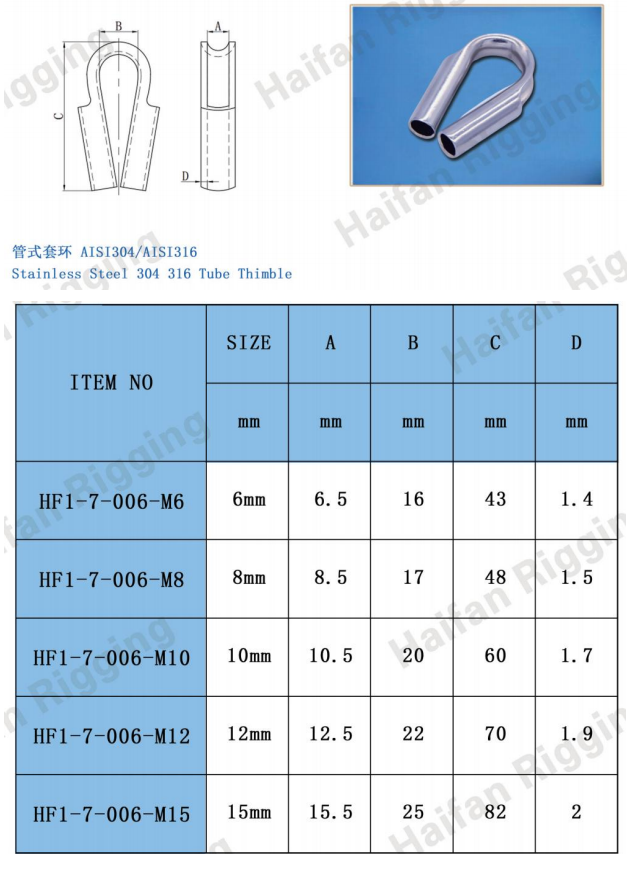

Stainless Steel Wire Rope Tube Thimble
This stainless steel wire rope tube thimble is an ultra-heavy-duty, fully enclosed rigging component designed to line and protect the inside loop (or "eye") of a wire rope. Unlike traditional open-groove thimbles where the cable sits exposed on the outside track, a tube thimble features a hollow steel tube that completely surrounds and encloses the wire rope through the entire bend of the eye.
Key Characteristics Fully Enclosed Tube Design: The wire rope is threaded through the interior of a rigid steel tube. This encapsulates the cable completely around the loop radius, leaving no part of the wire exposed to direct external friction or pinching.
Reinforcing Gusset (Optional): Many high-load tube thimbles feature a solid steel gusset plate welded across the center of the loop, providing immense structural resistance against crushing forces.316 Marine-Grade Stainless Steel: Typically manufactured from cast or heavy-wall 316 stainless steel to provide maximum protection against rust, pitting, and harsh saltwater environments.
Primary Functions
Ultimate Cable Protection: Because the wire rope is fully enclosed inside the steel walls, it is 100% shielded from chafing, cutting, or striking damage from connecting shackles, pins, or hooks.
Prevents Elongation and Distortion: Under extreme tensile stress, open thimbles can buckle, warp, or allow the cable to pop out of the groove. The rigid, continuous tube structure completely eliminates this risk, maintaining a perfect loop geometry.
Smoother Load Distribution: The structural rigidity of the tube evenly distributes extreme heavy loads across the entire eye, preventing localized wire fatigue.
Common Applications
Tube thimbles are reserved for critical, high-load, and high-abrasion environments where standard thimbles would fail:High-Performance Marine Rigging: Used for sailboat halyards, heavy-duty mooring lines, towing bridles, and anchor lines.
Commercial Slings and Winches: Heavily utilized on synthetic fiber ropes (like Dyneema or Spectra) and steel wire ropes on industrial winches where maximum eye integrity is mandatory.
Commercial Fishing: Used on high-tension trawl net lines that constantly drag and rub against rough marine hardware.
If you are building a heavy-duty cable or rope assembly, let me know the diameter of your rope and whether you are using steel wire or high-performance synthetic rope so I can help you select the correct tube sizing.

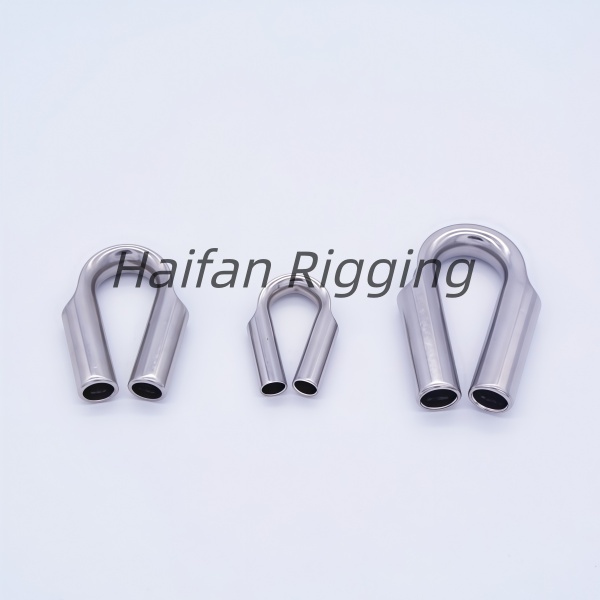

Stainless Steel Tube Thimble Heavy Duty for Wire Rope Cable
Need one or more type thimbles?There's a very good chance you'll find it right here at Haifan. Furthermore, it’s well worth taking a look at our lifting shackles, wire rope pullers and other types of fittings whilst you're here too.

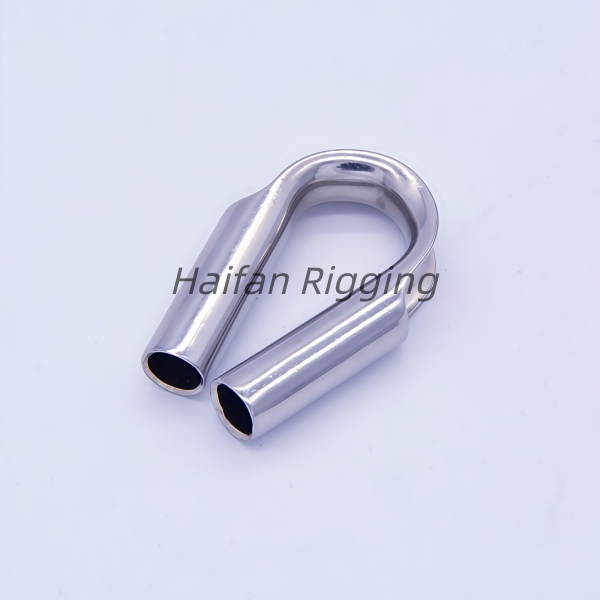

Stainless Steel Tube Thimble

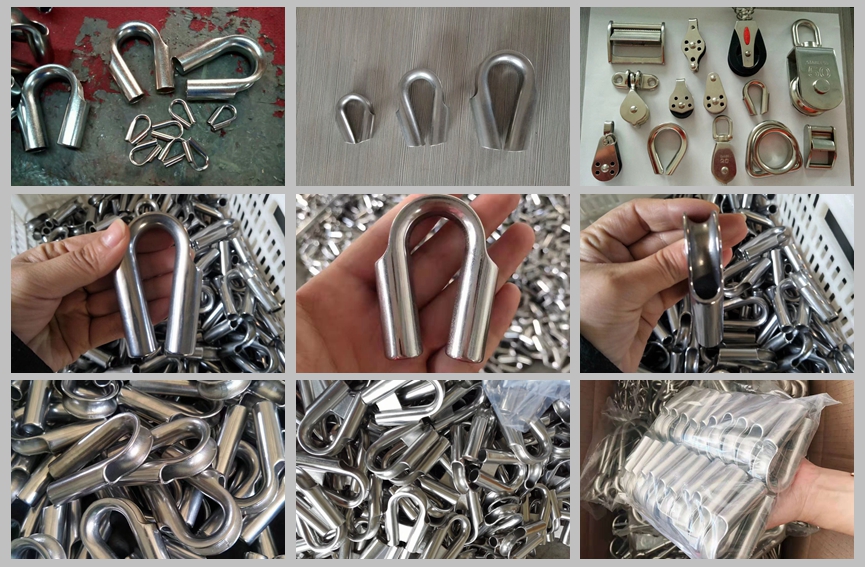

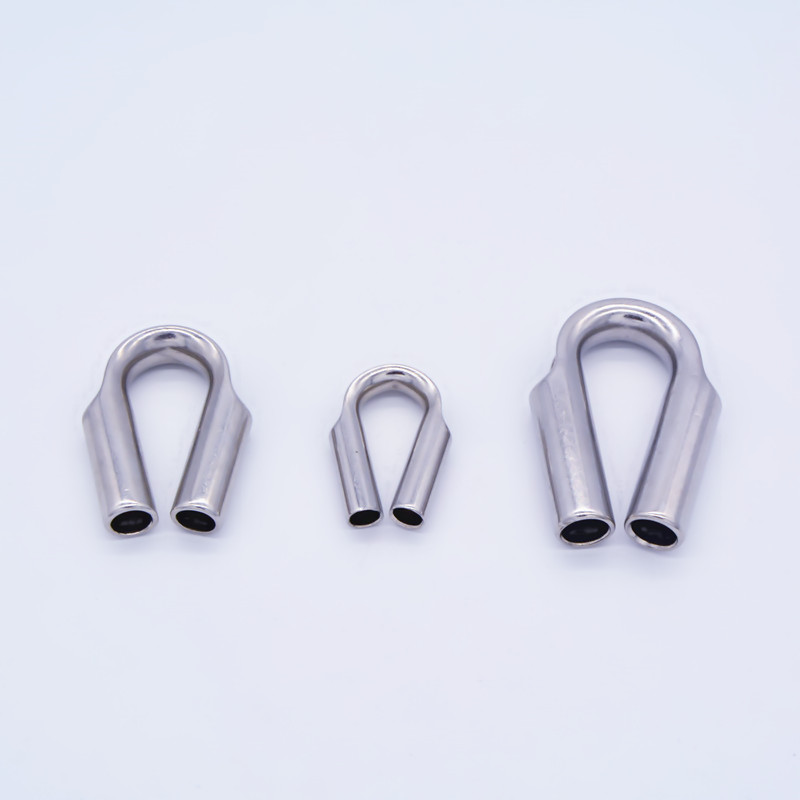

Haifan Rigging can supply wire rope thimbles in a wide range of sizes to suit a vast range of wire rope/cable diameters.
Choosing the right size of thimble is important so do contact us to discuss your requirements and place your order today.
We also supply a wide range of alternative wire rope fittings to suit a range of applications.
