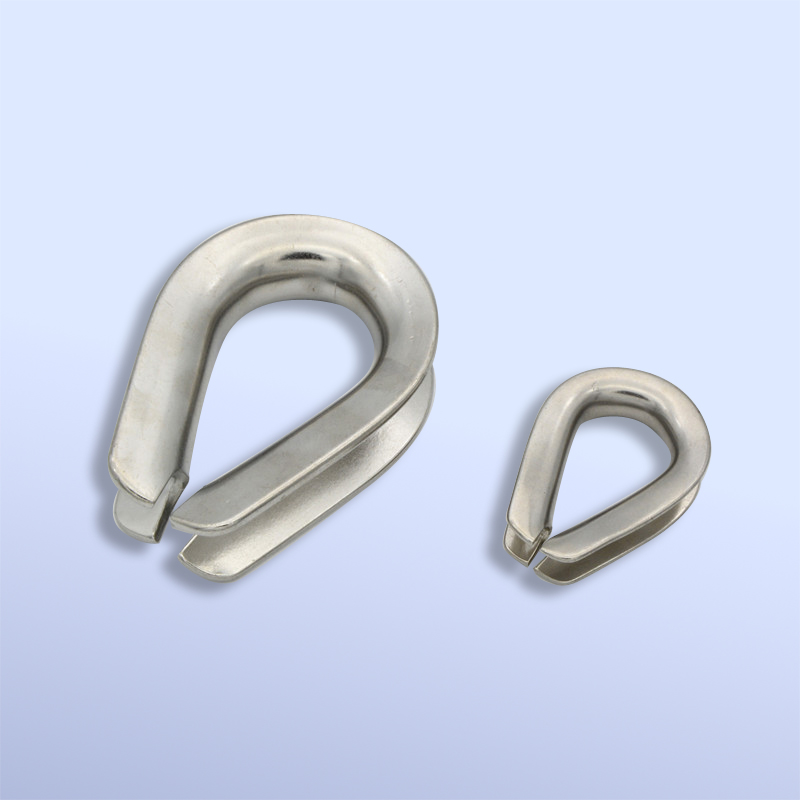

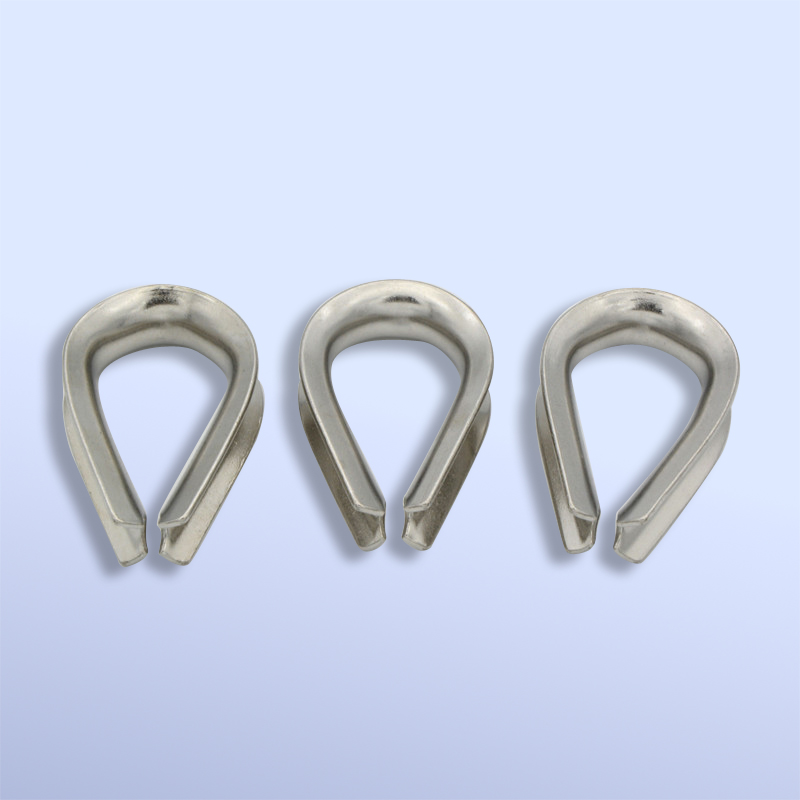

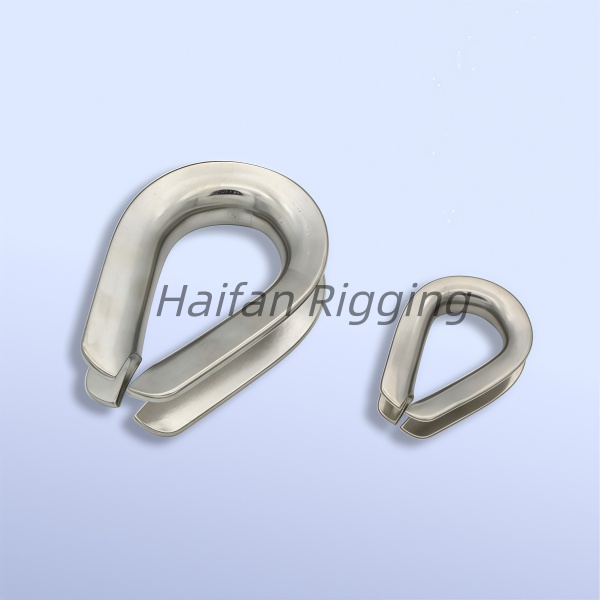

Wire Rope Thimbles-Stainless Steel US Type G414 Wire Rope Thimble.
This US Type G414 Wire Rope Thimble is a heavy-duty rigging component designed to support, line, and protect the inside loop (or "eye") of a wire rope. It is manufactured to meet US Type, which mandates stricter dimensional tolerances and significantly more steel reinforcement than standard-duty thimbles.Its primary purpose is to prevent the cable eye from collapsing, flattening, or fraying under extreme tension or heavy lifting loads.
Key Characteristics
Heavy-Duty Construction: The "G414" designation denotes a heavy-pattern thimble. It is made from much thicker metal stock with a deeper groove than the light-duty G411 pattern, ensuring it will not deform or turn inside out under high loads.
Material Options: They are most commonly forged from high-tensile steel or cast/stamped from 316 marine-grade stainless steel for superior corrosion protection.
Deep Groove Channel: The deeper groove completely nests and cradles the wire rope, preventing the cable from slipping out of the side of the thimble during heavy vibration or shifting loads.
Primary Functions
Prevents Eye Deformation: Under heavy force, standard thimbles can buckle, pinching the cable until it snaps. The G414 profile resists this crushing force to maintain a perfectly round loop radius.
Protects Against Chafing: It serves as a rugged steel shield between the wire rope strands and sharp or heavy connecting hardware, such as master links, crane hooks, or heavy shackles.
Extends Rigging Lifespan: By preserving the wire rope's minimum bend radius, it stops individual steel wire strands from fatiguing and snapping.
Common Applications
Because G414 thimbles are built for severe operating conditions, they are the industry standard for dynamic or high-stress applications:

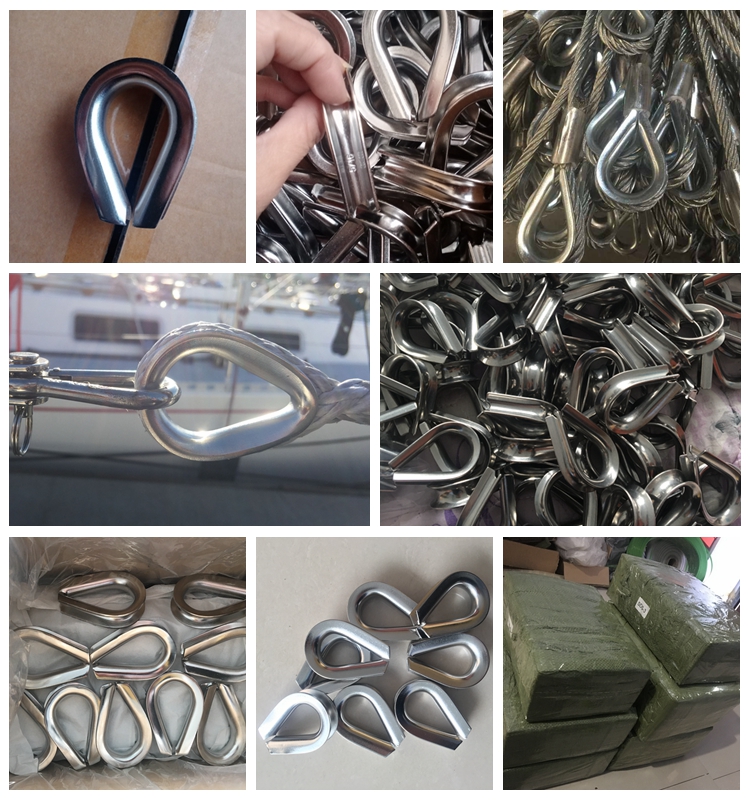

Heavy Industrial Lifting: Used in overhead crane slings, construction rigging, and industrial winches.
Towing and Marine: Tugboat towlines, heavy mooring lines, ship anchor chains, and commercial fishing nets.
Mining and Forestry: Logging chokers, structural guy-wire supports, and high-tension extraction lines.
If you are setting up a rigging assembly, let me know what weight capacity you need to support or the size of your wire rope so I can confirm if the G414 pattern meets your safety requirements.

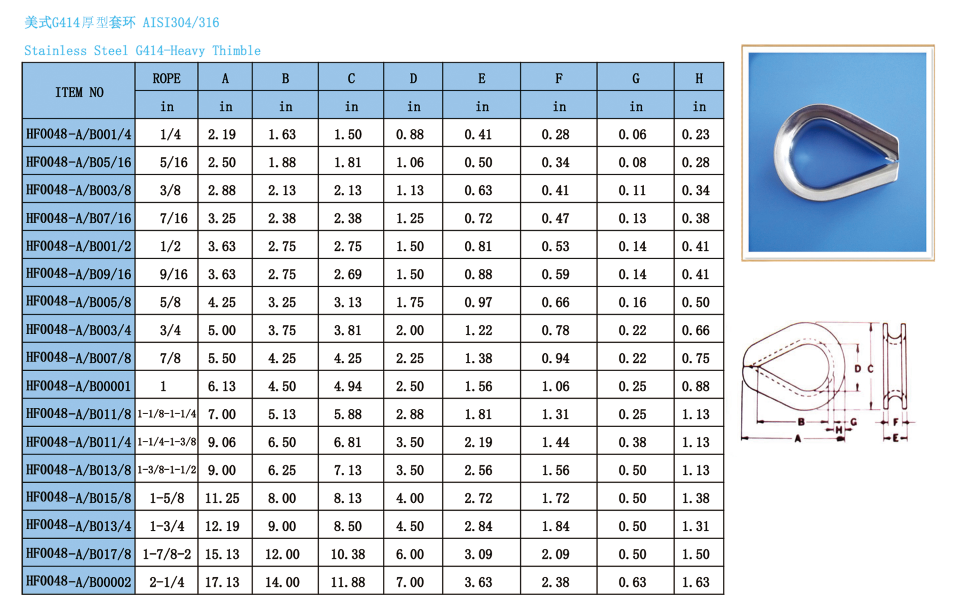

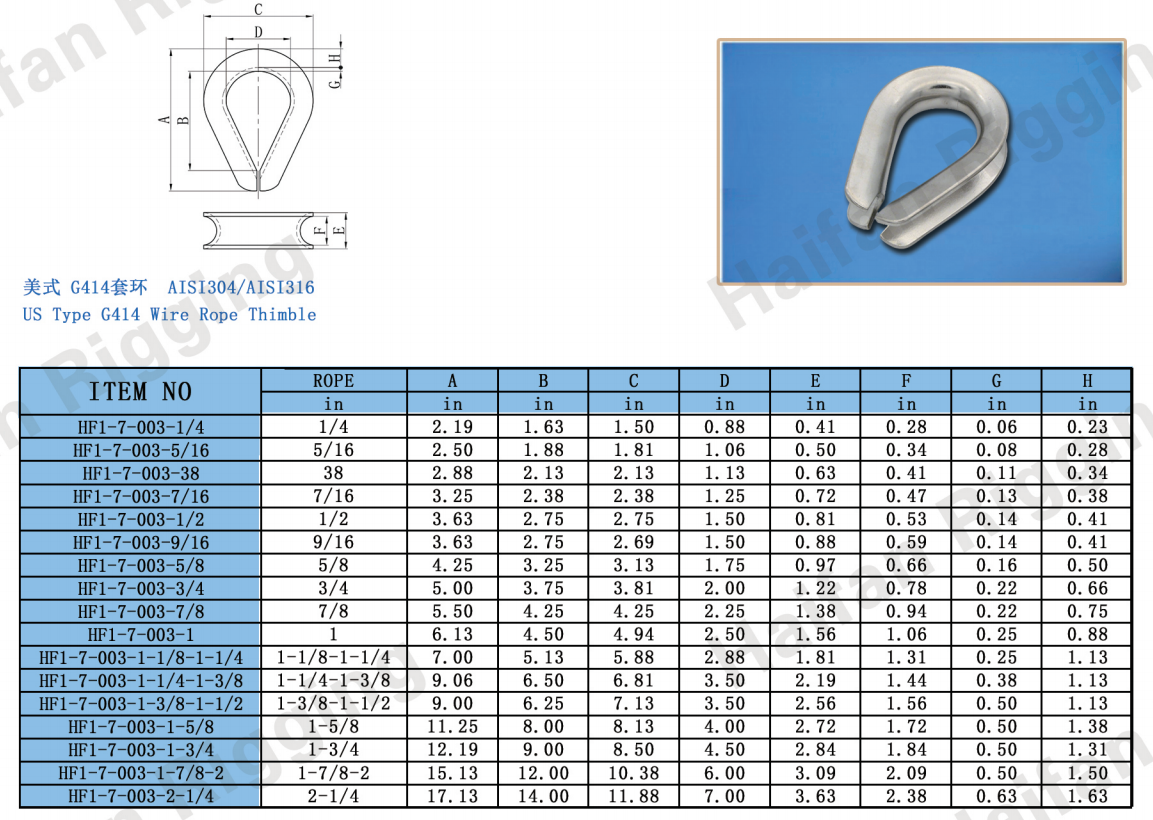

US type G414 Thimbles
Details regarding stainless steel G414 thimbles can be found on this page which is one of our products from the large range of wire rope fittings available on our website. Whilst you’re here, don’t forget to look through our diverse related product range to complement your thimble.
US type G414 Thimbles – practical and versatile
US type G414 Thimbles, Our great value range of stainless steel commercial pattern thimbles are designed for Stainless Steel Commercial Pattern thimbles, supporting stainless steel wire ropes and are perfect for domestic jobs as well as landscaping, sailing and installations. Because they are made from stainless steel they are perfect for outdoor atmospheres and severe climatic conditions because there’s no worry about rusting.
Ready to get your US type G414 Thimbles order to us?
Thanks to our years of diligence and excellent customer service, Haifan Rigging are excited to provide stainless steel commercial pattern thimbles for any project you can think of. To let us know what you wish to buy,simply send us back a completed form via our contact us page.
We are always pleased to help.
