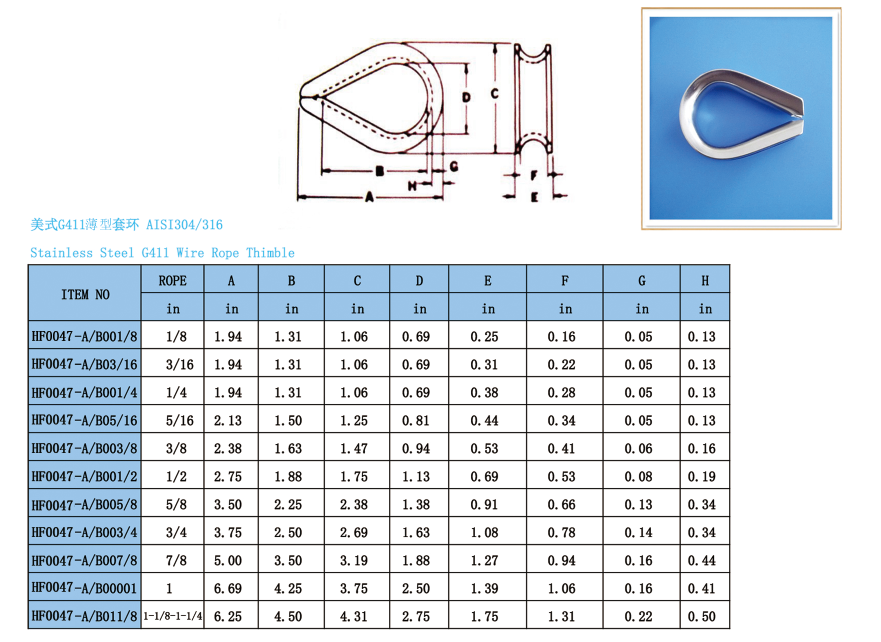

Wire Rope Thimbles-Stainless Steel US Type G411 Wire Rope Thimble
A Stainless Steel US Type G411 Wire Rope Thimble is a standard-duty rigging component designed to line and protect the inside loop (or "eye") of a wire rope.
It is manufactured according to US Specification, which establishes its exact dimensions, groove depth, and load capabilities.
Its primary purpose is to maintain the shape of the cable loop and protect it from crushing or fraying under tension.
Key Characteristics
US G411 Design Standard: The "G411" designation refers to the specific US Type for a standard-duty (light-duty) thimble. It features a relatively wide, shallow profile compared to heavy-duty (G414) thimbles, making it highly flexible and easy to fit into tight spaces.
Premium Stainless Steel: Typically forged or stamped from 304 or 316 (Marine Grade) stainless steel. The 316 stainless steel variant provides exceptional resistance to pitting, rust, and salt-water corrosion.
Smooth Groove Channel: The interior channel is precisely shaped to fit standard fractional (inch-based) wire rope diameters (e.g., 1/8", 1/4", 3/8"), providing a smooth surface that reduces wire friction.
Primary Functions
Preserves Bend Radius: It prevents the wire rope from bending too sharply, which would weaken the metal strands and cause premature cable failure.
Resists Chafing: It acts as a protective barrier between the flexible wire rope and rigid connecting hardware like hooks, anchors, or snap shackles.
Maintains Eye Integrity: Under load, it keeps the eye from collapsing into a tight, destructive pinch.
Common Applications
Because G411 thimbles are rated for standard or light-duty use, they are heavily favored in applications where static tension or light loads are present:
Marine & Boating: Lifelines, rigging lines, boat davits, and general utility tie-downs.
Architectural & Decorative: Cable railing systems on decks, outdoor catenary string lighting, and trellis wire installations.
Light Industrial: Cargo netting, light-duty winches, and static guy wires for antennas or towers.
If you are planning a project, let me know the diameter of your wire rope and whether it will be used for heavy lifting or static rigging so I can help you verify if the G411 pattern is the safest choice.

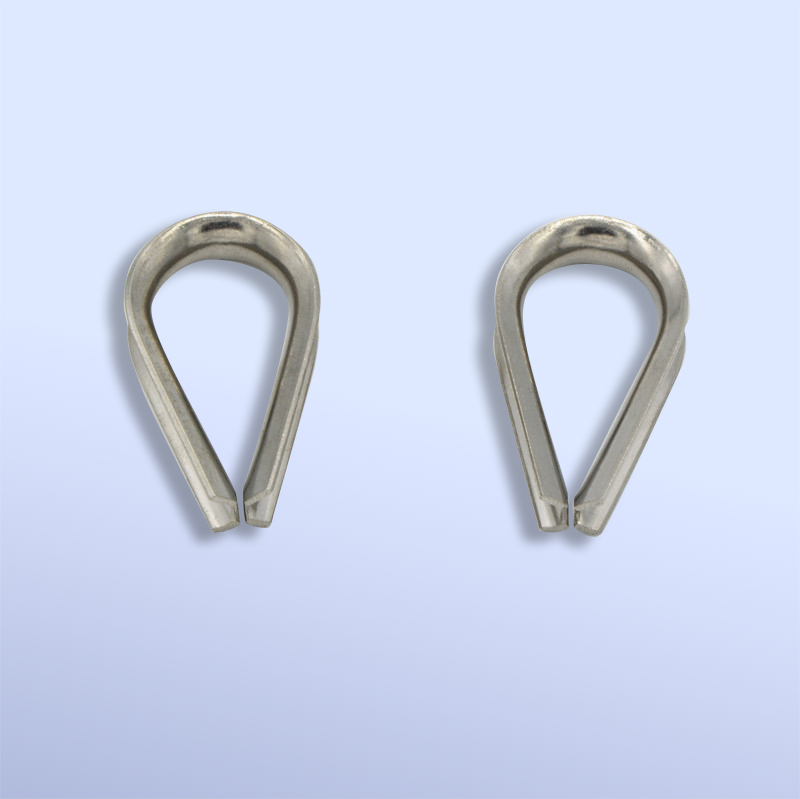

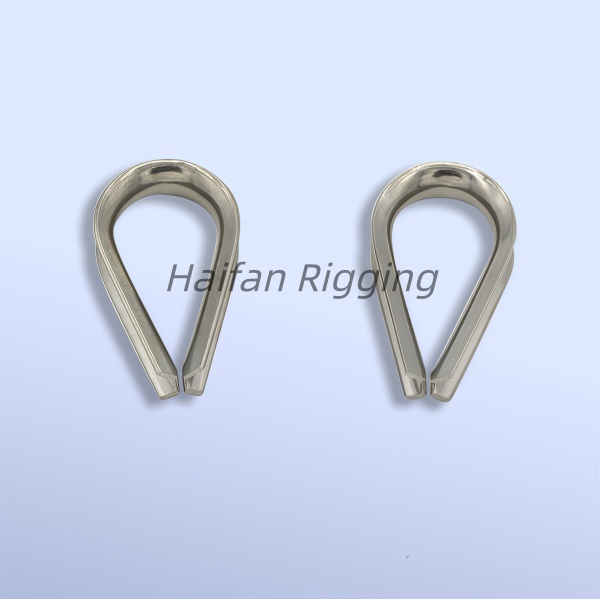

US Type G411 Thimbles
This page is dedicated to US Type G411 thimbles. We're sure to have it in the right size at Haifan Rigging. If the US Type G411 thimble is not the right one for you then browse our other types of rope thimbles,we have a wide range available and can fit them to new or existing wire rope for your convenience. We can also fit or supply a range of alternative rope fittings and also many types of wire rope to suit.
US type G411 thimbles–simple and effective
US Type G411 Thimbles thimbles are well suited to many applications including engineering operations,gardening and landscape jobs,in sailing,yachting,sculptures and art work.
Fashioned from weather-proof stainless steel,they are great when used in extremely tough external atmospheres for example in marine air and adverse conditions. This is because they will not rust,tarnish or degrade.

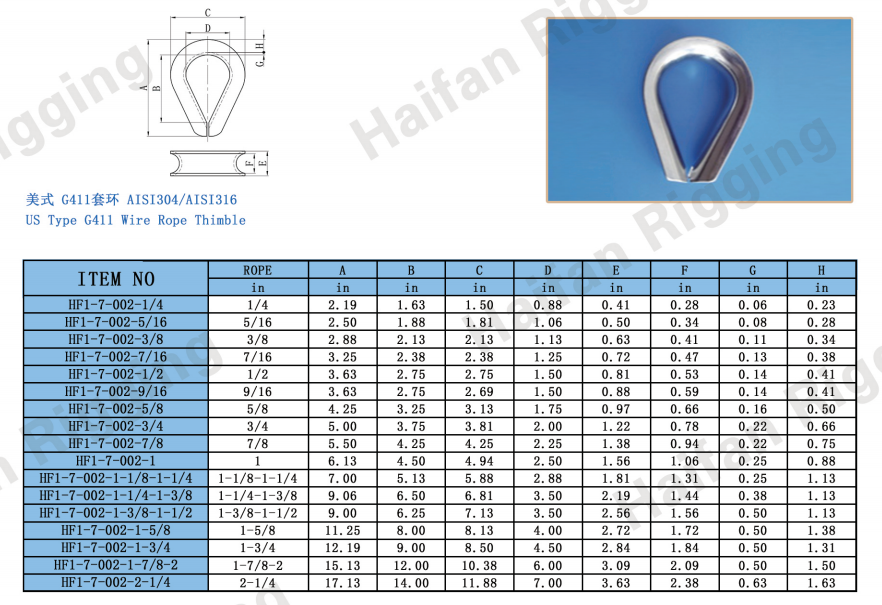

Our US Type G411 Thimbles are sold in sizes to suit rope diameters from 1/4'' to 2-1/4''.
Pass on your US Type thimble requirements to us.
Due to our extensive knowledge and customer service,at Haifan Rigging we offer US type thimbles in a variety of sizes. To inform us what you need and give us your order,simply take the time to fill out our handy quick form here. Wish to discuss your plans with our team or need us to answer a question? Contact us any time. We would be more than pleased to offer some pointers.
