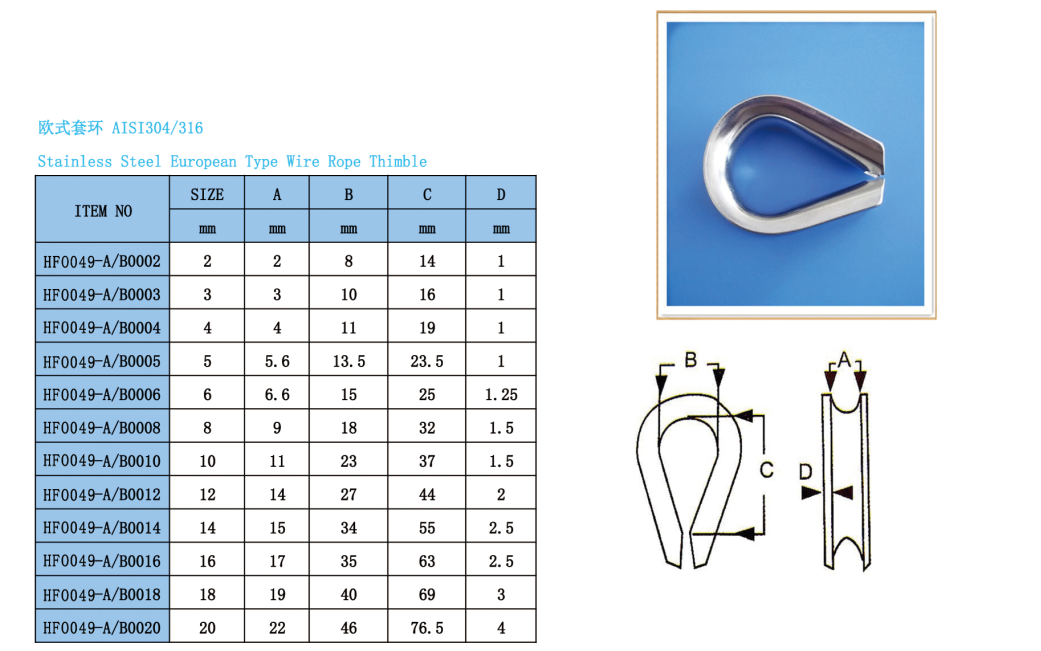

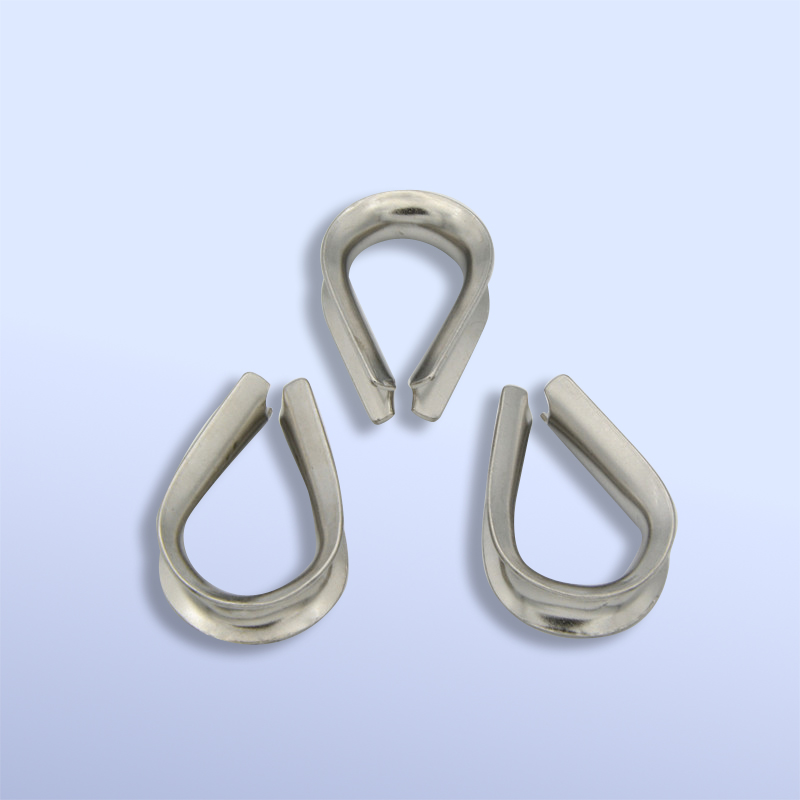

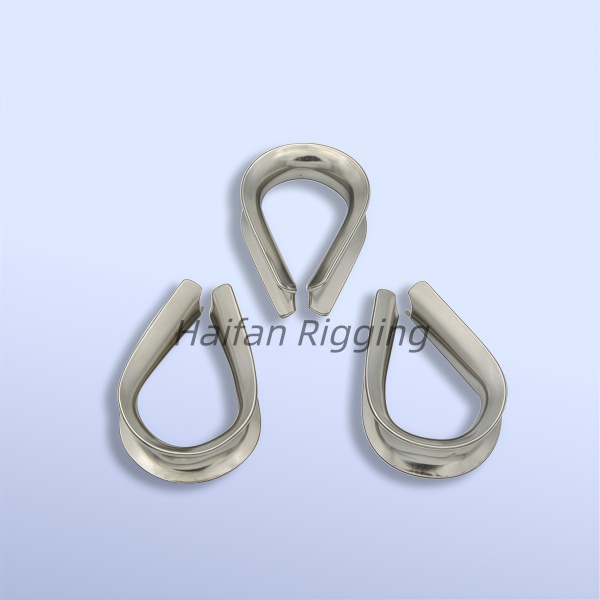

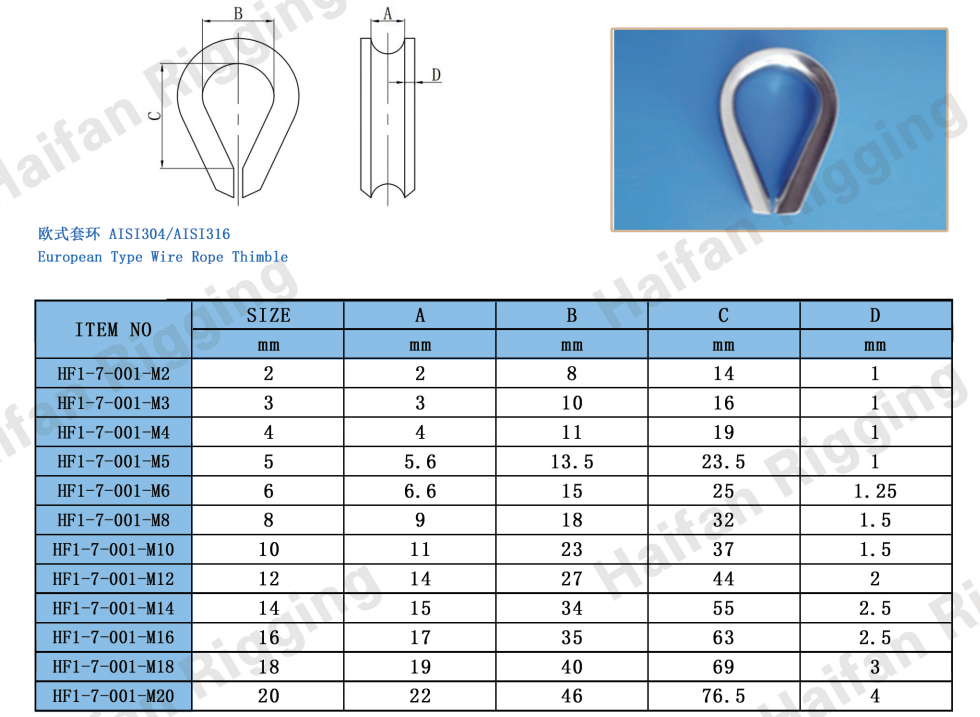

Wire Rope Thimbles-Stainless Steel European Type Wire Rope Thimble
A stainless steel European type wire rope thimble is a protective rigging component used to line the inside loop (or "eye") of a wire rope. It is manufactured specifically to meet European standards .
Its primary purpose is to keep the cable loop from crushing, fraying, or deforming under tension. It accomplishes this by guiding the cable into a natural, gradual curve.
Key Characteristics
European Standard Design: Compared to traditional domestic light-duty or heavy-duty US Type thimbles, European-type thimbles feature a specific geometry, width, and groove depth optimized for European rigging specifications. They generally offer a smooth, uniform channel that tightly hugs metric wire diameters.High-Grade Stainless Steel: Typically cast or stamped from AISI 304 or AISI 316 (Marine Grade) stainless steel. The 316 version offers superior protection against severe saltwater environments, rust, and harsh weather conditions.High-Polished Finish: The smooth, highly polished surface minimizes friction and chafing against both the wire rope itself and the connecting hardware (like shackles, hooks, or pins).
Primary Functions
Prevents Crushing: When a wire rope loop is pulled tightly against a load or anchor point, the rigid steel thimble absorbs the stress so the loop maintains its shape.
Eliminates Abrasion: It isolates the moving wire rope fibers from directly rubbing against hooks, shackles, or eyes, stopping premature wear and fraying.
Extends Service Life: By maintaining the minimum bend radius of the wire rope and distributing loads evenly, it drastically increases the longevity of the cable assembly.
Common Applications
These thimbles are widely used in metric-system setups across the globe for:
Marine Rigging: Sailboat halyards, lifelines, stays, and mooring lines.
Industrial Lifting & Towing: Overhead cranes, slings, and winch lines.
Architectural Cable Systems: Balustrade cables, outdoor catenary lighting, and green-wall vine trellises.
If you are setting up a cable assembly, tell me the diameter of your wire rope and whether it is coated or bare so I can help you determine the exact thimble size you need.
European type thimble
Need one or more European type thimbles? There's a very good chance you'll find it right here at Haifan. Furthermore, it’s well worth taking a look at our lifting shackles, wire rope pullers and other types of fittings whilst you're here too.
European type thimble–adaptable and functional
European type thimbles.Our excellent, European type thimbles are perfect for adding standard commercial wire rope thimbles structure to the loops on everyday wire ropes.Garden projects and landscaping as well as in leisure boating, sculpture work and art installations can all make good use of these thimbles. Please note, commercial thimbles are only made for static requirements and must never be used in any lifting applications as they are not designed to be load bearing.
Made from weather-resistant marine grade stainless steel, they're ideal for use in highly corrosive outdoor environments such as in salty sea air and harsh climatic conditions, as they won't rust or degrade.
Go ahead and order your European type thimbles
Thanks to years of knowledge and experience, at Haifan Rigging, we offer European type thimbles in a handy range of sizes and designs.To place your order with us,all you need to do is fill in our quick online inquiry form here.If you want to get in touch and ask a question,please do not hesitate to inform us. We’ll be happy to offer advice and expertise.
