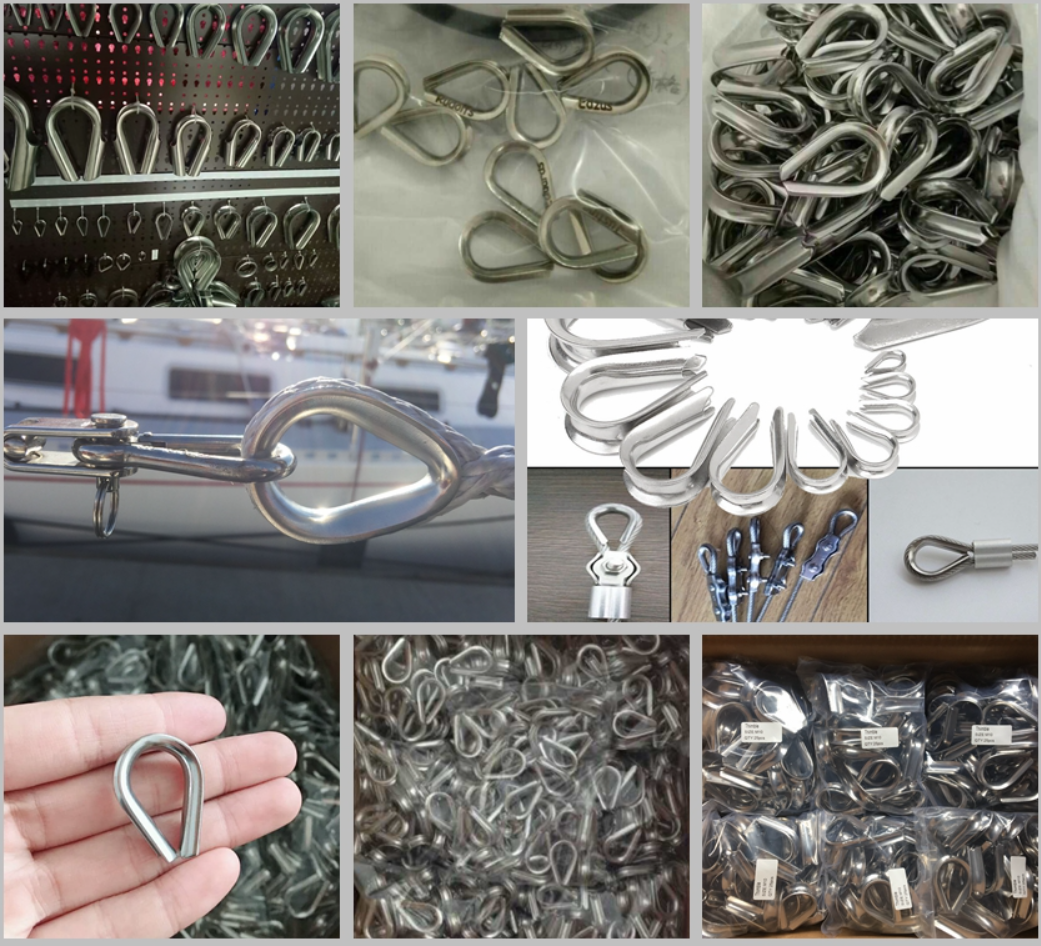

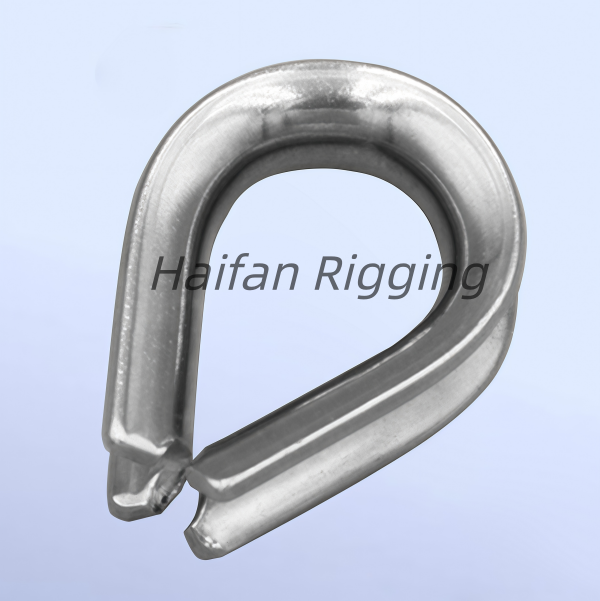

A DIN6899B wire rope thimble is a heavy-duty steel insert used to line and protect the inside loop (or "eye") of a wire rope. It is manufactured strictly according to the German Institute for Standardization (Deutsches Institut für Normung) standard DIN 6899, Type B.Its primary purpose is to keep the cable eye from flattening, bending too sharply, or fraying under heavy tension and demanding workloads.
Key Characteristics
Type B Heavy-Duty Profile: The "Type B" designation indicates a heavy-pattern thimble. Compared to the light-duty DIN 6899A variant, Type B thimbles are stamped from significantly thicker steel sheet metal and feature a much deeper groove channel to cradle the cable.
Metric Sizing: They are sized precisely in millimeters to ensure a flawless, tight fit around metric-diameter wire ropes.
Material: They are for high-corrosion environments, they are manufactured from 304 or 316 marine-grade stainless steel.
Primary Functions
Resists High Crushing Forces: Under heavy lifting or high-tension loads, standard thimbles can buckle or turn inside out. The extra steel thickness of the Type B profile ensures the eye retains its structural shape.
Deep Cable Retention: The deep groove wall prevents the wire rope from slipping or popping out of the side of the thimble during shifting loads or severe vibrations.
Eliminates Chafing: It acts as a rugged shield, preventing direct metal-on-metal friction between the wire rope strands and heavy connecting hardware like crane hooks, master links, or shackles.
Common Applications
Because DIN 6899B thimbles are built for strength and durability, they are the standard choice in European and international metric markets for high-stress applications:
Industrial Lifting & Rigging: Overhead crane slings, hoist lines, and industrial winches.
Maritime & Commercial Fishing: Heavy-duty ship mooring lines, commercial trawl nets, and anchor lines.
Construction & Infrastructure: High-tension guy wires for towers, structural tie-downs, and heavy equipment towing.
If you are planning your rigging setup, let me know the millimeter diameter of your wire rope or the approximate weight load you need to support so I can help you confirm if this heavy-duty thimble is the safest fit.
