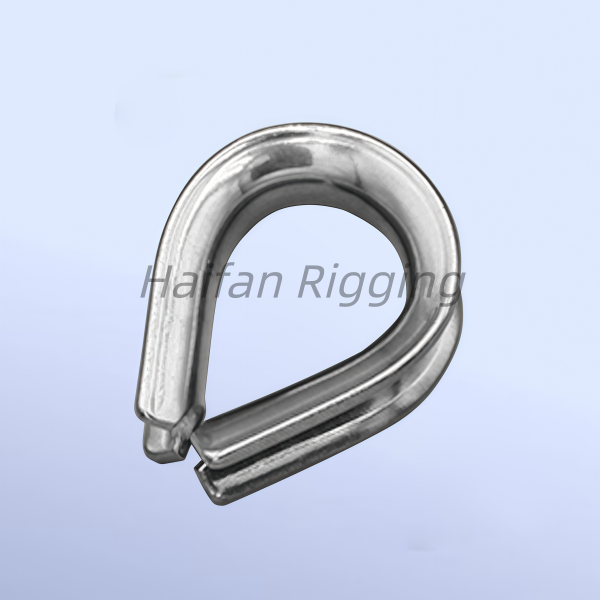

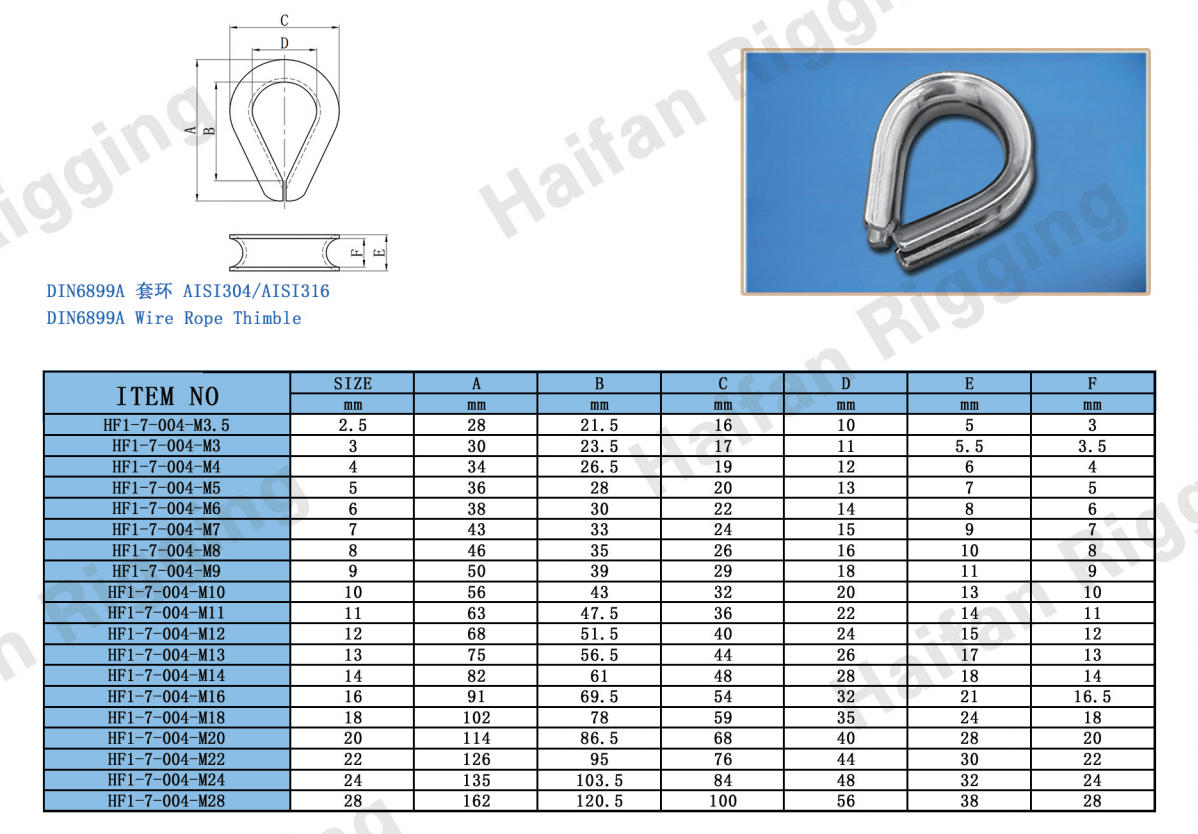

A DIN6899A wire rope thimble is a standard-duty steel insert designed to line, support, and protect the inside loop (or "eye") of a wire rope. It is manufactured strictly according to the German Institute for Standardization (Deutsches Institut für Normung) standard DIN 6899, Type A.
Its primary purpose is to maintain the shape of the cable loop and protect it from crushing, friction, or fraying under standard tension.
Key Characteristics
Type A Geometric Profile: The "Type A" designation indicates a specific dimension profile characterized by a standard thickness and a shallow-to-medium groove depth. It is lighter and thinner than the heavy-duty DIN 6899 Type B variant.
Metric Sizing: Unlike American thimbles measured in inches, DIN 6899A thimbles are sized precisely in millimeters to fit metric-diameter wire ropes perfectly.
Material: They are widely available in 304 or 316 stainless steel for marine environments.
Primary Functions
Prevents Tight Pinches: It keeps the wire rope from bending too sharply around an anchor point, ensuring the steel strands do not kink or fatigue prematurely.
Reduces Friction Chafing: It acts as a smooth buffer between the flexible wire rope and rigid connection hardware, such as shackles, bolts, or turnbuckles.
Preserves Loop Shape: It stops the eye of the rope from collapsing into a flattened shape when tension is applied.

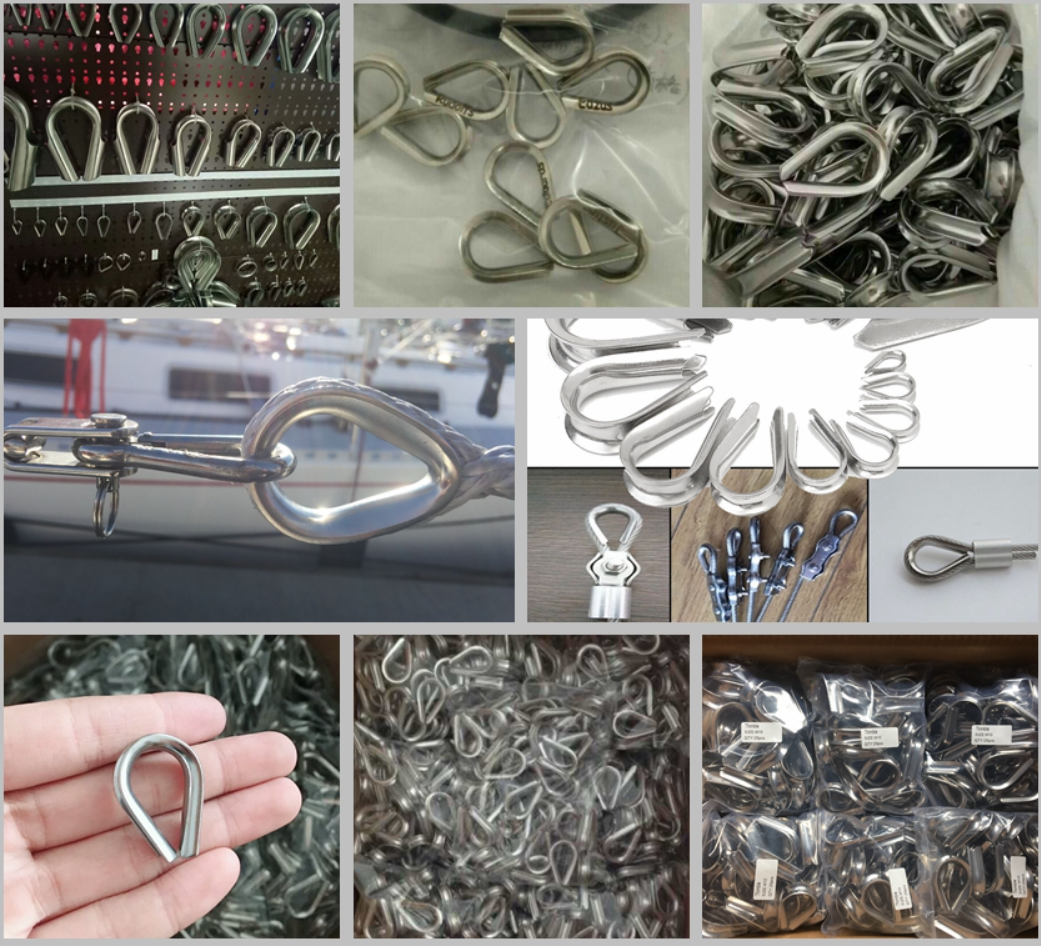

Common Applications
Because DIN 6899A thimbles are built for light-to-medium static loads, they are widely used across Europe and international metric markets for:Light-Duty Rigging: Commercial fencing, greenhouse structural wires, and static guy lines.
Architectural Installations: Cable deck railings, trellis systems for plants, and hanging signage.
Boating & Consumer Goods: Light marine tie-downs, sunshade sail extensions, and sports equipment cables.
If you are choosing hardware for your cable project, let me know the exact millimeter diameter of your wire rope and whether it will face indoor or outdoor weather conditions so I can suggest the right size and material coating.
Go ahead and order your Stainless Steel DIN6899A Wire Rope Thimble.
