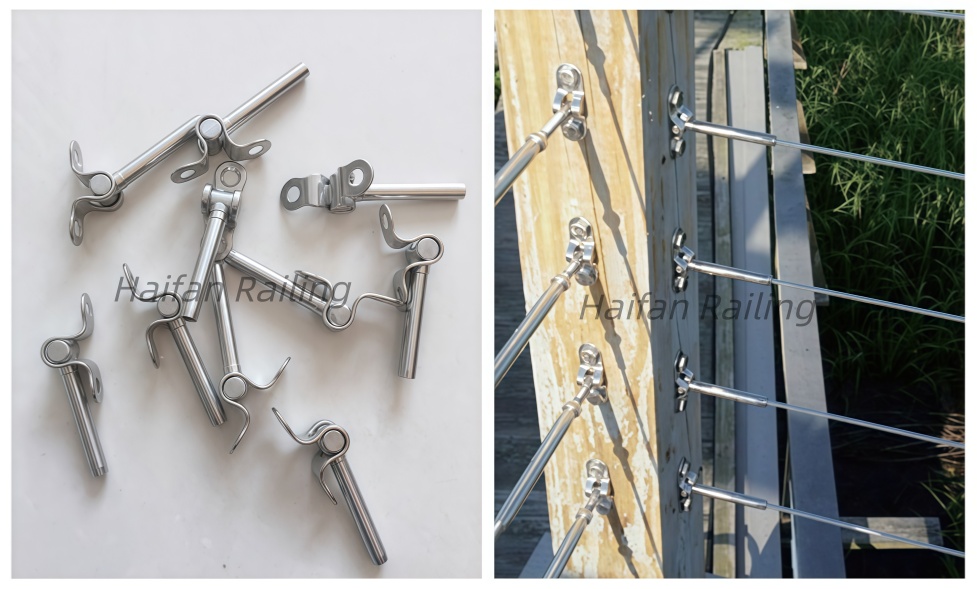

Cable Railing Swage Deck Toggle Terminal
Cable Railing Swage Deck Toggle Terminals are specialized stainless steel anchor fittings designed to mount cable railing systems directly to the surface of a deck, wall, or post. Featuring a built-in pivoting joint, they automatically adjust to the pitch of stairs, ramps, and angled runs, making them an industry standard for multi-level decking and complex architectural layouts.
Core Technical Overview

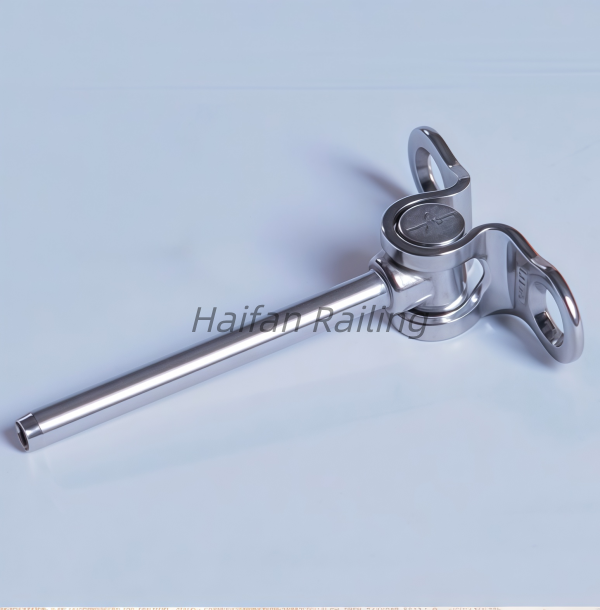

Pivoting Articulation: The articulating toggle mechanism can typically pivot up to 135 degrees, allowing a single part to transition smoothly from flat, level layouts directly into steep stair inclines.
Marine-Grade Material: Most premium terminals are forged from T316 Stainless Steel. This material provides superior corrosion protection against saltwater, harsh weather, and coastal climates compared to standard galvanized steel.
Connection Profile: These are "swage" fittings, meaning the hollow barrel end must be compressed tightly around the steel wire rope using a hydraulic or manual hand-crimping too.
Installation & System Integration
A standard setup utilizes a surface-mount pad eye base anchored by two structural fasteners (typically 1/4" x 1.5" stainless hex head lag screws). Because these terminals act purely as fixed anchors (dead ends), they must be paired with a tensioning fitting at the opposite end of the wire run, such as a Deck Toggle Turnbuckle, to pull the cable taut and prevent sagging.
If you are planning out a railing project, tell us:
What is your post material (wood, aluminum, or steel)?
What is the total length and number of stair runs you need to cover?Do you prefer a diy hand-swaged setup or a pre-crimped swageless option?
We can help calculate the exact component list and spacing you will need to meet local building codes.
