Cable Railing Hardware Jaw Swage Terminal

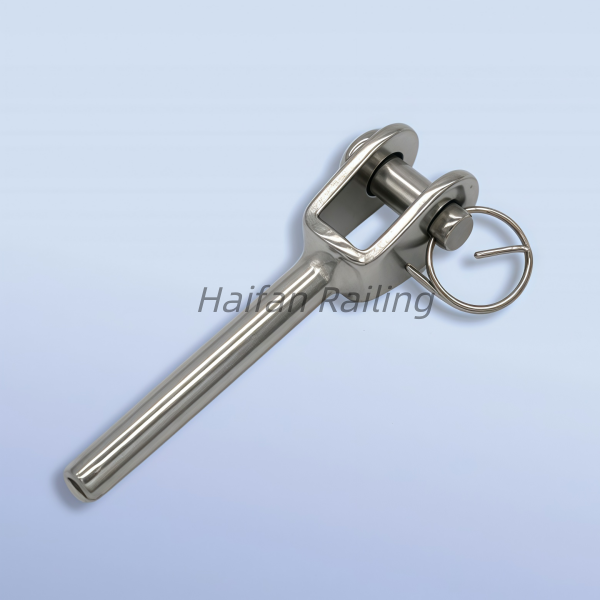

Cable railing jaw swage terminal is a metal end fitting that connects wire rope to an anchor point using a clevis pin, securing via a swage (crimp) connection. Commonly made from marine-grade T316 stainless steel, it fits standard 1/8-inch or 3/16-inch wire diameters for indoor or outdoor decks and stairs.
Key Features and Uses
Material: Marine-grade T316 stainless steel prevents rust and weather damage.
Design: Includes a U-shaped jaw (clevis) with a removable pin to attach easily to eye bolts, tabs, or post anchors.
Compatibility: Works with 1/8" and 3/16" stainless steel cables (typically 1x19, 7x7, or 7x19 strand).
Installation Steps
Measure and Cut: Measure the distance between your end posts and cut the metal cable to size.
Swage the Fitting: Insert the bare wire end fully into the hollow tube of the terminal. Use a manual hand swager tool or hydraulic crimper to compress the metal tube tightly onto the cable.
Attach to Post: Remove the small pin from the jaw, place the jaw over your post's anchor tab or eye bolt, and slide the pin back through to lock it in place.
If you're planning a project, tell us:
Are your posts wood or metal?
What is the cable size (1/8" or 3/16")?
We can help you find the right parts or installation steps.
Haifan Railing offer a wide variety of parts for cable railing systems to contractors and home-owners alike.
You'll find all the right fittings for your custom cable railing projects here!
Why Choose Us?
Haifan Railing has helped millions of families with their cable railing projects during the past years.
We believe that home renovation should be easy and affordable.
So we work with every effort to provide quality products and professional service, to make Haifan a reliable brand.
If you are looking into architectural hardware or planning a DIY build, would you like to know what size steel cable this typically accommodates, or do you need a recommendation on the proper crimping tools required for installation?
