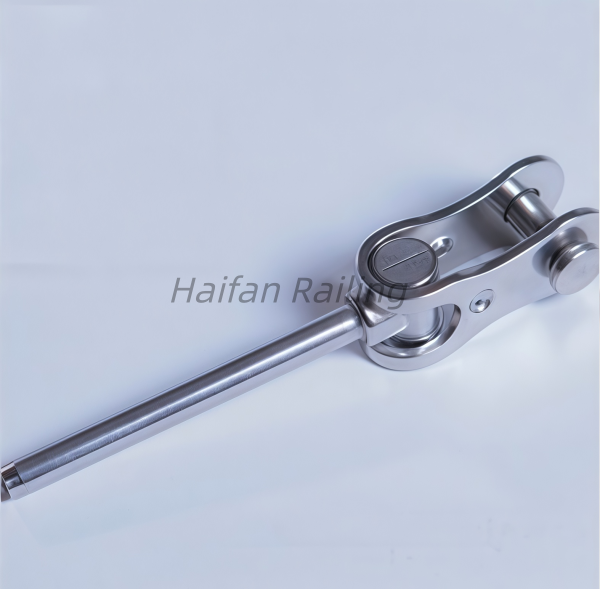

Swage Jaw Toggle Terminals are specialized marine-grade stainless steel fittings used to terminate cable railing strands on staircases, angled runs, or flat surfaces. Their defining feature is an articulating jaw that pivots freely, automatically aligning to the pitch of stairs and preventing side-loading stress on the cable.
Essential Product Options
Jaw Toggle Terminal
Standout feature: Features a 1/4" pin support to secure the jaw to eyelets, tabs, or wood posts with eyes.
Material & Use: Built from 316 stainless steel for maximum corrosion resistance in indoor and outdoor settings.
Installation: Requires a machine swage tool to compress the terminal sleeve permanently onto the wire rope.
Key Installation Tips
Tensioning Balance: Toggle terminals act as a fixed ending point; you must use a tensioning fitting (like a jaw turnbuckle) on the opposite side of the run.
Avoid Hand-Crimping: Unlike standard hand-swage studs, these structural jaw terminals rely on high-pressure machine swaging to safely meet rated cable breaking strengths.
Spacing Rules: To keep your framework safe and code-compliant, ensure your cable runs do not exceed a vertical spacing threshold of 3 inches apart.
If you are planning your layout, please let us know:
What post material are you mounting to? (Wood, metal, or sleeved posts?)
What is the total distance of your longest single cable run?
Do you prefer invisible hardware hidden inside the post, or surface-mounted hardware?
We can map out a full hardware kit checklist tailored to your project.

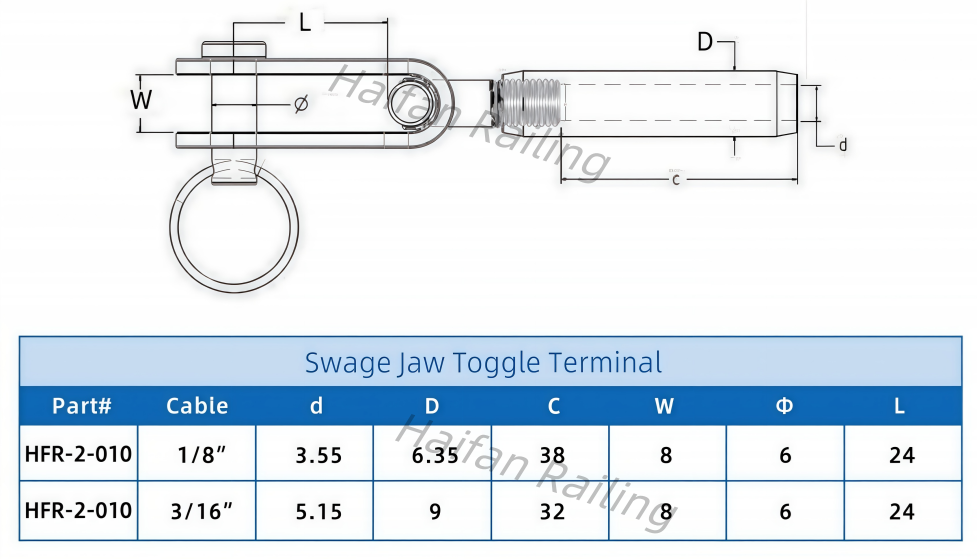

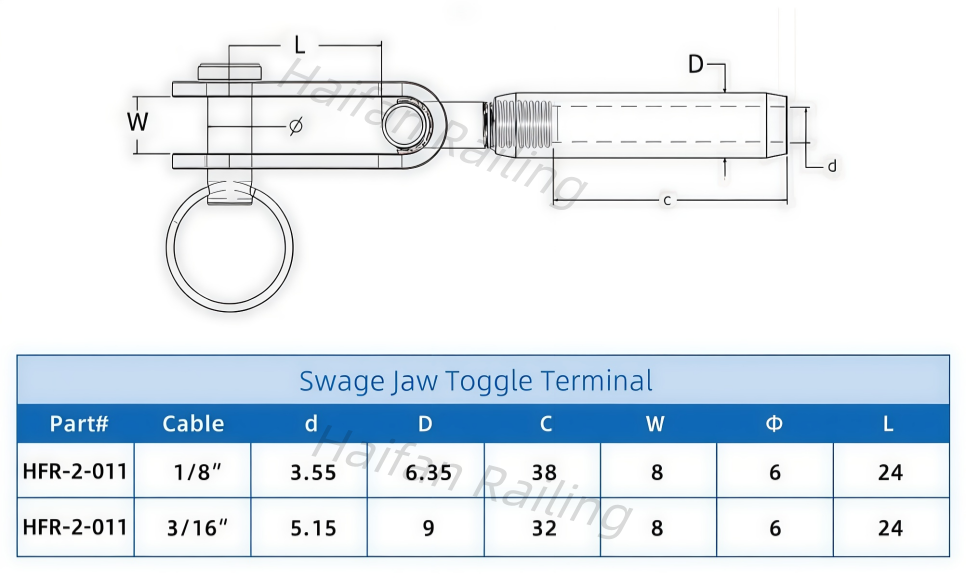

Get ordering your Cable Railing Hardware Swage T Toggle Terminal for 1/8'' and 3/16'' Cable.
Haifan Rigging supply a range of cable railing accessories.They come with a variety of fittings for each end to suit your particular application.
So you can find all the right fittings for your custom cable railing projects here!
Why Choose Us?
Haifan Railing has helped millions of families with their cable railing projects during the past years.
We believe that home renovation should be easy and affordable.
So we work with every effort to provide quality products and professional service, to make Haifan a reliable brand.
If you are looking into architectural hardware or planning a DIY build, would you like to know what size steel cable this typically accommodates, or do you need a recommendation on the proper crimping tools required for installation?
Like https://www.haifan-rigging.com/cable-railing-hardware/ or https://www.haifanrailing.com/
We look forward to hearing from you!
