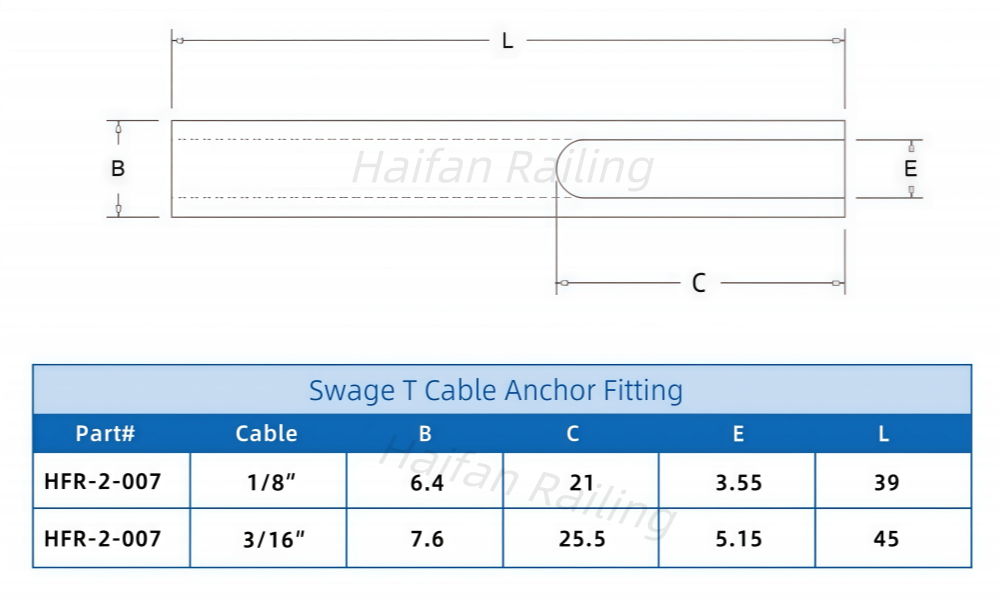

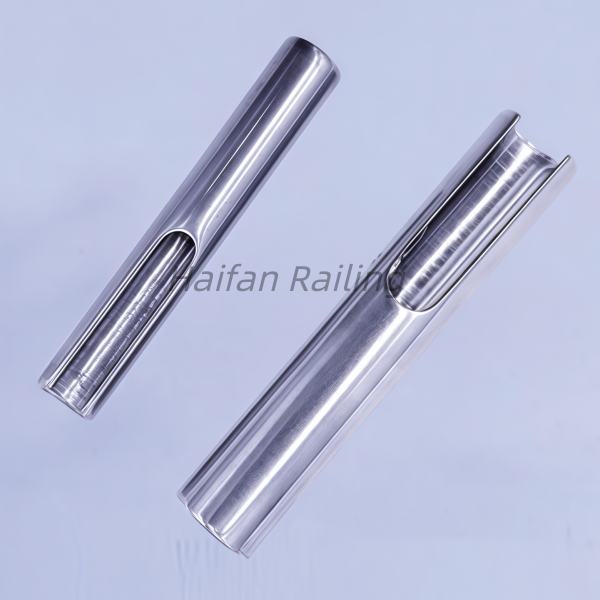

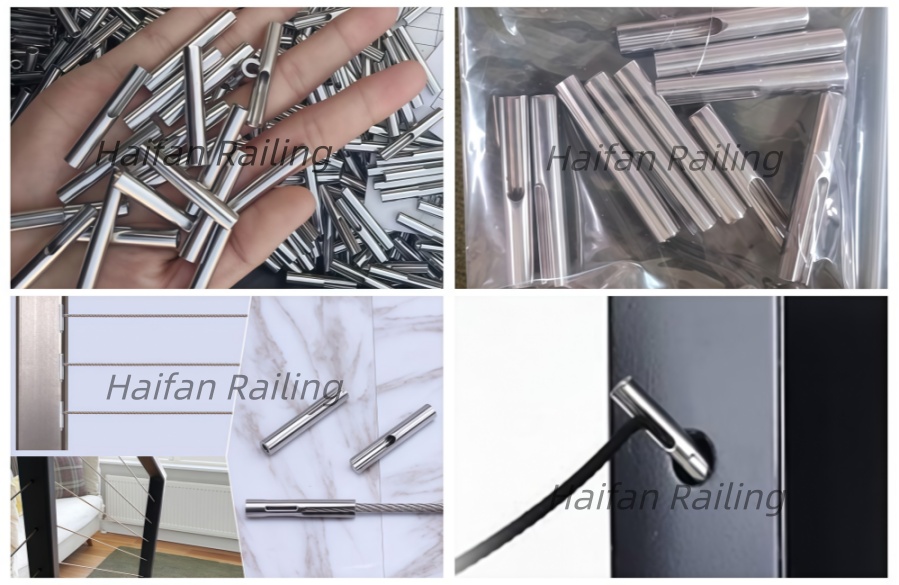

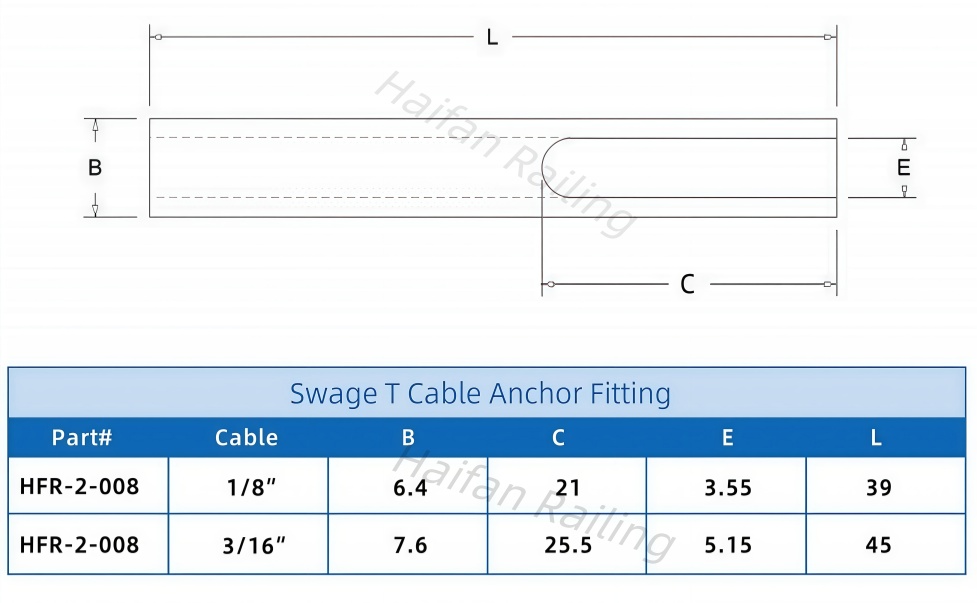

Our Swage T Anchor Fitting is designed to be hidden inside metal posts. They are ideal for the top or bottom of stair runs or posts that are atthe end of a railing that you might see. Because it hides entirely inside the end post, creating a clean, minimalistic profile with no visible external nuts or washers. It is highly favored by architects and DIYers. They give a clean look for end posts because they only go in one side ofthe post.They do not go all the way through the post. because it hides entirely inside the end post, creating a clean, minimalistic profile with no visible external nuts or washers.
How the System Works
Because a Swage T Fitting is a fixed, non-tensioning terminal, it cannot tighten the cable by itself. To build a functional railing, it must always be paired with a tensioning hardware piece on the exact opposite side of the cable run:
Fixed End: Swage T Anchor Fitting (hidden inside Post A).
Tensioning End: A Swage Threaded Terminal, Hex Head Tensioner, or Hidden Thread Tensioner (inside Post B).
Installation Steps
Insert & Swage: Push your raw cable end fully into the hollow cylinder barrel of the T-anchor. Use a hydraulic or hand-swaging crimping tool to permanently compress (crimp) the metal around the cable.
Angle Adjustment: If using the cable for a stair run, slightly bend the cable right at the exit point of the fitting barrel to accommodate the stairs' pitch.
Feed & Click: Feed the unattached side of the cable all the way through your intermediate posts. Push the T-anchor into the pre-drilled hole of your starting end post until the "T" head catches the internal wall.
Tension: Move to the opposite end post and pull the cable taut using your chosen threaded tensioner tool.
To help narrow down exactly what hardware packs you need, please let me know:
What is your post material (e.g., steel, aluminum, or wood)?
What cable thickness are you installing (1/8" or 3/16")?
Is this for a straight level deck or a pitched staircase?
