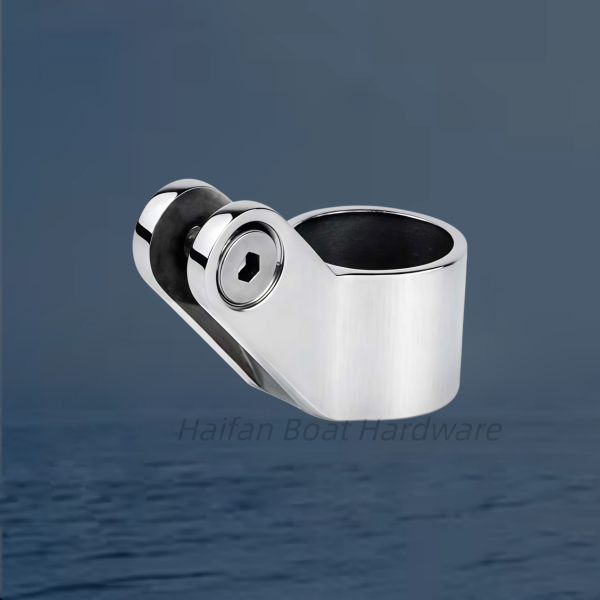

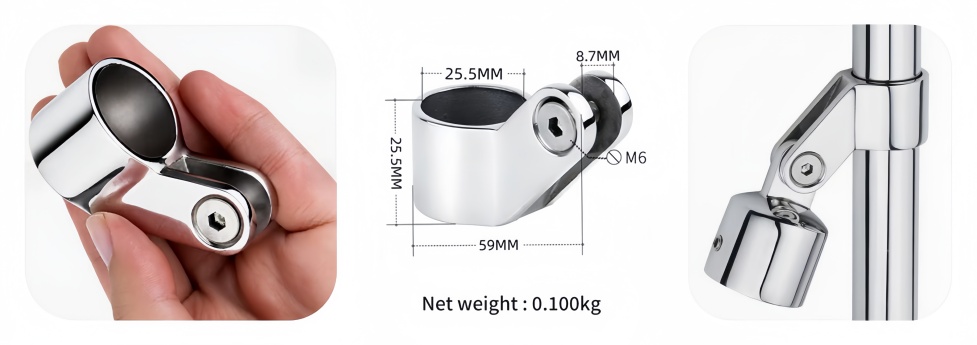

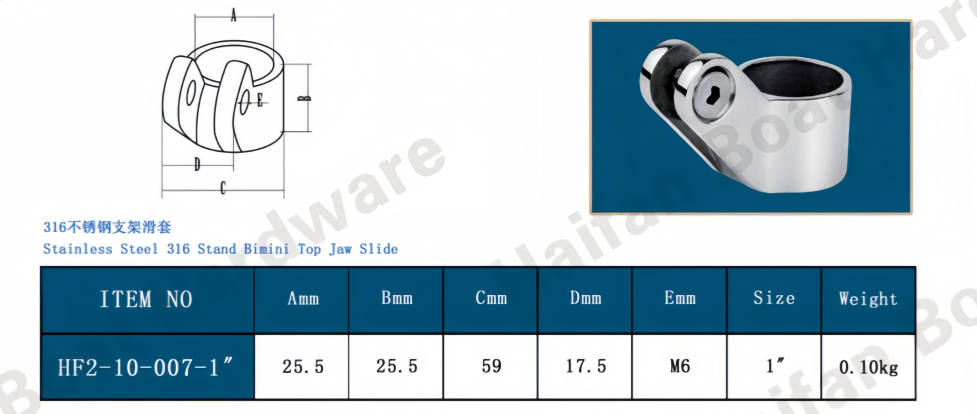

Standard Solid-Sleeve Bimini Top Jaw Slide (commonly referred to as a top slide or tube slide).Unlike previous models with double locking set screws on the collar, this standard version relies entirely on the pressure of the intersecting support pole or its own internal friction to hold position, presenting a smoother, completely snag-free outer profile.
Core Differences From Double-Screw Models
Snag-Free Casing: The outer sleeve wall is completely smooth with no protruding set screws. This prevents bimini canvas, fishing lines, or life jackets from catching on the hardware.
Slide-On Mounting: It must be slid onto the frame tubing from an open end before final eye-end caps are riveted or screwed into place.
Friction Lock: It relies on a tight tolerance match with the tubing and the tension of the intersecting support bow to minimize frame migration.
Installation Best Practices
1,Apply Isolating Lubricant: Always coat the main hex-head bolt threads with a marine anti-seize compound (like Tef-Gel) to stop stainless-on-stainless thread galling.
2,Verify Tubing Dimension: Double-check your rail size with calipers. A standard 1" jaw slide will rattle heavily and slide freely if accidentally mounted on a 7/8" frame tube.
Are you looking to pair this slide with a standard eye-end fitting, or do you need to source a specific allen key wrench size to tighten the main cross-bolt?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
