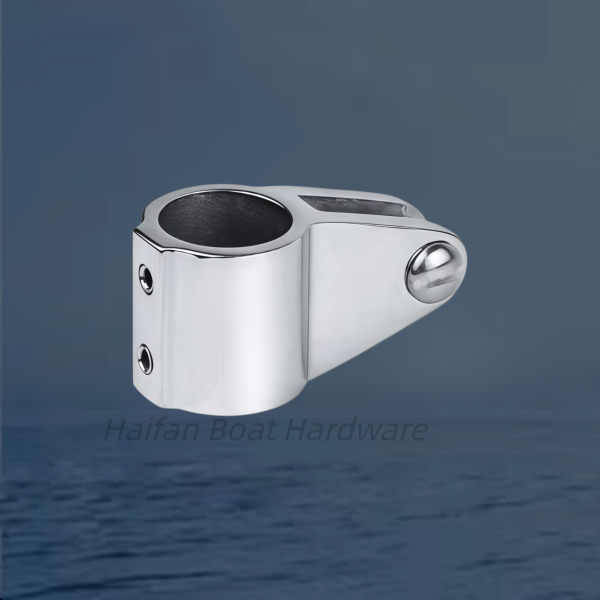

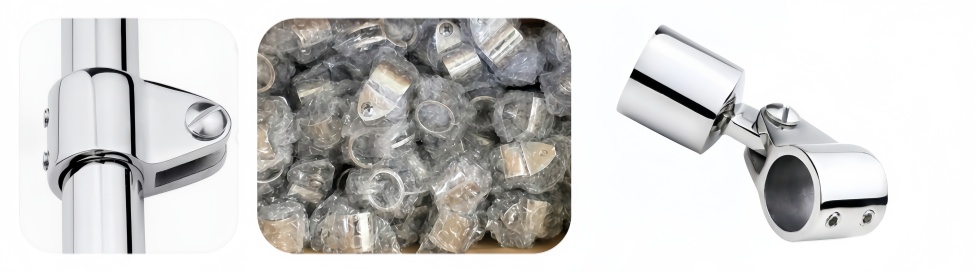

This Heavy-Duty Boat Bimini Top Jaw Slide with Double Set Screws is designed for high-stress marine applications where standard single-screw slides fail or slide out of position.The heavy-wall, investment-cast construction ensures maximum structural integrity, while the dual cone-point set screws grip the frame at two distinct points to eliminate twisting and sliding under heavy wind loads or high-speed cruising.

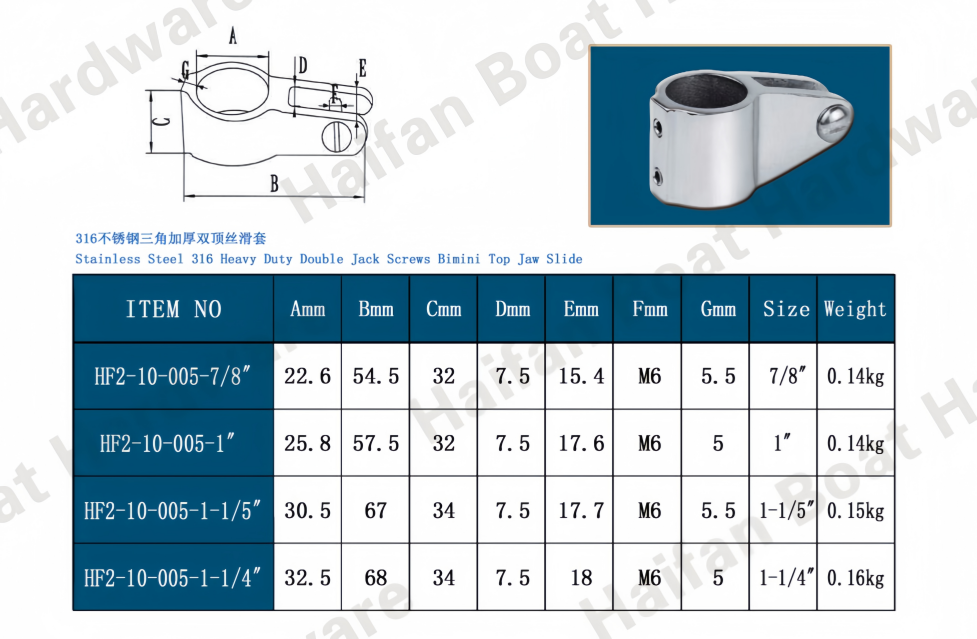

Hardware Specifications
Material: Investment-Cast 316 Marine Grade Stainless Steel (resists pitting and tea-staining in saltwater).
Fixation Type: Double Hex/Allen Cone-Point Set Screws.
Mounting Style: Solid Sleeve / Closed Loop (must slide onto open tubing ends during frame assembly).
Connection Bolt: Standard 1/4" machine bolt with a nylon-locking nut or low-profile head.
Are you matching this slide to 7/8" or 1" tubing, and do you need the corresponding allen key size requirements for installation?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
