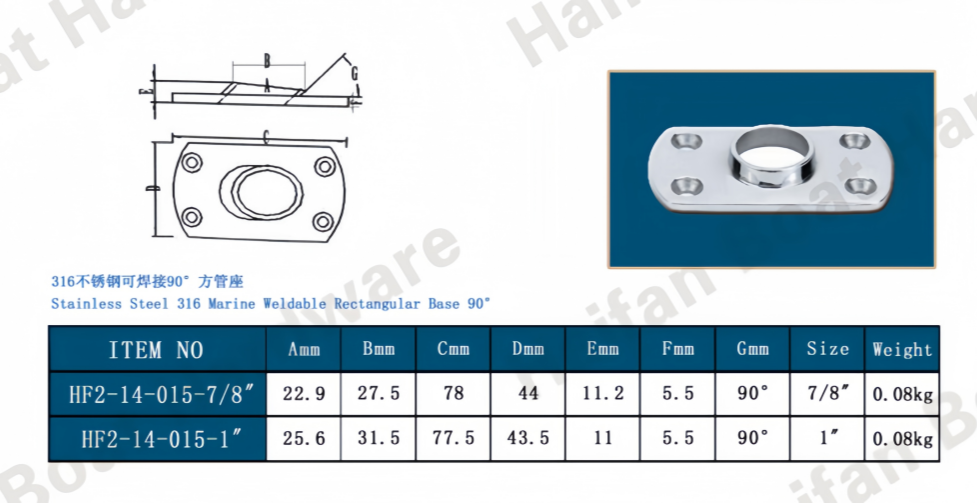

A marine weldable rectangular rail base (90°) is a structural deck fitting designed for a permanent, perpendicular connection between a boat deck and vertical tubing. Unlike mechanical fittings that rely on set screws, a weldable base features a smooth socket sleeve intended for TIG welding. This eliminates unappealing grub screws, creating a completely seamless, rock-solid joint with maximum torsional rigidity while removing water-trapping threads where hidden crevice corrosion usually develops.
Key Technical Specs
Material: Investment cast from 316 Marine Grade Stainless Steel, containing molybdenum to offer superior resistance against pitting and crevice corrosion in harsh saltwater conditions.
Angle Profile: Holds vertical stanchions, handrails, grab bars, or custom T-top structures completely upright at a 90-degree angle relative to the flat mounting surface.
Weld Sleeve Design: Engineered with precise wall tolerances and a unthreaded inner socket, allowing fabricators to lay a clean weld bead around the tubing perimeter without obstructing the deck screw paths.

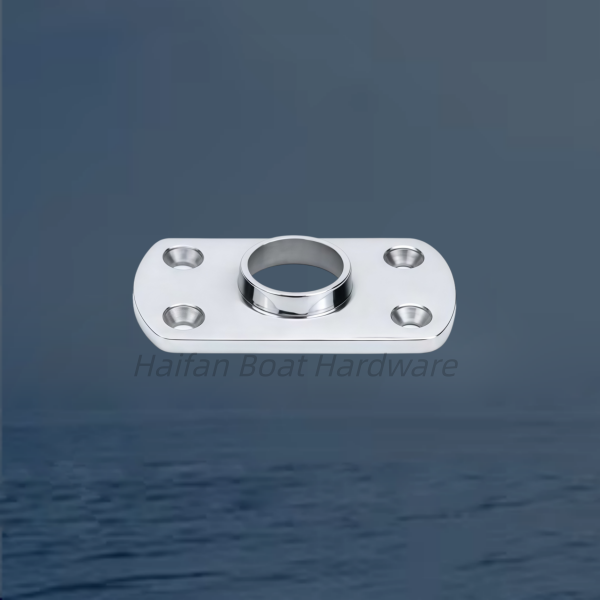

Mounting Flange Layout: Features a traditional 4-hole rectangular base plate with machine-countersunk fastener paths so flat head (FH) screws sit perfectly flush against the polished flange.
Practical Fabrication Advice
1,Prevent Oxidation ("Sugaring"): When executing your TIG weld around the outer collar of the base, always back-purge the internal rail tubing with Argon gas. This stops the steel from burning inside the tube where saltwater condensation can settle and weaken the structural root.
2,Heat Sink Protection: Because the rectangular mounting plate sits close to the welding socket, use temporary copper backing blocks or a damp heat-absorbent paste on the polished base face. This protects the mirror finish from heat tinting and weld spatter.
Are you fabricating a completely new custom T-top frame or replacing a broken factory stanchion? If you provide the material of your deck (e.g., cored fiberglass, aluminum, or marine plywood), We can recommend the proper backing plates and isolation steps to ensure a completely leak-free, heavy-duty mount.
