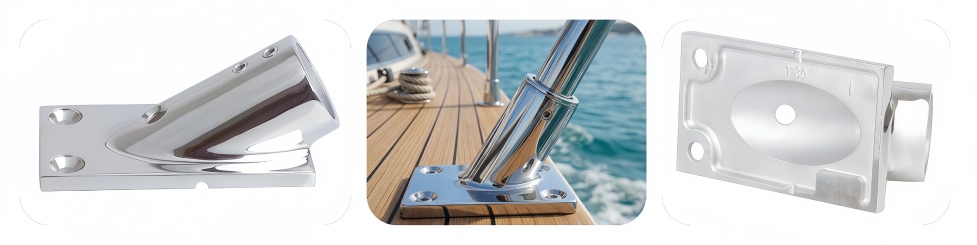

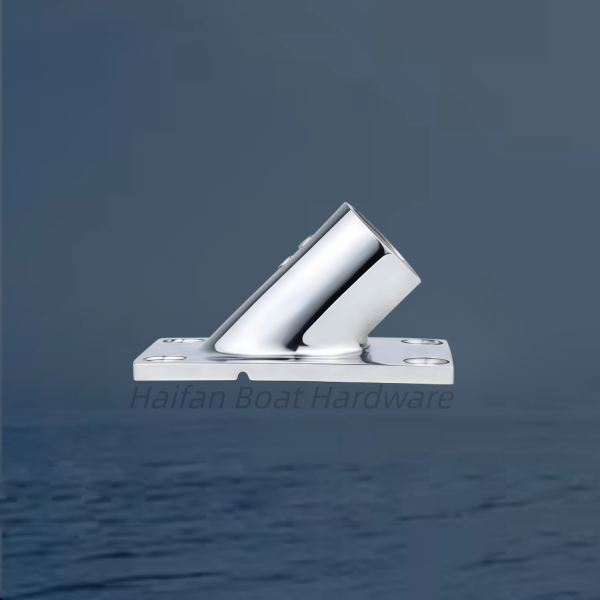

A marine rectangular rail base (45°) is a structural deck fitting designed to mount boat handrails, bow rails, stanchions, or solar panel frames at a distinct 45-degree angle.

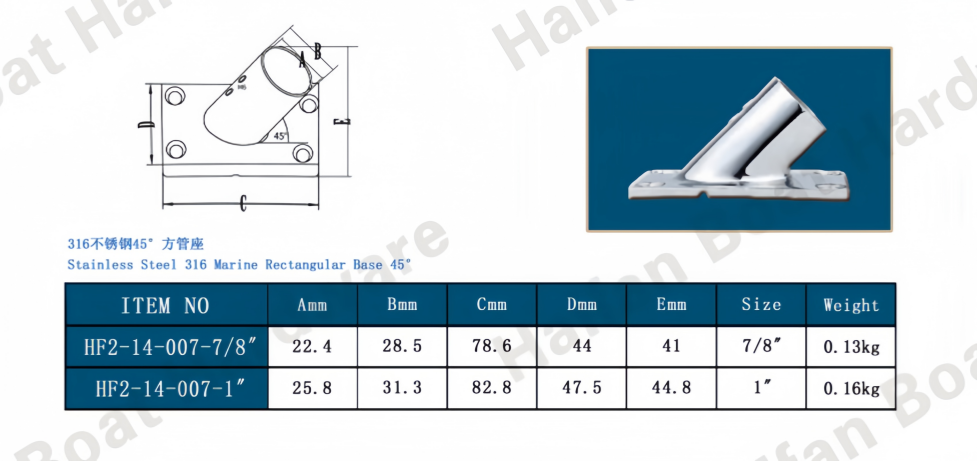

Key Technical Specs
Material: Cast from high-grade 316 Stainless Steel for supreme protection against pitting and crevice corrosion in salt water.
Tubing Compatibility: Universally sized to accept standard 7/8" OD or 1" OD marine metal tubing.
Fastener Mounts: Standard configurations use a 4-hole layout for countersunk flat head screws to provide flush, snag-free surfaces.
Tubing Security: Employs dual internal set screws (grub screws) that bite tightly into the inserted tube to prevent twisting or sliding.
Are you planning to mount this on a flat deck surface or along a curved gunwale edge? If you share your existing bolt hole spacing, We can verify which brand matches up perfectly.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
