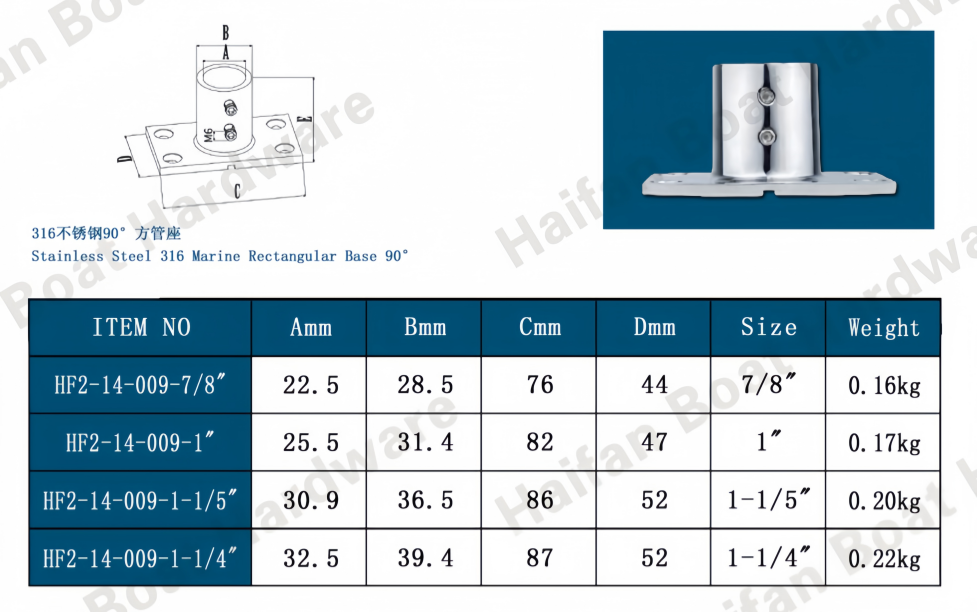

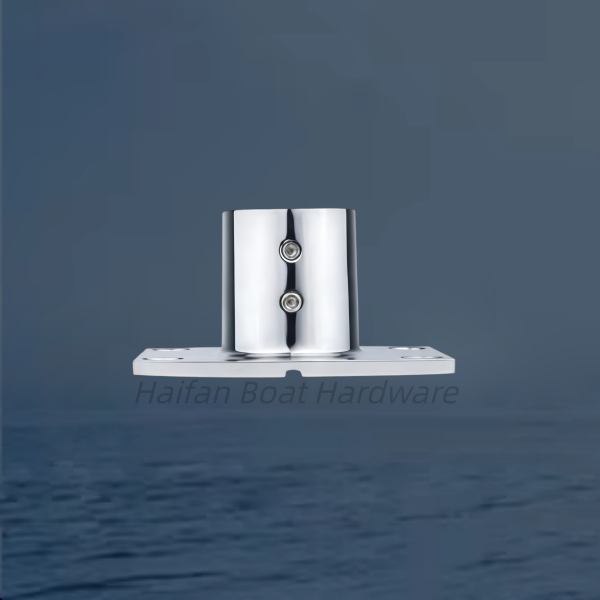

A marine rectangular rail base (90°) is a perpendicular deck fitting used to mount vertical stanchions, handrails, grab bars, and T-top frames completely upright and straight at a 90-degree angle to the boat's mounting surface.
Key Technical Specs
Material: Built from investment cast 316 Stainless Steel to maximize rust prevention and tensile strength in extreme marine environments.
Tubing Sizes: Universally designed to accept 7/8" OD or 1" OD marine-grade stainless tubing with a standard 0.049" wall thickness.
Tubing Attachment: Features two internal Allen set screws positioned at a 90-degree offset to bite into the tube and eliminate twisting.
Base Plate Profile: Rectangular footprint with a 2-hole or 4-hole mounting pattern using countersunk holes for flat head (FH) fasteners.
Are you looking to install this base into fiberglass or aluminum/metal? If you tell us your mounting surface material, we can provide the proper backing block or fastener recommendations to prevent deck flexing under heavy loads.
