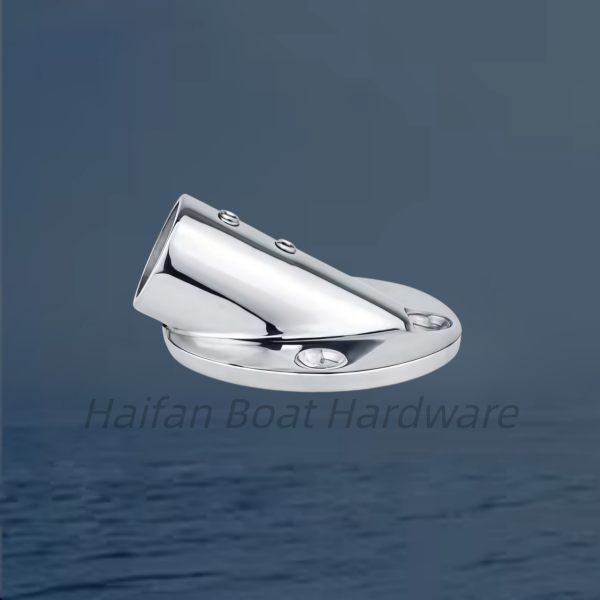

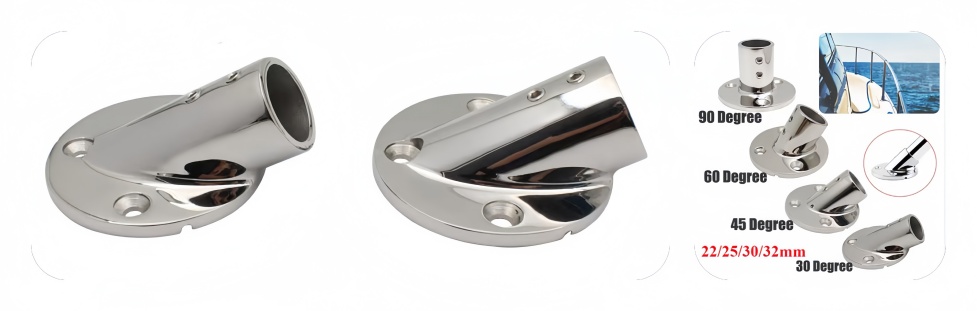

A Marine Round Rail Base 30° is a heavy-duty hardware component used on boats and yachts to secure angled stanchions, handrails, Bimini tops, or bow rails to the deck or gunwale.

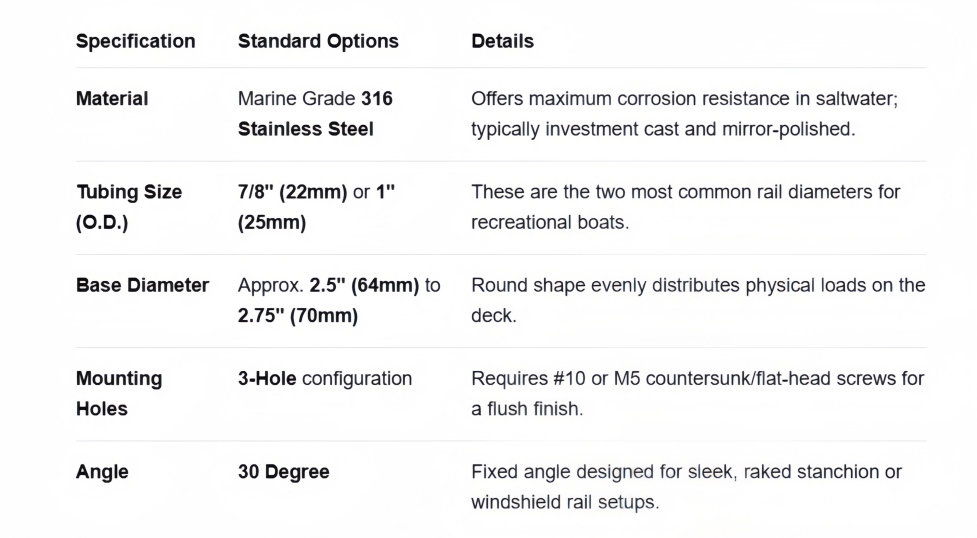

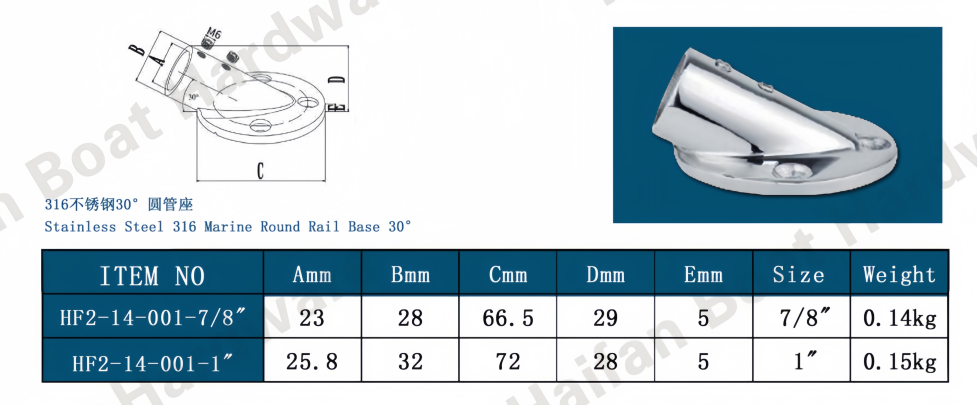

Technical SpecificationsThese bases are highly standardized in the marine industry. You will need to verify these key dimensions before purchasing:
Installation & Buying Tips
Measure the Tubing precisely: Do not guess between 7/8" and 1" tubing, as they look very similar. Use a caliper to measure the outside diameter (O.D.) of your existing rail.
Use Threadlocker: The base contains internal hex set screws to clamp the stainless tubing. Due to constant engine vibration and wave impact, apply a medium-strength threadlocker (e.g., Loctite 242) to prevent them from backing out.
Marine Sealant is Mandatory: When screwing the base into fiberglass or wood deck cores, always apply a marine-grade bedding compound (like 3M 4000UV or 5200) to the bottom and inside the screw holes to prevent water intrusion and deck rot.
To help you find the exact part, please let me know:
What is your rail's outside diameter (7/8" or 1")?
Do you need assistance finding where to purchase this item online?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
