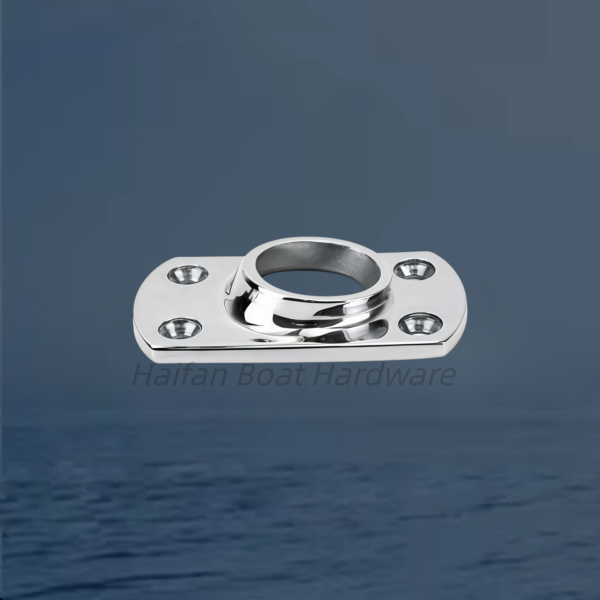

A marine weldable rectangular rail base (60°) is a premium structural deck hardware fitting engineered for custom boat fabricators. Unlike standard standard mechanical bases that rely on unappealing grub screws, a weldable base features a smooth, unthreaded socket pocket intended for a permanent, structural TIG weld directly to stainless steel rail tubing. This permanent joint provides maximum torsional rigidity and eliminates water-trapping threads where hidden crevice corrosion usually develops.

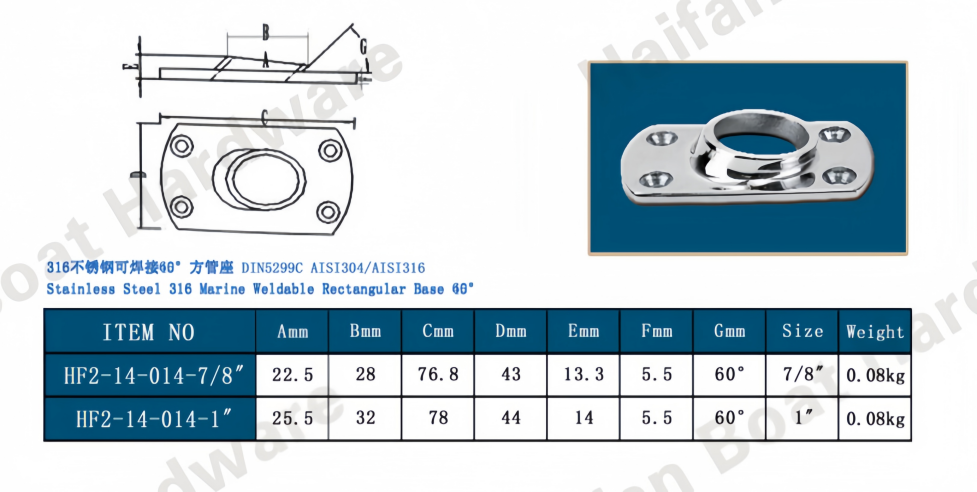

Key Technical Specs
Material: Standard models are investment cast from 316 Marine Grade Stainless Steel to handle continuous saltwater exposure and survive the intense localized heat of TIG welding.
Angle Profile: Securely holds handrails, bow pulpits, or specialized structural frames at a fixed 60-degree angle relative to the deck or mounting surface.
Weld Design: The unthreaded inner sleeve is cast with precise wall tolerances, allowing the fabricator to lay down a clean weld bead around the tubing perimeter without interfering with the deck screw holes.
Mount Layout: Features a traditional 4-hole rectangular pattern with countersunk fastener paths. This configuration allows flat head (FH) fasteners to sit flush with the polished base flange to eliminate snags.
Practical Fabrication Advice
1,Back-Purge Your Tubing: While executing the TIG weld around the outer base collar, back-purge the internal rail tubing with Argon gas. This step stops structural oxidation ("sugaring") on the inner walls where moisture easily gathers.
2,Protect the Mirror Finish: Wrap premium heat-resistant welding tape or high-density leather shields around the pre-polished face of the base before striking your arc to avoid marring the surface finish with stray weld spatter.
Are you building a completely custom railing system from scratch, or are you repairing a damaged factory bow rail? If you share the material details of your boat's deck (such as cored fiberglass or marine-grade aluminum), We can recommend the proper backing plates and isolation steps to ensure a completely rock-solid mount.
