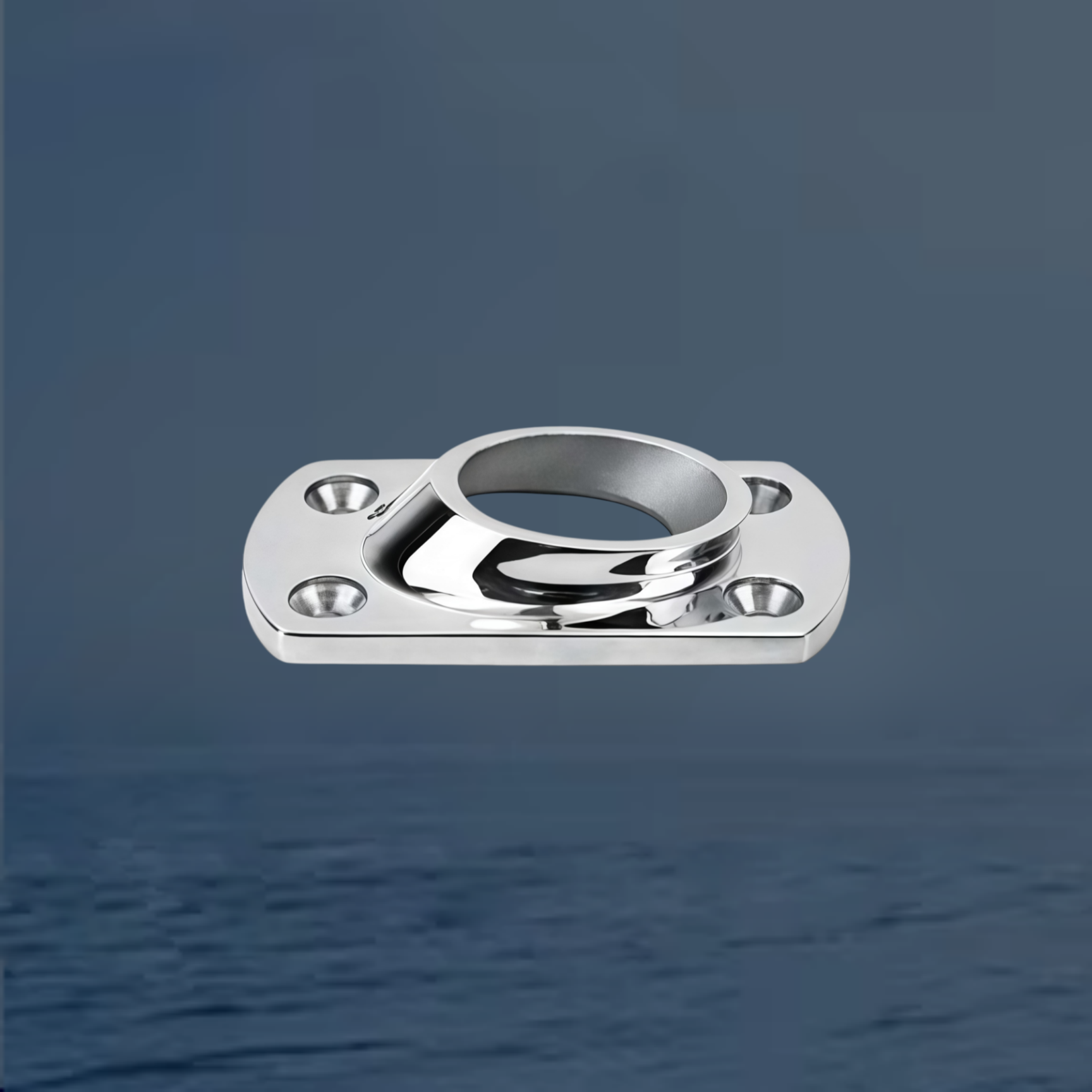

A marine weldable rectangular rail base (45°) represents the ultimate option for structural boat fabricators. Instead of standard mechanical bases that rely on visible set screws, a weldable rectangular base features an entirely flush, unthreaded inner collar collar designed to be permanently TIG welded directly to stainless steel rail tubing. This permanent joint provides maximum torsional rigidity and eliminates water-trapping threads where hidden crevice corrosion usually develops.

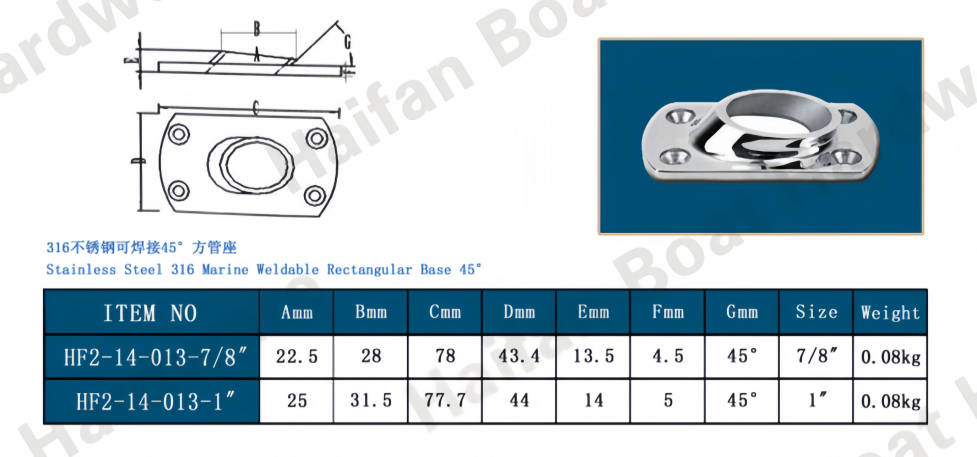

Key Technical Specs
Material: Premium Investment Cast 316 Marine Grade Stainless Steel to avoid rust and survive the intense localized heat of TIG welding.
Angle Geometry: Holds bow pulpits, grab bars, stanchions, or solar panel frames at a permanent 45-degree angle relative to your flat deck profile.
Weld Pocket Design: Constructed with exact wall tolerances and subtle chamfers inside the pocket collar, letting you deposit a tight, seamless weld bead around the tube base without running into your mounting screws.
Mounting Flange Layout: Typically uses a 4-hole rectangular pattern with machine-countersunk screw paths, accommodating flat head (FH) fasteners so they sit completely flush against the polished base flange.
Are you building a completely new custom rail system, or are you cutting out and replacing damaged factory stanchion bases? If you share details about your deck structure (such as cored fiberglass or marine-grade aluminum), we can recommend the proper backing plates and isolation steps to keep your deck rock-solid.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
