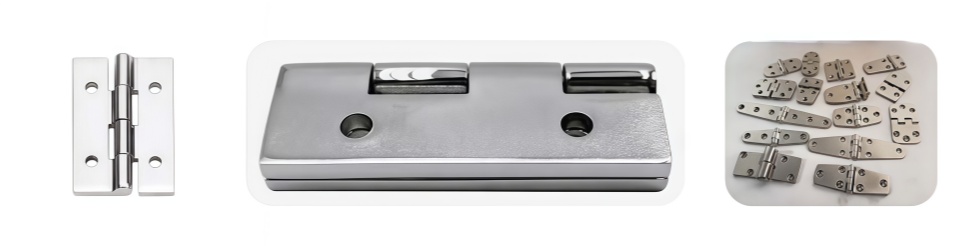

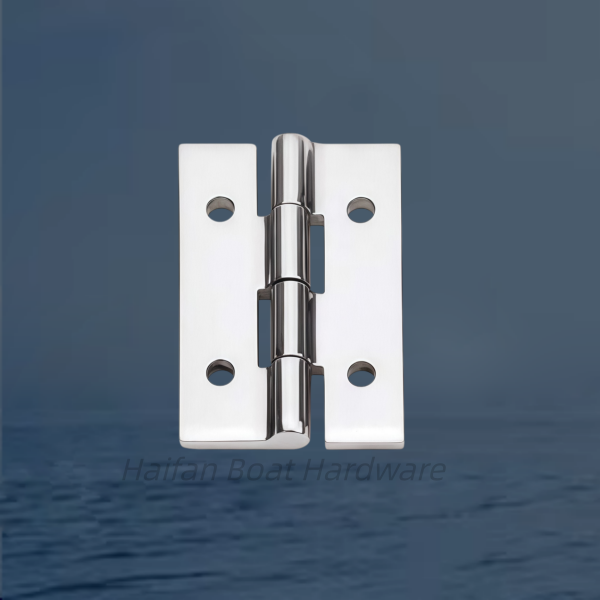

Heavy-Duty Marine-Grade Lift-Off Hinge (also widely referred to as a take-apart hinge or loose-joint butt hinge).
Unlike standard door hinges that have a permanent center pin, this specific hardware layout features a two-piece modular design. The center barrel is split unevenly, which allows one leaf to slip completely off the pin of the opposing leaf.
Design & Structural Overview
Quick Removability: This style allows you to lift a boat hatch, engine cover, or cabinet door completely away from its frame without removing any mounting screws.
Solid Casting Thickness: It is constructed from thick investment cast 316 stainless steel rather than stamped metal sheet, providing strong resistance to flexing or alignment bending.
Countersunk Screw Layout: It contains four heavy-set screw holes designed with angled interior lips. This allows flat-head fasteners to sit completely flush against the metal faceplates.
Saltwater Defense: The surface is buffed to a high mirror-polish finish, which seals out salt water to prevent rust, corrosion, and micro-pitting.
Because these hinges are strictly directional, you need to purchase the correct orientation for your panel setup. If you need help choosing a replacement, let us know:
Does your hatch/door lift away when pulling it toward the left or toward the right?
What are the overall width and height measurements of your current hinge?
