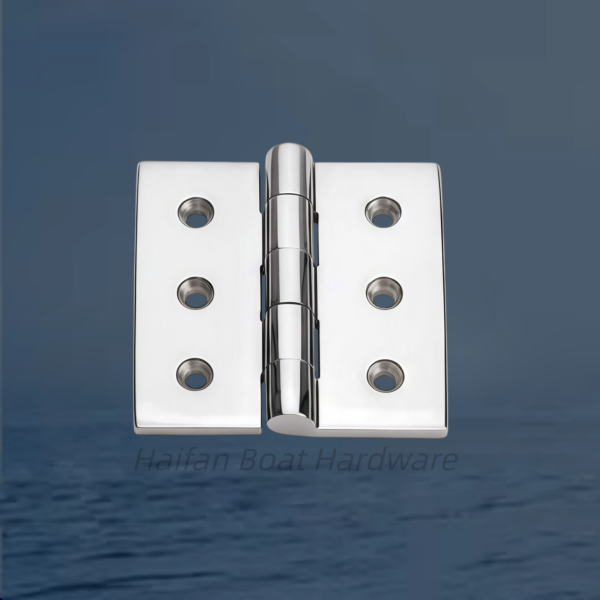

This is an investment commonly featuring 4-hole or 6-hole load-bearing layouts depending on its exact leaf length.
Unlike stamped sheet metal alternatives, this hardware utilizes a precision solid-mold manufacturing process. The elongated, tapered strap arms are engineered specifically to disperse leverage stress across wide mounting areas.
Solid Cast Core: Built through an investment casting process, the heavy-duty thickness prevents flexing or twisting when subjected to intense hull vibration or hefty cabin door weights.
Deep Countersunk Holes: The holes feature angled inner edges so that matching flat-head mounting screws sit completely flush. This prevents clothing, ropes, or gear from catching on the surface.
Mirror Polished 316 Stainless: Constructed using high-grade 316 marine stainless steel and polished to a mirror finish, it offers superior resistance to micro-pitting and rust in unforgiving saltwater environments.

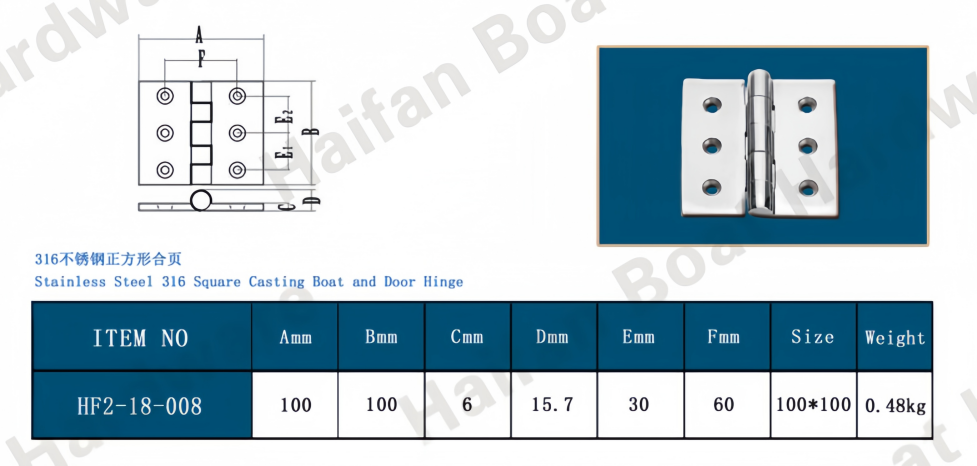

Do these dimensions look like a good fit for your current installation, or are you looking for a completely different style of hinge for your project

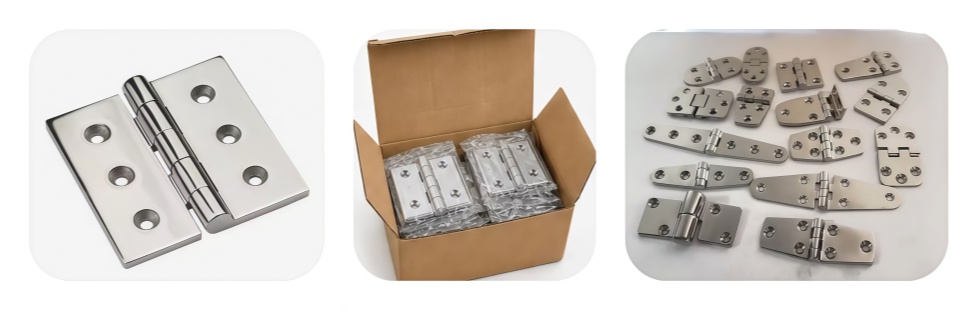

Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
