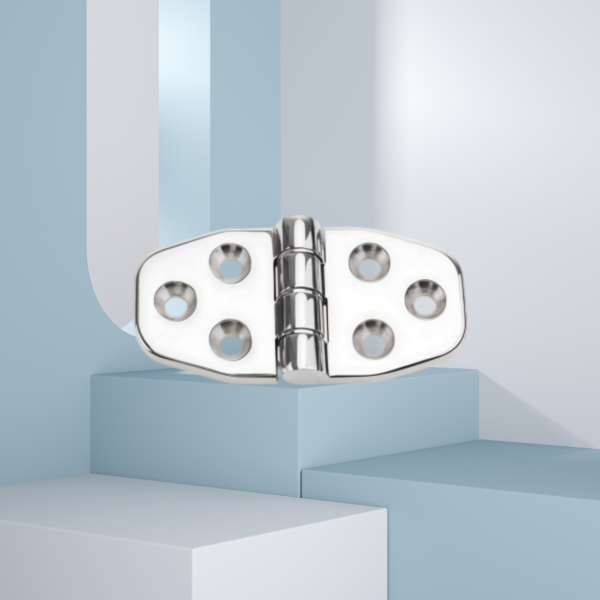

Antistatic Short-Side Door Hinge (specifically an asymmetrical 5-hole or 6-hole boat strap hinge made by ).Just like your previous example, this is built out of solid 316 stainless steel to survive corrosive saltwater environments. Because it is solid metal, it naturally works as an antistatic hinge. If you screw it into a metal frame, it bonds the two pieces together and creates a continuous path for grounding static electricity.

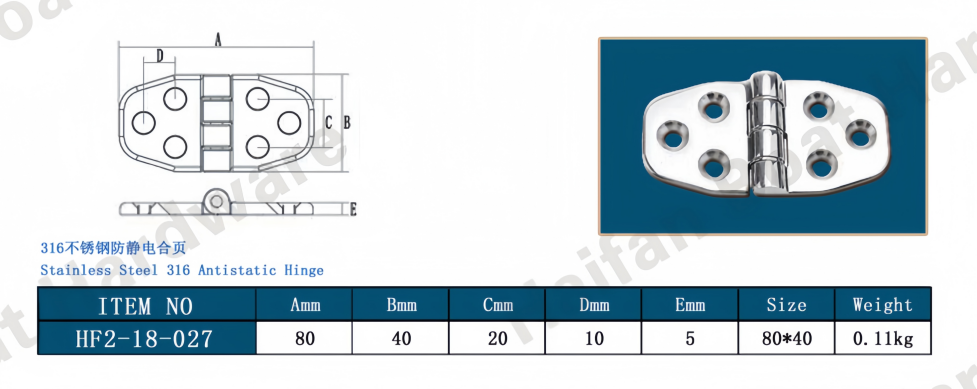

The Asymmetric Shape: This "short-side" style is very specific. One side is a standard rectangular flap, while the other side is a tapered, rounded triangle. This design lets you mount the hinge to thin frames or structural pillars on one side, and wide hatch covers or heavy cabinet doors on the other.
Common Materials: These are made using investment casting from SUS316 Marine Grade Stainless Steel for extreme rust protection and a high-gloss finish.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
