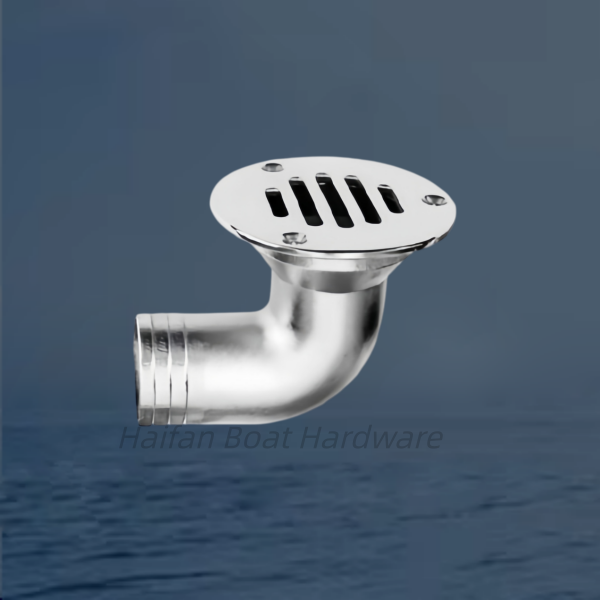

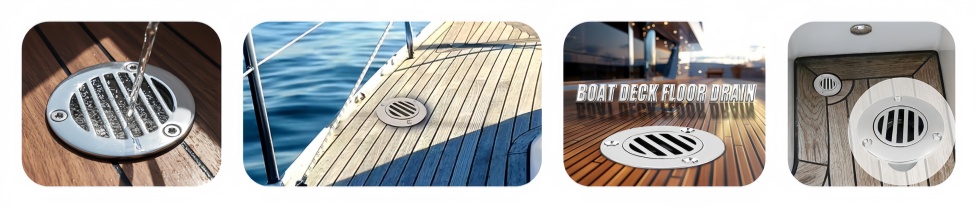

Integrated 90-Degree Elbow Boat Deck Floor Drain (often categorized as an integrated cockpit scupper). While it shares a similar right-angle plumbing profile with the previously discussed split-type model, this version features a single, unified body construction where the grate bars are integrated directly into the top casting.
Design Differences & Features
• One-Piece Integrated Grate: Unlike split-type configurations where the inner screen is a separate unthreadable component, this model features drainage slots cast directly into the top flange surface. This eliminates any loose moving parts and provides maximum structural integrity, ensuring the unit can handle heavy weight loads, dropped marine gear, and constant foot traffic without cracking or warping over time.
• Low-Profile Tapered Funnel: The basin features a shallow, tapered funnel that sits flush with the cockpit surface, collecting surface water efficiently and directing it instantly into the tight 90-degree right angle.
• Space-Saving Horizontal Plumbing: The right-angle bend makes it highly effective for narrow under-deck envelopes where straight-through vertical routing is blocked by fuel tanks, structural stringers, or storage liners.
• Ribbed Hose Barb Termination: The outlet pipe end is engineered with standard raised barbs to firmly grip flexible marine discharge lines and eliminate loose slipping when cinched down with standard hose clamps.

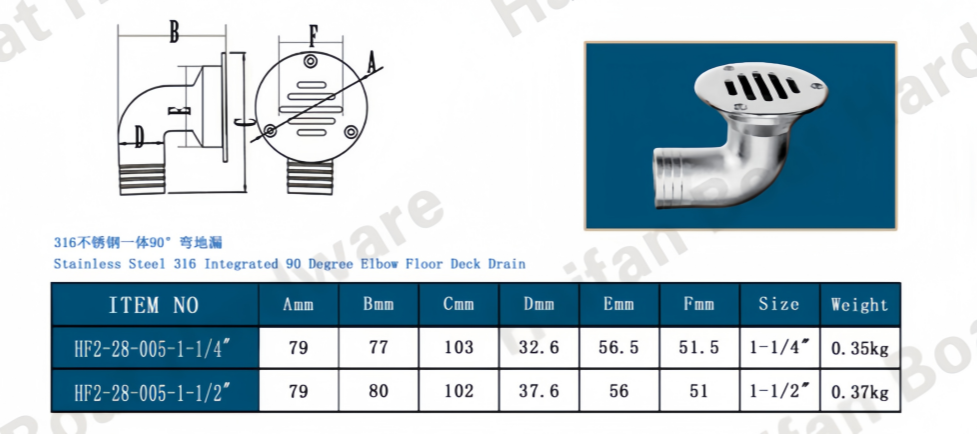

Product Specifications
• Material Composition: Cast from robust, mirror-polished marine-grade 316 stainless steel for top-tier defense against crevice corrosion, pitting, and long-term saltwater spray.
• Standard Hose Adaptations: Most commonly produced to adapt to standard marine hose dimensions including 32 mm (1-1/4 inches) and 38 mm (1-1/2 inches) inner diameters.
• Deck Anchorage: Provided with three distinct counter-sunk screw positions along the perimeter to secure a flat, toe-friendly fit on your deck surface.
Depending on your project layout, would you like to check:
• The precise flange face diameter and drop clearance dimensions to confirm it clears your under-deck space?
• A comparison of drainage speed and maintenance trade-offs between this integrated style and the split-type model?
