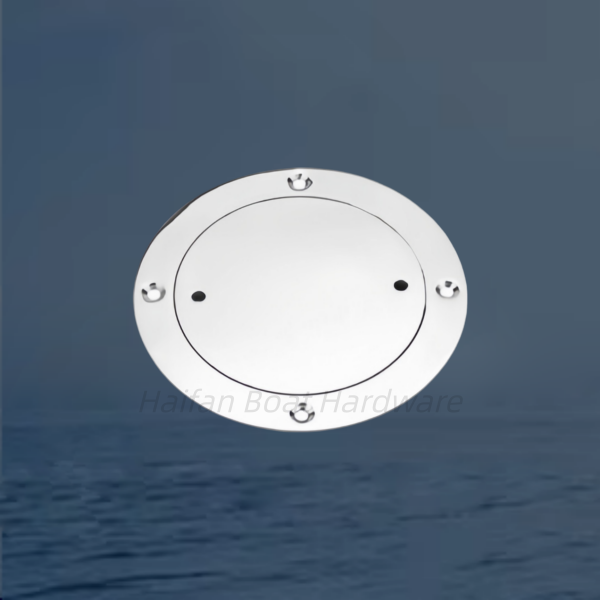

Stainless Steel Threaded Round Deck Plate (also commonly known as a marine inspection hatch or deck clearance plate). Unlike the floor drains previously discussed, this is a completely sealed utility hatch designed to provide quick access to below-deck components—such as fuel valves, electrical wiring, or bilge pumps—while maintaining a watertight seal when closed.
Key Product Features
• Threaded Screw-In Design: The solid center plate features a threaded perimeter that screws directly into the outer flange ring. It can be tightened down or loosened using a specialized two-pin deck plate key inserted into the two small dimple holes on the surface.
• Watertight Sealing: It typically includes a high-durability rubber O-ring seal nested within the interior threads to completely block saltwater, rain, or washdown spray from seeping into the sub-deck compartments.
• Heavy-Duty Marine Material: Precision-cast from marine-grade 316 stainless steel and polished to a flawless mirror finish. It is highly resistant to saltwater pitting and strong enough to support heavy, direct foot traffic without warping.
• Low-Profile Flush Mount: The outer flange is engineered with 4 counter-sunk screw holes, allowing the mounting fasteners to sit completely flush with the fiberglass or aluminum deck to avoid stub hazards.

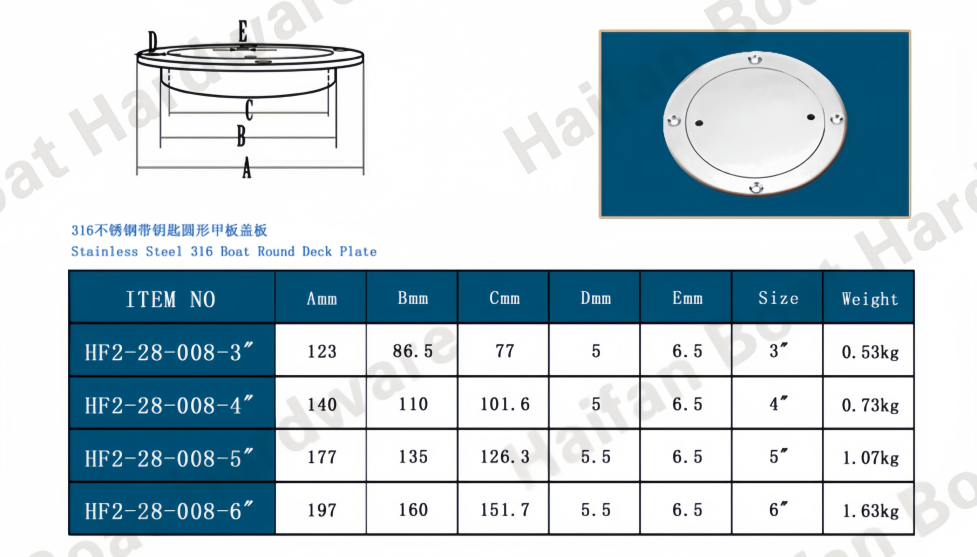

Common Specifications & Sizing
Marine deck plates are generally selected by their clear opening diameter (the actual pass-through space) rather than the overall outer diameter:
• 4-Inch Model: Clear opening of approx. 100 mm; ideal for tight spaces to check small valves or reach inline switches.
• 6-Inch Model: Clear opening of approx. 150 mm; the most common size, allowing a hand to comfortably pass through to work on bilge lines or fuel connections.
Depending on your project layout, would you like to explore:
• The exact outer flange diameter and cutout dimensions needed to verify a fit for your deck?
• Where to find a matching two-pin deck plate key to safely open and lock the center plate?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
