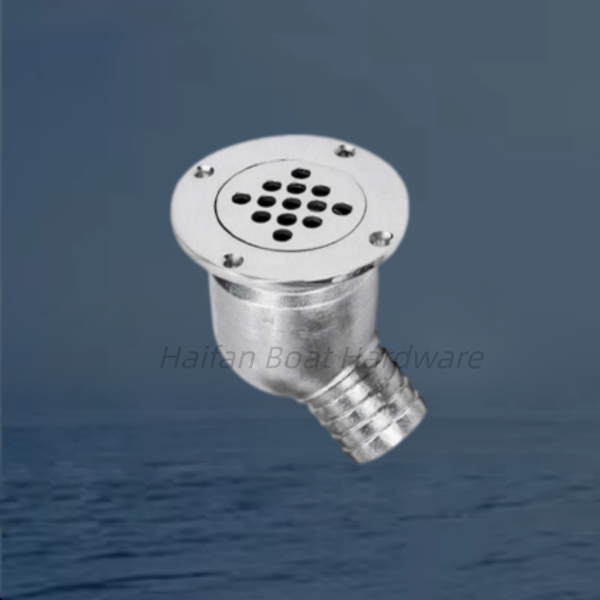

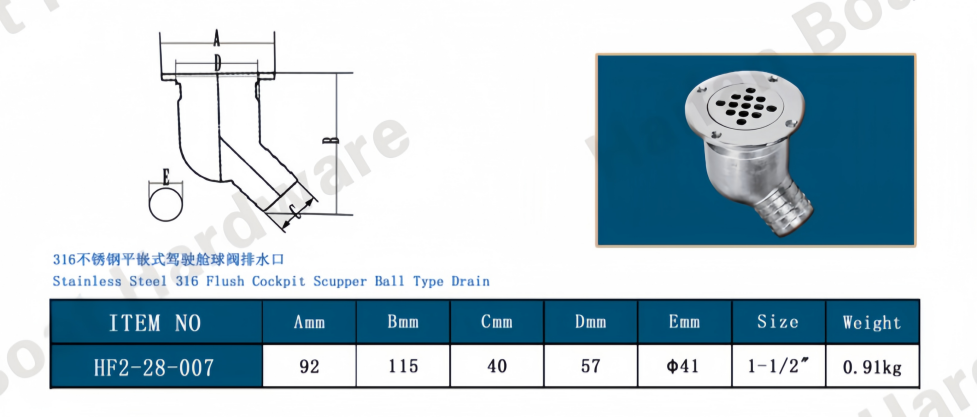

Flush Cockpit Scupper Ball Type Drain
Split-Type Angled Boat Deck Floor Drain (also known as an angled cockpit scupper). This hardware combines a flush-mount top flange with a compact diagonal drainage tail, making it ideal for marine layouts where space beneath the deck floor is constrained.
Design Elements & Features
• Split-Type Removable Grate: The top perforated grate filter sits independently inside the flange ring. It can be unthreaded or lifted right out from the deck side, allowing you to quickly clear out trapped fish scales or seaweed without messing with the under-deck plumbing.
• Angled/Elbow Drainage Path: The integrated pipe bend redirects water away at an angle. This keeps the vertical profile short, making it perfect for shallow under-deck spaces where straight vertical pipes won't clear fuel tanks or stringers.
• Ribbed Hose Connection Barb: The outlet tail features distinct raised ribs to provide a high-friction grip for flexible marine discharge hoses, ensuring a secure and leakproof seal when paired with a heavy-duty hose clamp.
• Counter-Sunk Mounting Holes: Four equally spaced screw channels allow the outer flange to attach perfectly flat against the cockpit floor to prevent stubbed toes.
• Marine-Grade Material: It is precision cast from mirror-polished 316 stainless steel to endure continuous saltwater exposure without pitting or rusting.
Would you like to focus on:
• The exact flange face diameter and undercut depth measurements to see if it fits your current deck cutout?
• Best installation practices, such as choosing between polyurethane vs. silicone marine sealants for a watertight deck seal?
