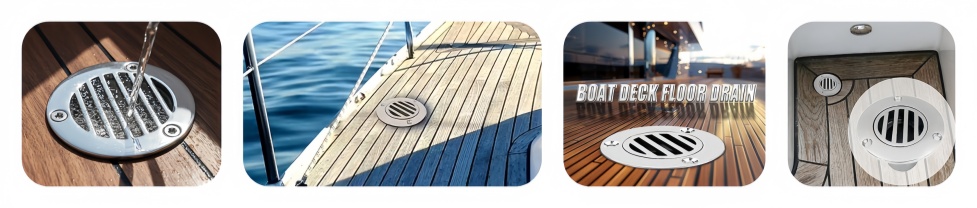

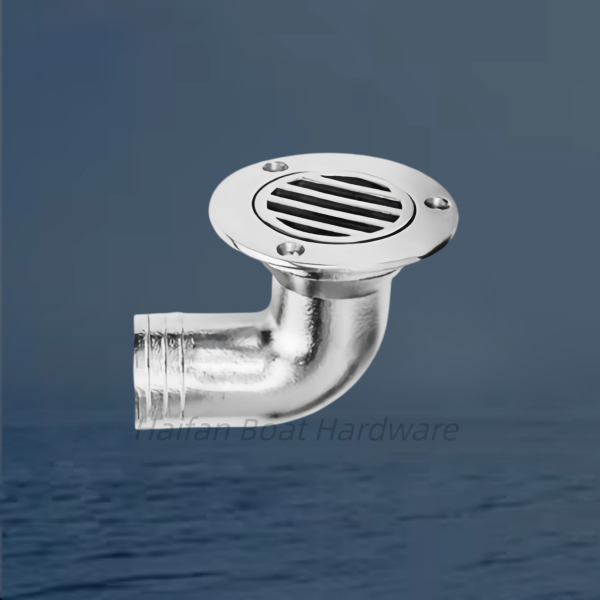

Split-Type 90-Degree Elbow Boat Deck Floor Drain. This hardware component combines a flush-mount top flange with a right-angle drainage bend, making it perfect for tight deck layouts where vertical clearance is limited and drainage piping must run horizontally beneath the floor.
Design Elements & Features
• Split-Type Removable Grate: The top grate filter insert is independent of the main flange ring. It can be unthreaded or lifted right out of the housing to quickly clear out trapped fish scales, hair, or seaweed without disconnecting the underlying plumbing.
• 90-Degree Right Angle Elbow: The integrated pipe bend redirects water horizontally immediately under the deck plate, keeping the overall installation depth incredibly shallow.
• Ribbed Hose Connection Barb: The horizontal outlet tail features distinct raised ribs to provide a high-friction grip for flexible marine discharge hoses, ensuring a secure and leakproof seal when coupled with a heavy-duty hose clamp.
• Counter-sunk Mounting Holes: Three equally spaced screw channels allow the top flange to attach perfectly flat against the fiberglass or metal cockpit floor to prevent stubbed toes.
Would you like to focus on:

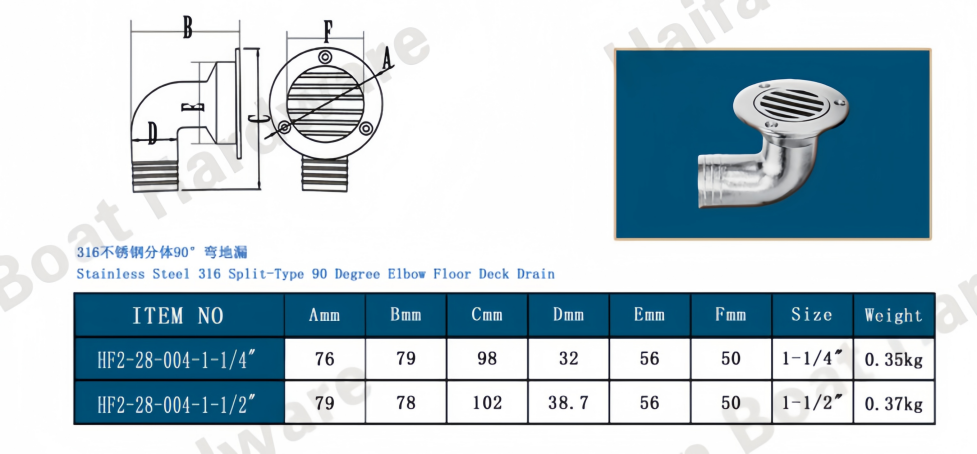

• The exact flange face diameter and undercut depth measurements to see if it fits your current deck cutout?
• Best installation practices, such as choosing between polyurethane vs. silicone marine sealants for a watertight deck seal?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
