The Wide D Shackle features a screw pin and is offered in sizes ranging from 5mm to 12mm. This D shackle is made from grade 304 or 316 stainless steel for maximum corrosion resistance and durability, wide jaw shackle. Highly popular and built to last, perfect for heavy duty lifting jobs. They're perfect too for using in salt water or in areas where the air is humid and moist. making it ideal for marine and industrial applications.

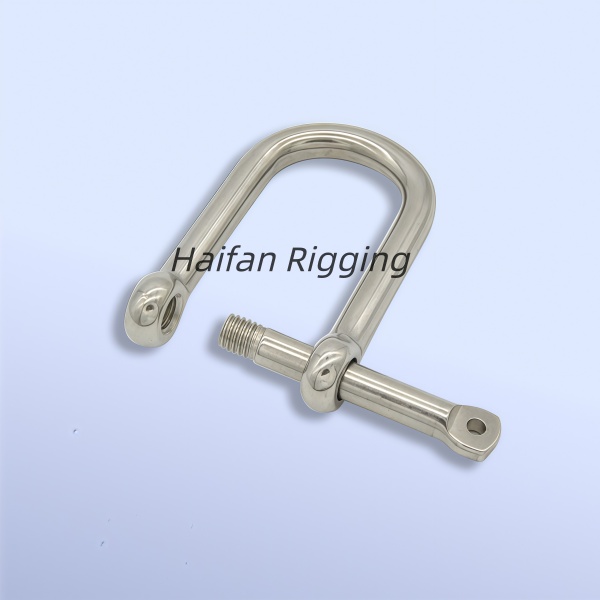

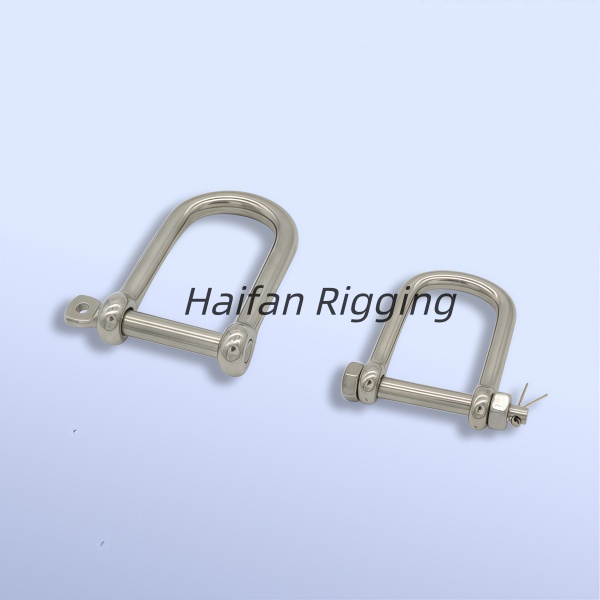

Stainless Steel Wide D Shackles
A wide D shackle (also called a wide-jaw shackle) is a variation of the standard D-shackle built with a significantly wider internal width and a longer pin. While it retains the straight-sided "U" or "D" profile of a traditional chain shackle, the expanded body design provides a larger mounting area and greater clearance. This allows it to bridge connections that are too thick or awkward for standard-width hardware.
Key Features Expanded Jaw and Body: The primary advantage is its wide opening, allowing the shackle to fit over thick hardware, bulky structural anchor points, or wide connection plates.
In-Line Loading Requirement: Because it is structurally a D-shackle, it is still engineered primarily for straight-line, in-line tension. It should not be used for multi-directional or angular side-loading, as side loads can twist or bend the extended pin.
Lower Relative Breaking Strength: Because the pin is longer, the span between the shackle walls is wider. This creates a larger leverage point on the center of the pin, meaning wide D shackles generally have a lower working load limit (WLL) or breaking strength than standard-width D shackles of the exact same material thickness.
High Corrosive Resistance: Most high-quality wide D shackles are precision-cast from 304 or 316 marine-grade stainless steel to prevent rust and degradation in harsh saltwater or highly humid outdoor environments.

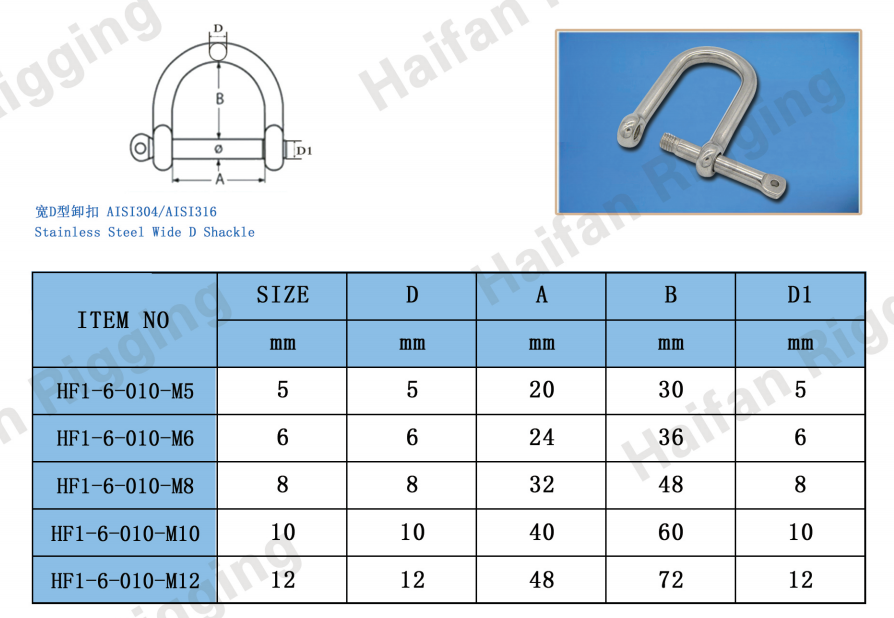

Reliable,and brilliantly versatile, our wide jaw Dee Shackles come with an easy slide captive screwed collared pin. Available in 5mm, 6mm, 8mm,10mm and 12mm diameters, our shackles are perfect for boat yards, garages or for use in sporting activities. Mountaineers in particular will use shackles to embed into steep ledges so they can attach themselves safely to the ropes.
Wide D Shackle
If you’re looking for a strong, durable shackle, now is a good time to take a look at our amazing range fittings including the wide jaw shackle right here at Haifan Rigging.
To order your shackle, all you need to do is fill out our speedy inquiry form here.
We'll be happy to help.
