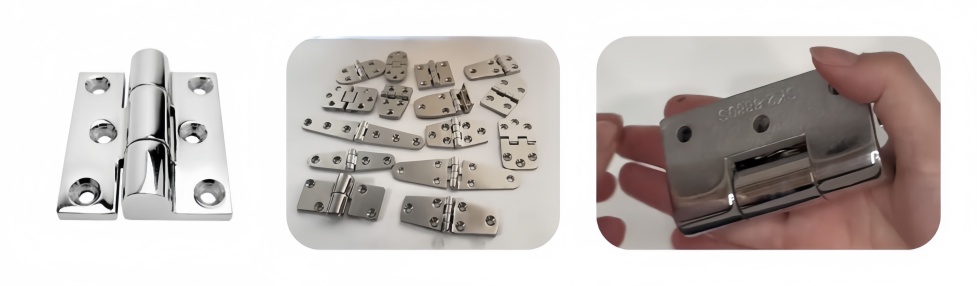

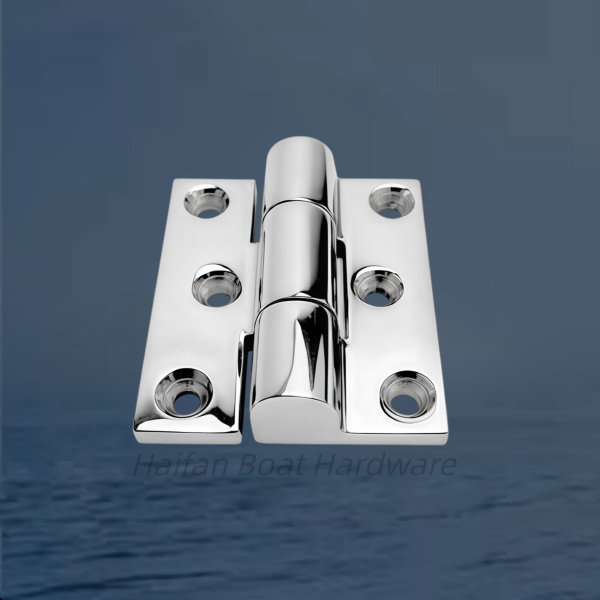

Heavy-Duty Marine-Grade Cast Hinge (also commonly called a take-apart or short-side lift-off hinge).
Design & Structural Overview
Lift-Off / Take-Apart Design: The center barrel is split into two separate interlocking sections. This allows you to quickly lift a boat hatch, engine cover, or cabin door completely off its frame without using any tools.
Solid Core Casting: It is manufactured through solid investment casting. This results in incredibly thick, heavy-duty plates that will not bend or twist under severe wave impacts or hull vibrations.
Beveled Countersunk Holes: The six screw holes feature a sloped profile. This ensures flat-head fasteners sit completely flush against the faceplate so they do not catch on lines, life jackets, or clothing.
316 Marine Stainless Steel: Built from high-grade 316 stainless steel with a mirror-polished finish. This offers the ultimate defense against rust and pitting in harsh saltwater environments.
To make sure you pick the right replacement, let me know:
When looking at the door, do you need to lift the door toward the left or toward the right to remove it?

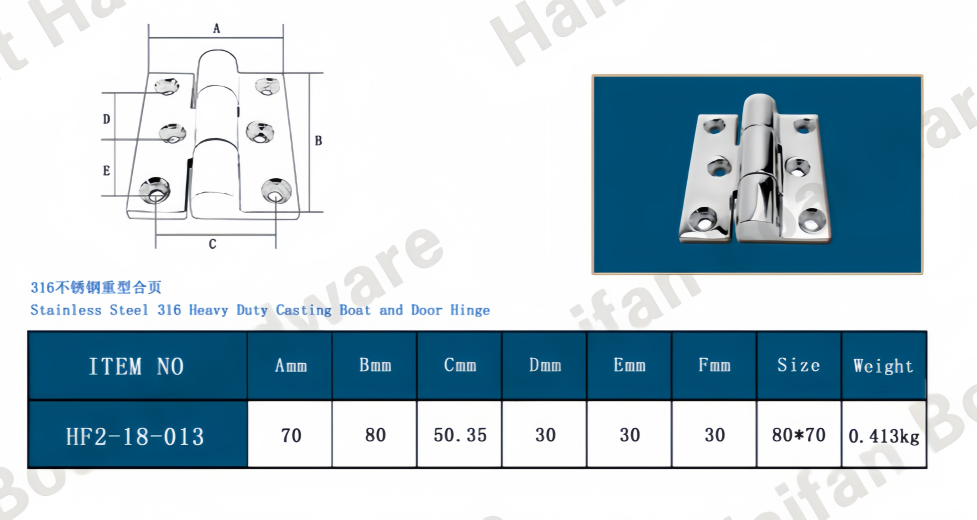

What is the total width and height of the hinge plates when laid out completely flat?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
