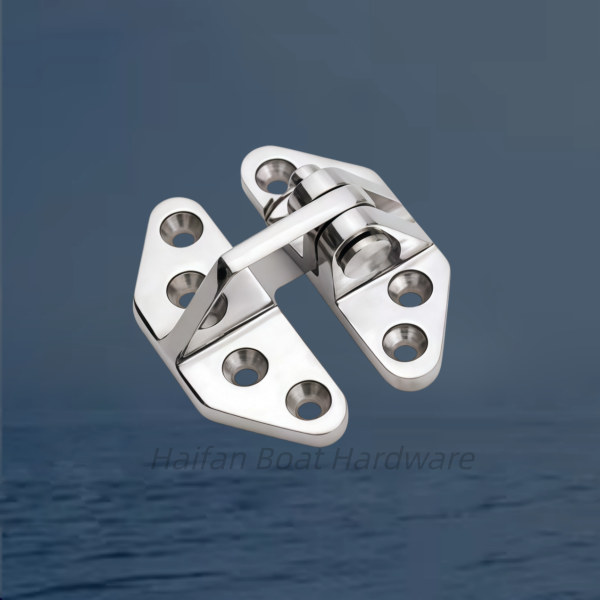

Heavy-Duty Hatch Hinge with a Removable Quick-Release Pin.
Key Features & Design
Quick-Release Removable Pin: The hinge barrel features a specialized pin (often equipped with a split ring or lynch ring). This allows boaters to completely detach a deck hatch, engine cover, or livewell lid in seconds without backing out any permanent mounting screws.
Built-In Open Stop: The bracket is molded with an integrated metal stop. This structural ridge blocks the lid from swinging too far backwards, safely holding the hatch in an upright vertical position while you reach inside the compartment.
Investment Cast 316 Stainless Steel: The thick, heavy-duty casting is polished to a highly reflective mirror finish. It is entirely rust-proof, designed specifically to withstand direct ocean spray, saltwater pooling, and heavy foot traffic.
8-Hole Surface Mount Pattern: The wing flanges are pre-drilled and countersunk to accept 8 flathead fasteners (typically #10 marine-grade deck screws) for maximum load distribution and structural strength.
Installation PlanningWhen swapping out standard flat hinges for this long-reach/high-profile hatch style, pay close attention to alignment:
Fastener Selection: Always use 316 stainless steel countersunk screws (#10 size) to ensure the heads sit completely flat and flush within the pre-drilled holes, keeping the top surface safe to step on. Sealing the Core: If you are drilling new pilot holes into a fiberglass deck that has a balsa or foam core, always seal the raw interior edges with marine epoxy or marine sealant (like 3M 4200 or 5200) to keep water from rotting out your boat floor.
If you're replacing a broken hinge, tell us if your current layout uses 4 holes or 8 holes, or share your center-to-center hole measurements. We can help you confirm if this model will bolt directly into your old footprint!
