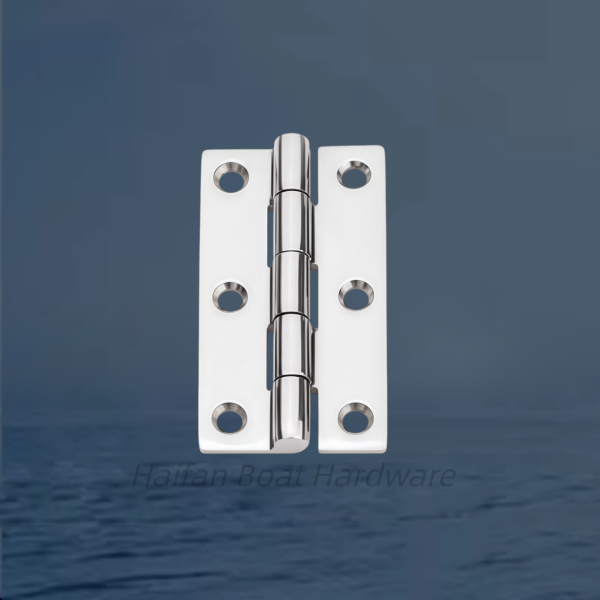

Cast Butt Hinge Featuring a 6 hole configuration.
This is a fixed, non-removable pin hinge designed for structural stability, smooth swinging, and long-lasting alignment.
Design & Structural Overview
Precision Investment Casting: Molded from solid molten metal rather than cut from stamped sheet metal, giving it thick, rigid plates that do not flex under heavy stress or rough waves.
6-Hole Support Matrix: Features three mounting holes on each leaf, allowing the load of a heavy engine hatch, entry door, or console panel to be distributed safely across fiberglass or wood structures.
Beveled Countersinks: The screw openings feature a sloped interior profile, ensuring that flat-head mounting fasteners sit completely flush against the faceplates.
Corrosion Mitigation: Crafted using highly durable 316 marine-grade stainless steel buffed to a bright mirror polish, shielding the underlying hardware from saltwater pitting and rust.
To make sure your new hinge drops perfectly into your old footprint, let me know:

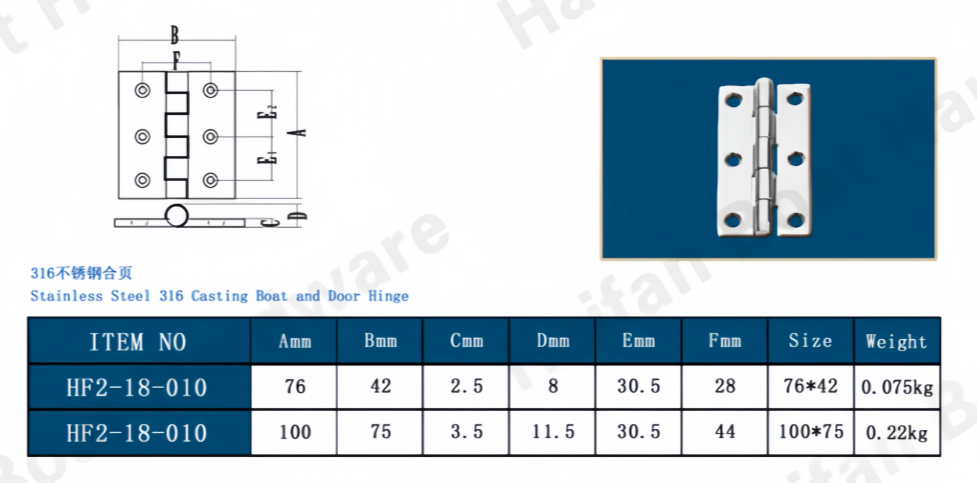

What are the exact overall width and height measurements when the leaves are spread completely flat?
Do the screw holes form a perfect square pattern, or is one side of the leaf narrower than the other (known as a short-side butt hinge)?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
