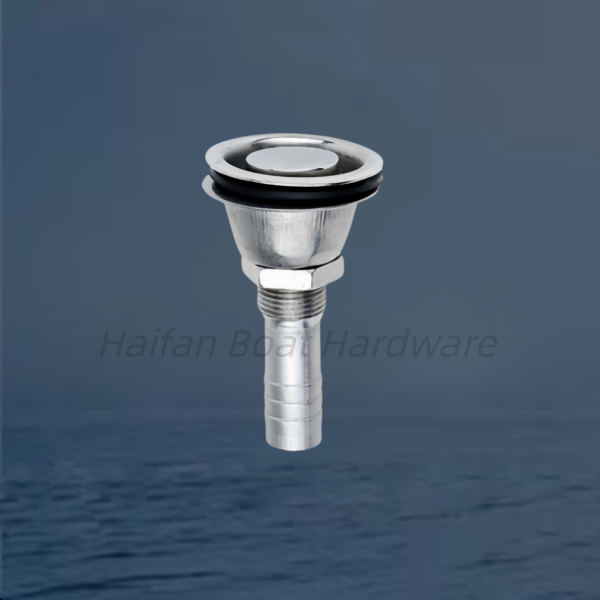

Marine Fuel Tank Vent with a Double Bowl/Cup design, constructed from highly durable 316 marine-grade stainless steel.
Key Differences & Functional Benefits
• Enhanced Splash Protection: The "double bowl" configuration provides an extra physical barrier. This significantly reduces the chances of raw fuel splashing up out of the vent line during high-flow fueling or when the tank sloshes in rough seas.
• Water Intrusion Prevention: The secondary cup layer helps trap exterior spray or rainwater coming in through the face, channeling it away or letting it drain before it can contaminate your fuel or water lines.
• Low-Profile Styling: Like standard flush mounts, it sits close to the boat's hull or transom to keep dock lines, fenders, or clothing from catching on it.

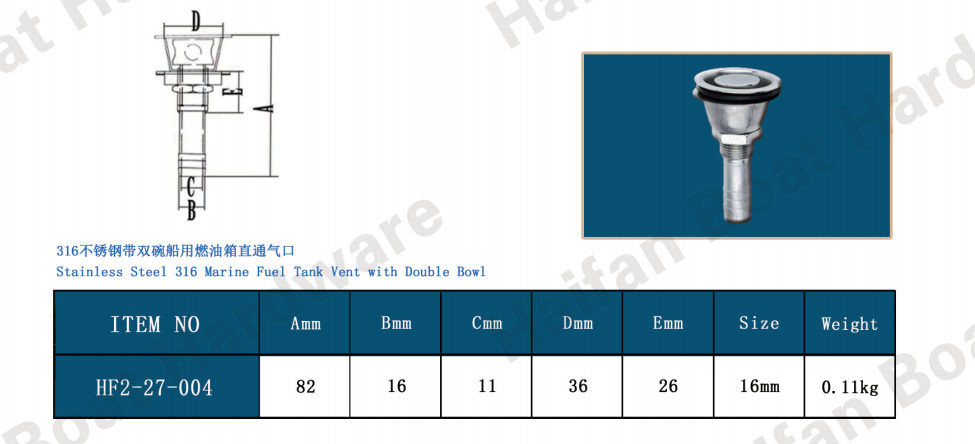

Specifications & Fitment
• Hose Barb connection: Features a standard multi-ridged tail piece, most commonly sized for a 5/8" (16mm) marine fuel vent line.
• Mesh Screen: Houses a permanent, integrated stainless steel mesh screen tucked underneath the solid central cap to act as a spark arrestor and a barrier against mud daubers, wasps, or other insects.
• Hardware Included: Ships with a heavy-duty rubber O-ring/gasket resting on the bowl's shoulder to form a tight seal against the exterior hull skin, clamped tightly in place by a bottom hex locking nut.
Are you trying to decide between this double-bowl style and the single-bowl design you shared previously? Let me know if you need to verify the exact cutout hole size required in your boat's hull for this deeper cup design.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
