Marine Bracket Stanchion Boat Accessories 22mm 25mm Center Handrail Fitting Stanchion. Commonly used in marine pulpits, cabin grab rails, bathroom fixtures, and architectural installations. This ultra-sleek, blind-mount design hides all fasteners underneath the mounting surface for a seamless appearance.
Hardware Variations Explained

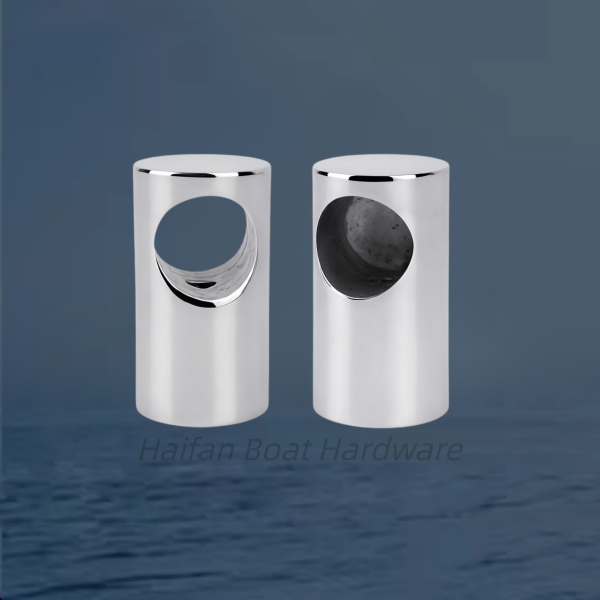

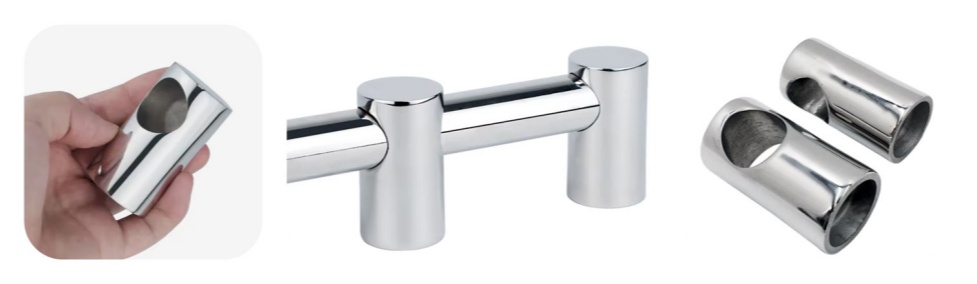

Option A: Center / Pass-Through StanchionFeatures an open, unobstructed through-hole running entirely through the cylinder body.Designed to act as an intermediate mid-support pillar, allowing a continuous length of metal tubing to pass cleanly through it.
Option B: End / Terminal StanchionFeatures a blind hole (pocket/cap) that terminates inside the cylinder walls.Designed to seat and cap the very end of the rail pipe, providing a clean, enclosed finish that prevents the tube from sliding out.

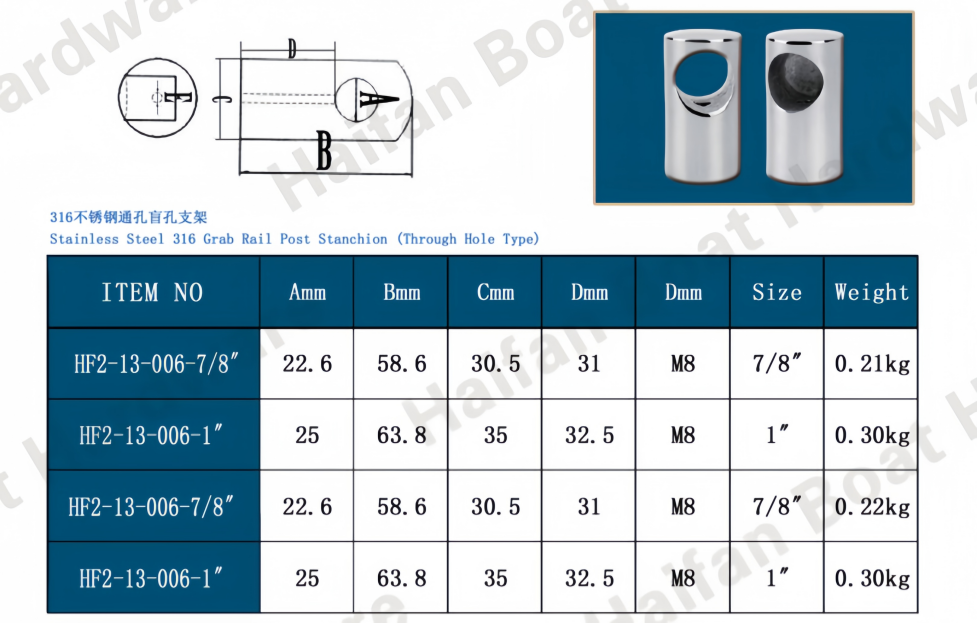

Technical & Sourcing Profiles
Material: Investment-cast 316 Marine-Grade Stainless Steel or heavily chromed solid brass hand-polished to a mirror finish.
Mounting Type: Bottom-threaded blind socket. It is installed from underneath the deck or wall surface using a standard heavy-duty machine bolt (typically an M8 thread size).
Common Tube Capacities: Standard sizing is precision bored to hold either 7/8-inch (22mm) or 1-inch (25mm) outer-diameter metal piping.
If you are currently planning out an upcoming installation, let us know:
What is the total length of the rail you are building?
Do you have access to the underside of the mounting area to tighten the bolt from below?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
