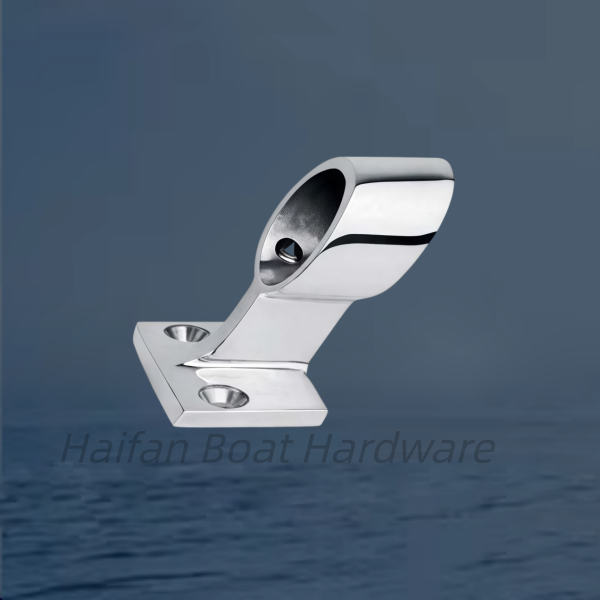

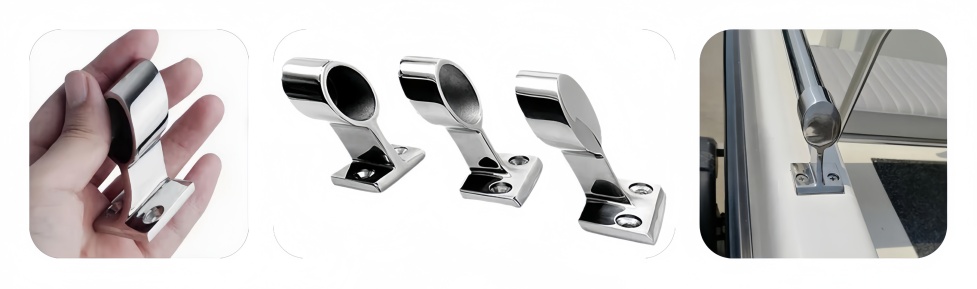

60° Front Bracket Stanchion (also known as a handrail end fitting), which is a heavy-duty marine hardware component used to secure and support handrails on boats and yachts.
Key Features and Specifications
Material: Made of premium Grade 316 Stainless Steel (SUS316), offering maximum corrosion resistance and durability in harsh saltwater environments.
Finish: Features a high-quality mirror-polished surface for a sleek aesthetic and easy maintenance.
Angle: 60-degree fixed tilt angle, designed specifically for the front (bow) section or sloping lines of a vessel's rail system.
Base Design: Equipped with a 2-hole rectangular base featuring countersunk mounting holes for a flush, secure screw installation.

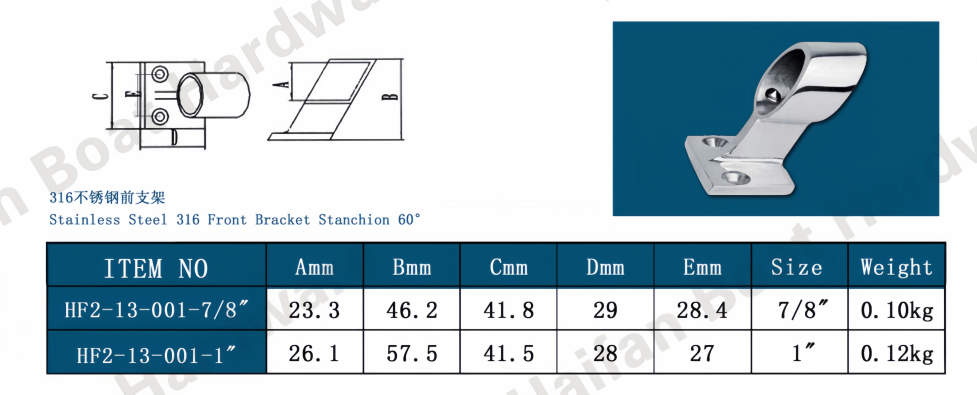

Tubing Compatibility: Typically designed to fit standard marine tubing with an outer diameter (OD) of either 7/8" (22mm) or 1" (25mm).
Common Applications
Securing bow rails, cabin top handrails, and side deck grab rails on boats.
Utilized as an end-piece bracket where the handrail terminates into the deck or superstructure.
If you are looking to purchase or replace this specific part, please let us know:
The outer diameter of your handrail pipe (7/8" / 22mm or 1" / 25mm)?Whether you need a Left-Front, Right-Front, or standard universal orientation?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
