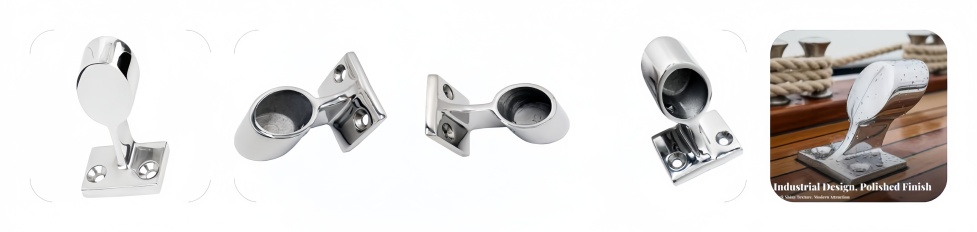

60° Tail (Aft / Rear) Bracket Stanchion.This component completes the three-part boat handrail system, acting as the terminal end-piece at the back or rear section of the handrail setup.

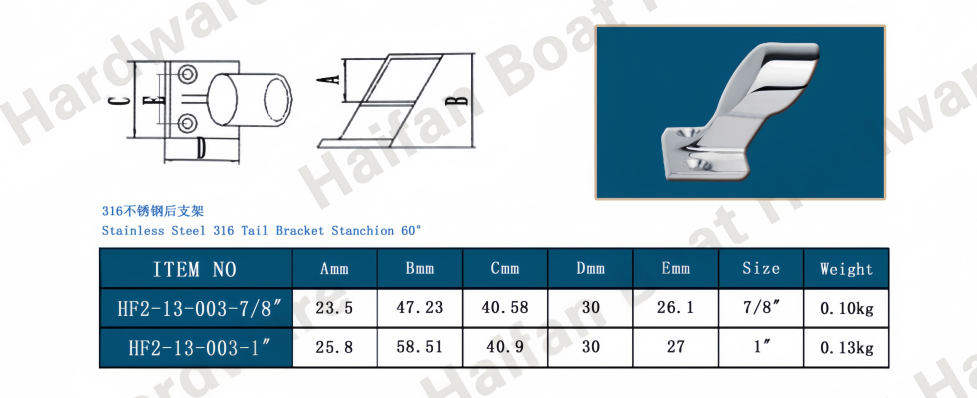

Key Features and Specifications
Closed-End Design: The tube socket is completely closed on the rear side, capping off the stainless steel pipe to prevent water, dirt, or salt buildup from entering the inside of the tube.
60-Degree Angled Profile: Slanted at a 60-degree angle to match the aerodynamic and aesthetic lines of a boat's cabin top, gunwale, or deck layout.
Rectangular Base: Features a heavy-duty, mirror-polished rectangular base with two pre-drilled countersunk mounting holes for a flush screw installation.
Premium Material: Cast from highly polished Grade 316 Marine Stainless Steel (SUS316) to ensure superior rust and pitting resistance under constant saltwater exposure.
The Complete Handrail System Overview
With this final piece, your complete continuous rail setup consists of:
1,Front Bracket: The closed-end piece at the very front of the rail.
2,Middle/Center Bracket: Open-ended pass-through supports along the run.
3,Tail Bracket (This Item): The closed-end piece that finishes the rail at the back.
Do you need help checking if your front, middle, and tail brackets share the exact same height and base dimensions for a uniform installation? Please let us know:
The tubing size you plan to use (7/8" / 22mm or 1" / 25mm)?
If you need to find a supplier that sells these as a complete matched set?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
