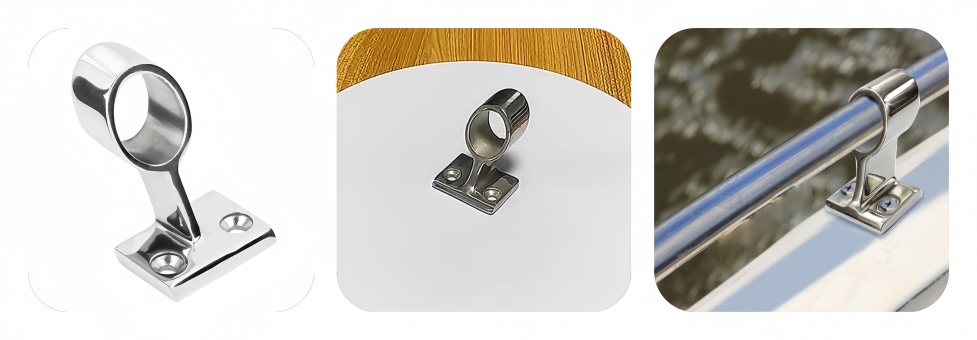

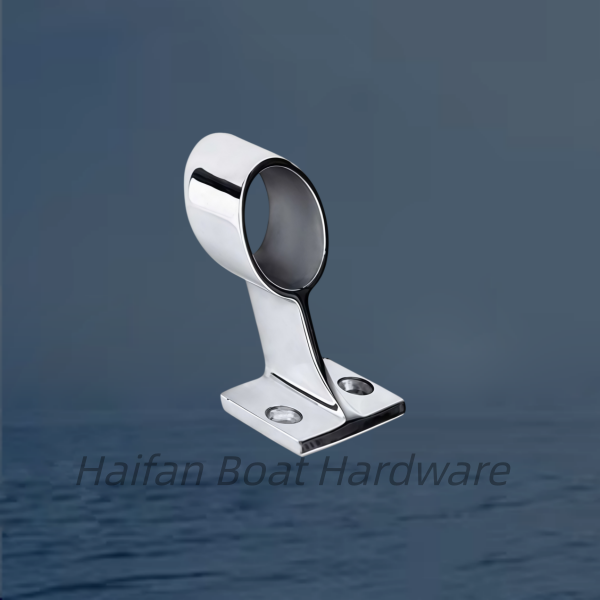

60° Center (Middle) Bracket Stanchion.
Unlike the previous front/end bracket which is closed on one side, this is a pass-through (open-ended) fitting designed to support the middle sections of a continuous handrail pipe.
Key Differences and Specifications
Pass-Through Design: The tube socket is open on both ends, allowing a single long stainless steel pipe to slide completely through the center support.
60-Degree Angle: Positions the handrail at a fixed 60-degree incline relative to the mounting surface, maintaining a uniform profile with your front and aft stanchions.
Rectangular 2-Hole Base: Features a compact, mirror-polished rectangular base with two countersunk holes for a secure deck-mount installation.
Material: Cast from marine-grade 316 Stainless Steel (SUS316) for maximum corrosion protection against saltwater.
Placement & System LayoutIn a standard boat handrail setup, this part is used in combination with end pieces:
1,Front Bracket (End): Used at the very beginning of the rail.
2,Center Bracket (This Item): Placed at regular intervals in the middle to prevent the pipe from sagging or flexing.
3,Aft/Rear Bracket (End): Used at the final termination point of the rail.
Are you planning out a full handrail installation?
If you need assistance matching parts, please let us know:

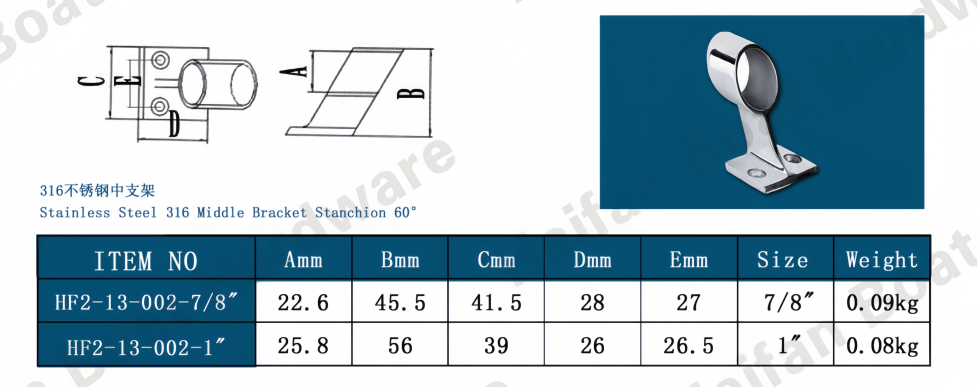

The exact pipe diameter you are using (7/8" / 22mm or 1" / 25mm)?
The total length of the rail so we can calculate how many center supports you need?
