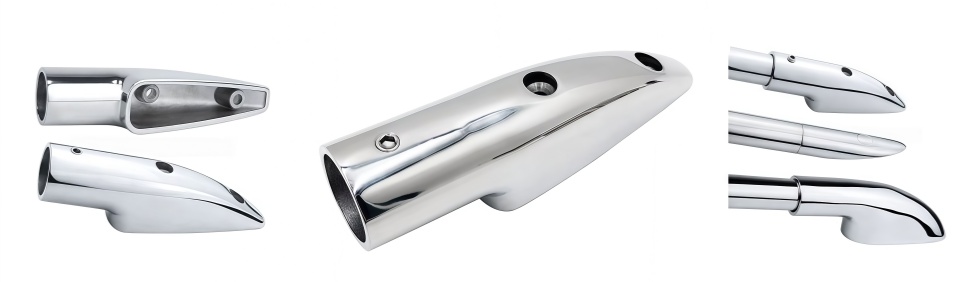

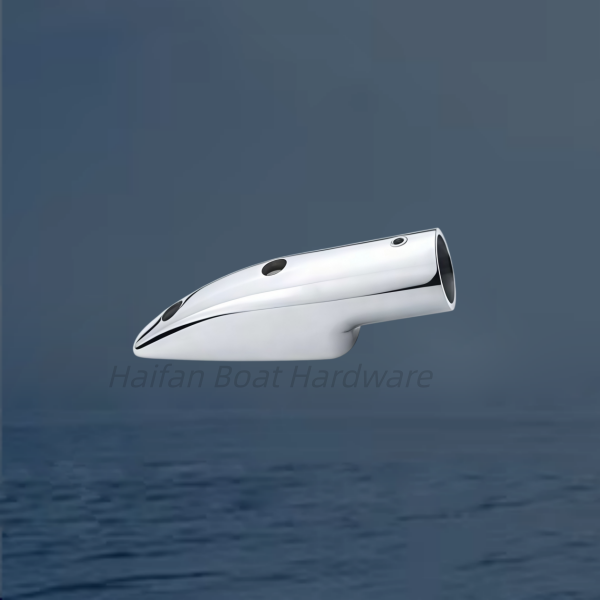

Degree Sleek / Aerodynamic Handrail End Fitting (often classified as an End-In rail terminal bracket). This low-profile marine component serves as a sleek anchor to securely block and terminate the tip of a yacht's bow, stern, or cabin grab rail.Its sloped, bullet-shaped body reduces catching points for ropes and lines while maintaining a high-utility grasp on structural metal tubing.

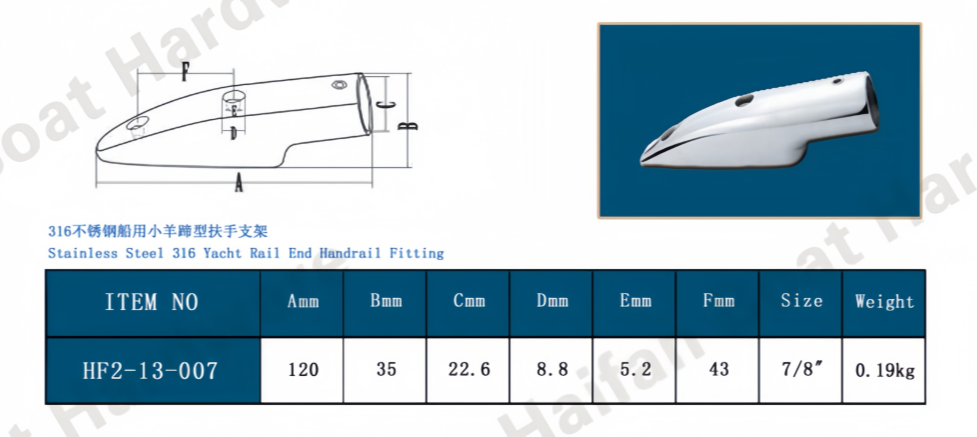

Technical Details & Specifications
Design & Angle: 5.5-Degree Slope. The mild pitch allows it to perfectly transition from standard angled marine deck moldings or matching bow geometries down to a flat surface.
Fitting Classification: Terminal / End Piece. Unlike center supports, the tubing enters from one open side and nests securely into a closed internal stop block.
Fasteners: It features dual top countersunk screw holes along its spine for direct downward surface mounting, alongside a lateral set screw at the neck to clamp down firmly on the inserted tube.
Material: High-tensile, investment-cast 316 Marine-Grade Stainless Steel hand-polished to a mirror finish for lifelong resistance to rust and oxidation.
To help find the correct exact replacement parts for your installation, let me know:
What is the diameter of your tubing? (7/8" / 22mm or 1" / 25mm)?
What is the distance between the two center points of your existing mounting screw holes?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
