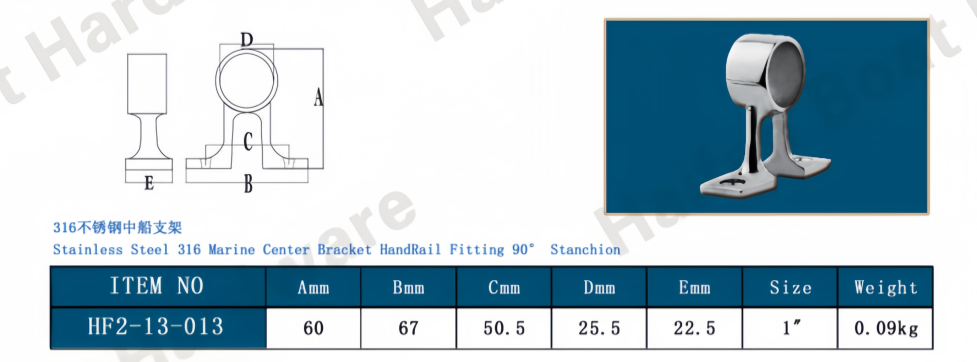

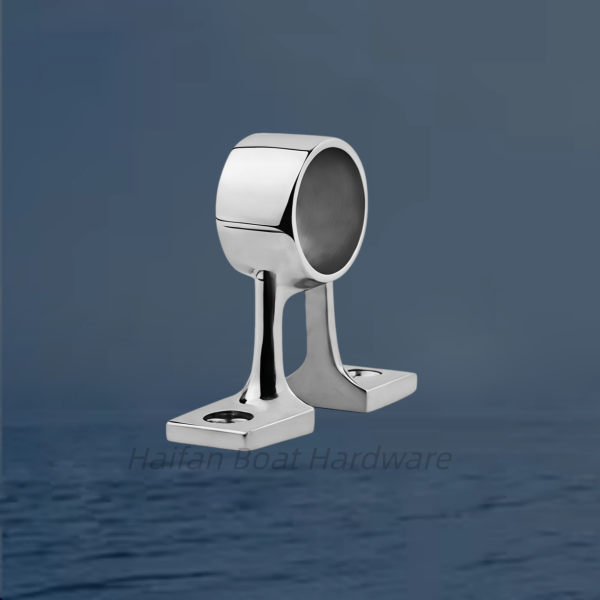

90-Degree Split-Base Handrail Center Stanchion Bracket (also known as a high-leg intermediate pass-through stanchion). It is a marine-grade hardware component designed to support continuous safety grab rails on boat cabin tops, yacht flybridges, or specialty emergency vehicles.
Core Features
Intermediate Pass-Through Loop: The open, hollow cylindrical head allows a continuous piece of metal railing tube to slide straight through the middle, making it a middle load-bearing support rather than a terminating end piece.
Dual Flanged "Split Feet": Instead of a single solid block plate, this design separates into two outward-flanged mounting bases. This distributes structural weight efficiently while minimizing the mounting surface area footprint.
High-Leg Clearance: Provides elevation between the deck and the rail tube, ensuring passengers have ample finger clearance to securely grasp the handrail.
Material: Investment-cast from 316 Stainless Steel and mirror-polished to provide maximum resistance to severe saltwater rust and environmental oxidation.
To confirm the right dimensions before ordering your part, what is the outer diameter (OD) of your current rail tubing? (Typically 7/8" / 22mm or 1" / 25mm).
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
