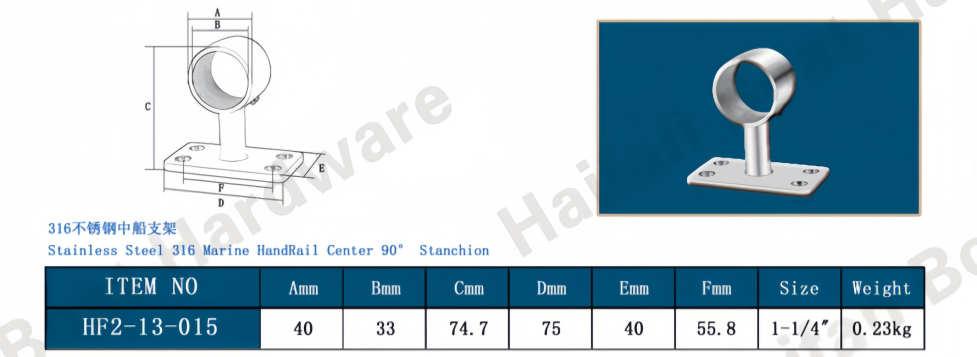

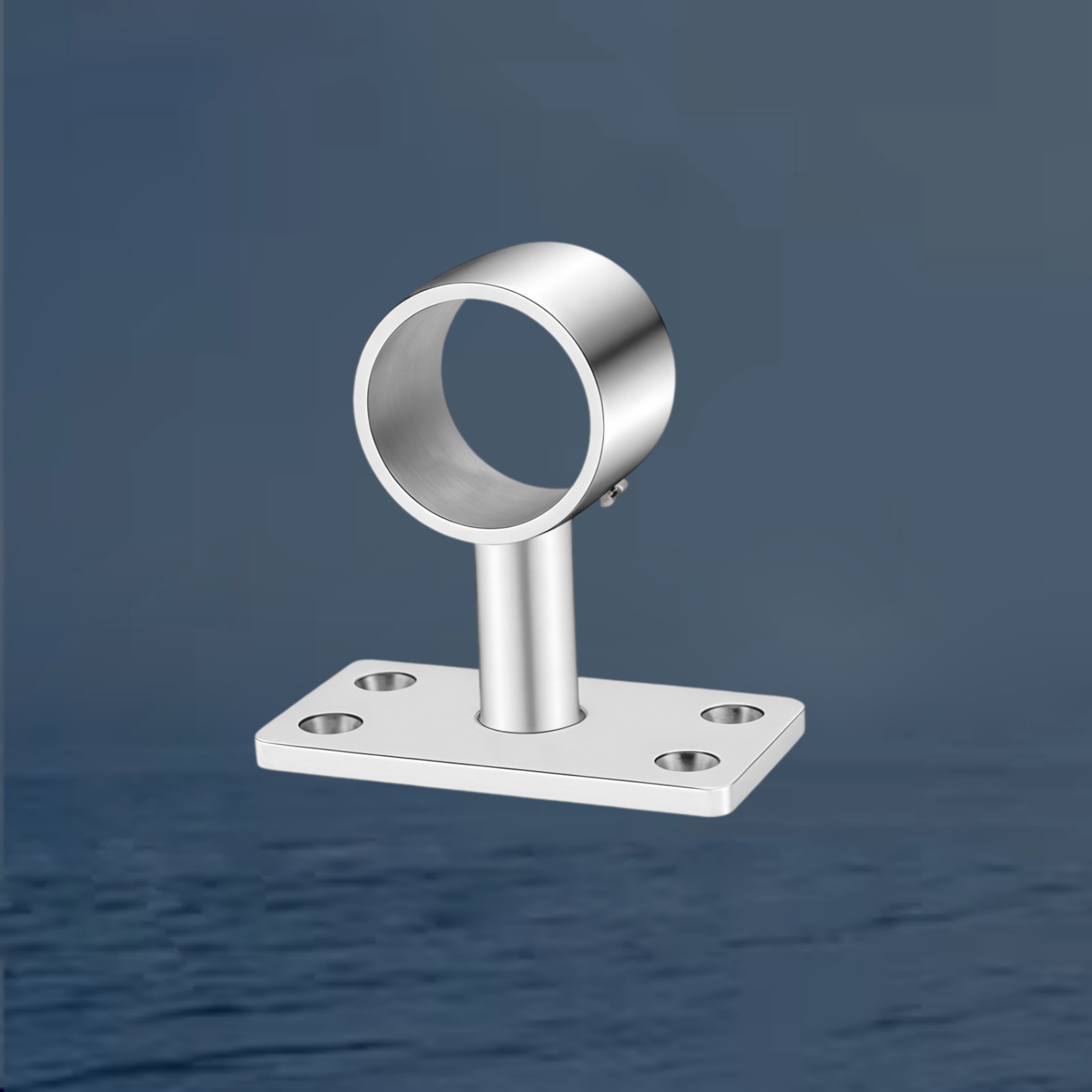

Rectangular-Base Center Stanchion Handrail Bracket, commonly used as a structural passage fitting for round metallic tubing.
Key Design Elements & Applications
Through-Loop Pass-Thru: The open ring at the top allows a continuous pipe or tube to slide completely through, making it a center support rather than an end terminal.
Rectangular Flange Base: The bottom plate features 4 svasati (counter-sunk) mounting holes designed to mount flush onto flat surfaces like walls, ceilings, floors, boat decks, or cabinetry.
Locking Mechanism: A small hex set screw is located at the lower collar of the ring to clamp and lock the pipe securely in place, stopping it from rotating or sliding.
Common Use Cases
Marine Railing Systems: Used heavily as a boat center stanchion for grab rails on boat decks, yacht cabins, and consoles.
Residential & Architectural Hardware: Employed as a ceiling or floor mount bracket for hanging clothes rails, closet wardrobe rods, or heavy-duty shower curtains.
Commercial & Foot Rails: Frequently applied as a support post for bar foot rails, industrial counter partitions, or handrails.
If you are sourcing this item or trying to replace it, let us know:
What outer diameter of pipe needs to fit inside the ring (e.g., 22 mm, 25 mm, 1 inch, 1.5 inch)?
What is the mounting location (e.g., wet marine deck, interior bedroom closet, commercial kitchen)?
We can find the exact product listing matching your criteria.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
