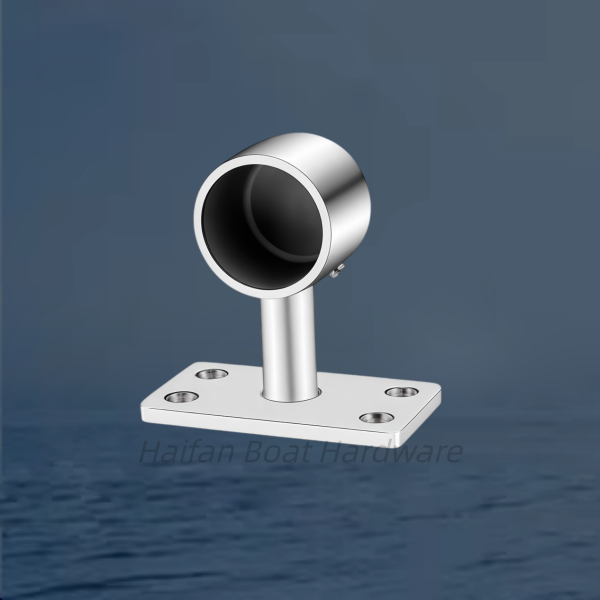

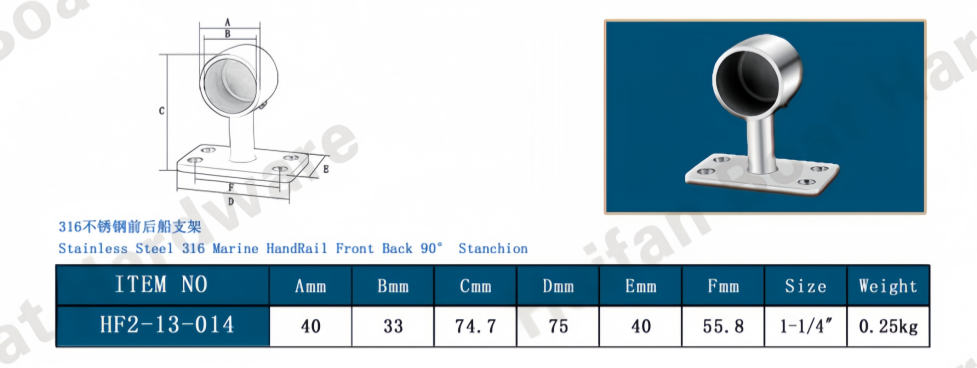

90-Degree Rectangular-Base Handrail End-Cap Stanchion Bracket (often classified as an End-In rail terminal socket). It serves as a structural anchor to finish, cap, and ground the raw edge of a handrail or safety grab bar flat against a surface.
Core Function & Features
Terminal Closed Configuration: The cylindrical head acts as a blind pocket or terminal cap. The metal tubing slides directly into the socket from the front and nests against a solid internal wall, preventing the tube from sliding out.
Perpendicular 90° Standoff: Holds the handrail tube exactly parallel to the mounting deck at a sharp, straight angle.
Integrated Set-Screw Locking: Features a pre-drilled threaded hole at the bottom of the cylinder neck to house a small set screw, which clamps down tightly to stop the rail tube from twisting.
Rectangular 4-Hole Flange Plate: The base is designed for heavy-duty surface mounting, utilizing four countersunk attachment points for a flat, flush installation using screws or through-bolts.
Material Construction: Investment-cast from 316 Marine-Grade Stainless Steel and mirror-polished to prevent rusting, pitting, and oxidation under harsh saltwater or heavy utility exposure.
To make sure your new termination block matches your layout accurately, let us know:
What is the outside diameter (OD) of your metal tube? (Common sizes include 7/8" / 22mm, 1" / 25mm, or 1-1/4" / 32mm).
Are you replacing a center bracket (where the pipe passes straight through) or this terminal piece (which caps the end)?
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
