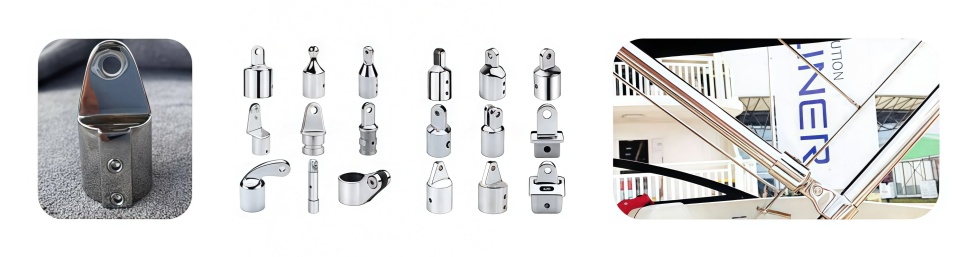

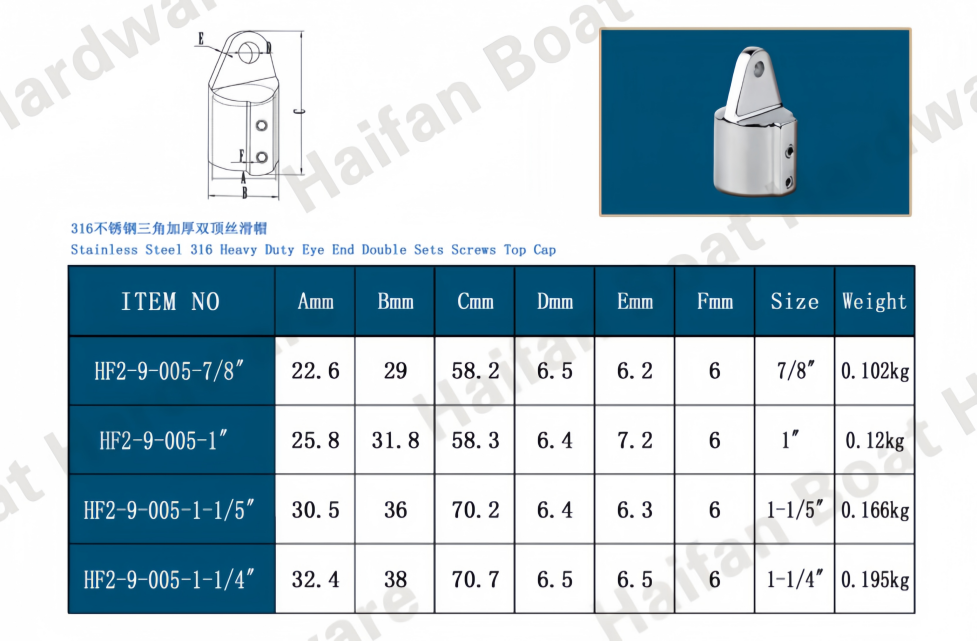

Heavy-Duty Triangular Bimini Top Eye End Cap with Double Set Screws, an upgraded marine hardware component engineered to anchor support struts on structural boat canopies.
Structural Mechanics & Design

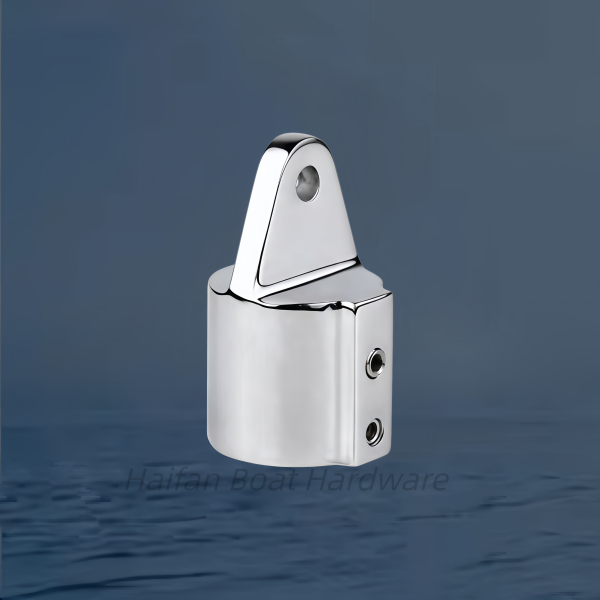

Triangular Gusset Rib: The prominent, sloping triangular ridge tapers directly into the pivoting eyelet tab. This structural reinforcement prevents the flat eyelet from bending or twisting under heavy crosswinds or severe hydrodynamic drag while cruising at high speeds.
Double Set Screws (Dual Grub Screws): Features two stacked hex-socket grub screws arranged vertically along the collar sleeve. This double-locking configuration increases surface clamping friction against the internal framing tube, preventing the cap from twisting loose, vibrating, or backing out under tension.
Integrated Flange Collar: The elongated sleeve body provides a greater insertion depth for the frame tube, minimizing localized stress on the hardware point.
Are you retrofitting a frame or fixing a loose bimini top canopy? Please let us know:
The precise outside diameter (OD) of your canopy frame tubing (e.g., 7/8" / 22mm or 1" / 25mm).
If you need assistance sourcing the matching jaw slides, deck hinges, or quick-release pins that pair with this model.
Whether you require information regarding the correct torque specifications for setting the dual grub screws.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
