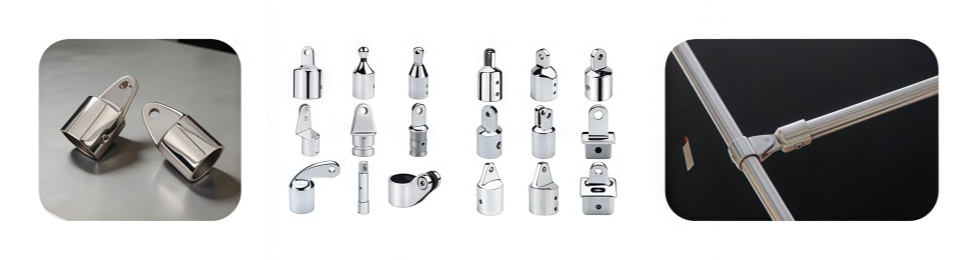

Triangular Bimini Top Eye End Cap, often structurally categorized as a heavy-duty sliding jaw or strut-connecting end fitting for high-load boat canopies.
Unique Design Advantages

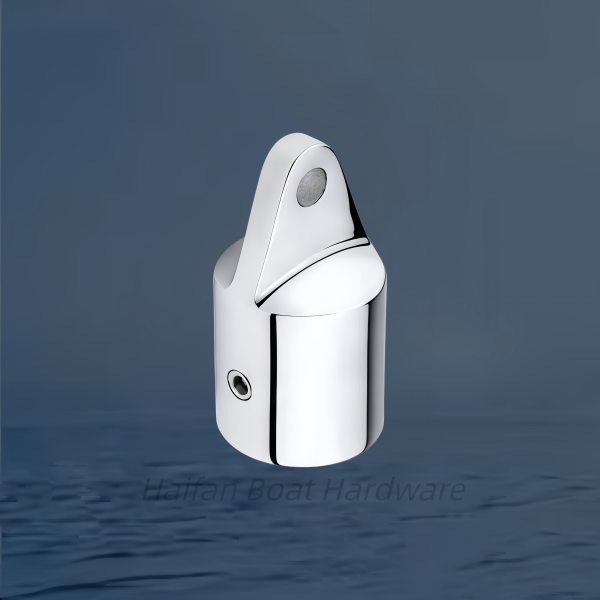

Triangular Ridge Reinforcement: Unlike traditional cylindrical eye ends that feature simple dome shoulders, this model incorporates a sloping triangular spine that tapers directly into the eyelet tab. This structural ridge provides significant lateral reinforcement, preventing the eyelet from twisting or bending backward under severe wind shear or high-speed cruising drags.
Streamlined Low-Profile Fit: The integrated triangular geometry forces the fabric or cover lines to deflect and slide over the hardware without catching, reducing mechanical wear on canvas stitching near the support frame.
Single High-Torque Set Screw: Features an inline hex socket grab screw (grub screw) precisely positioned near the bottom sleeve cuff to bite deeply into the structural tubing framework, maintaining a uniform concentric lock.
Are you fabricating a new frame layout or matching this to an existing joint? Please let us know:
The exact outside diameter (OD) of your canopy frame tubing (e.g., 7/8" / 22mm or 1" / 25mm).
If you need assistance choosing the matching hinge pins, split rings, or heavy-duty deck brackets for this pivot style.
Whether you require info on a double set screw version or hidden internal expander fittings for your project.
