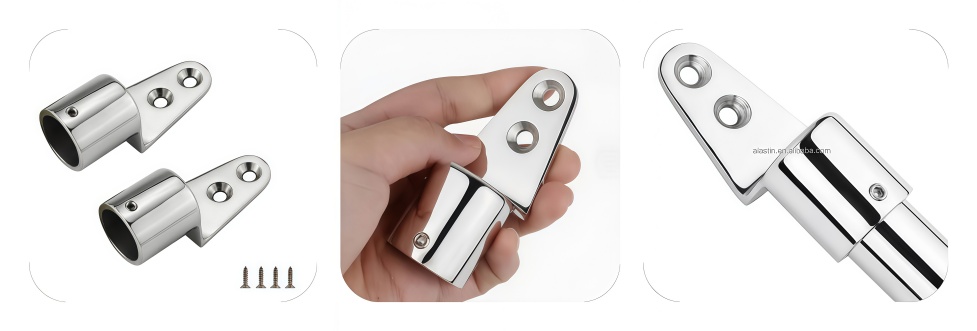

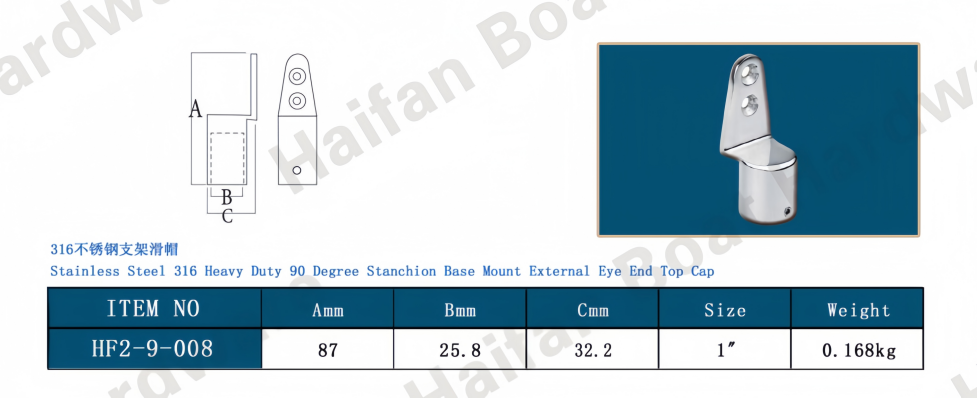

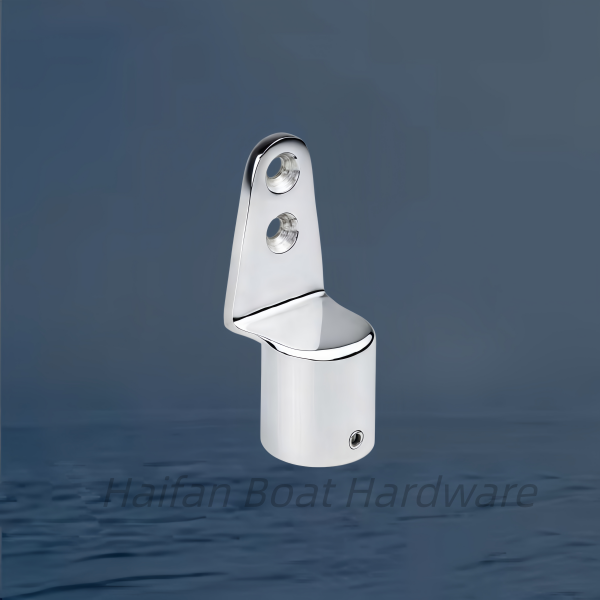

90-Degree Stanchion Base Mount External Eye End Cap (commonly used as a handrail termination or specialized canopy bracket).
Specifications & Design
Mounting Style: External cap. The bottom hollow sleeve slides over the outside of a round marine tube and secures firmly in place using an integrated hex grub set screw.
Material: High-polish 316 Marine-Grade Stainless Steel providing maximum defense against saltwater oxidation and rust.
Pivoting Point: The elongated vertical flat tang features two countersunk screw holes, allowing it to mount flush against vertical stanchions, bulkheads, or specialized bracket slides.
If you are matching this to your existing marine rail setup, let us know:
The outer diameter (OD) of the tubing you are fitting this over.
Whether it needs to fasten to a flat surface or a swivel deck hinge.
We can help confirm the correct measurements or recommend matching installation screws.
Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
