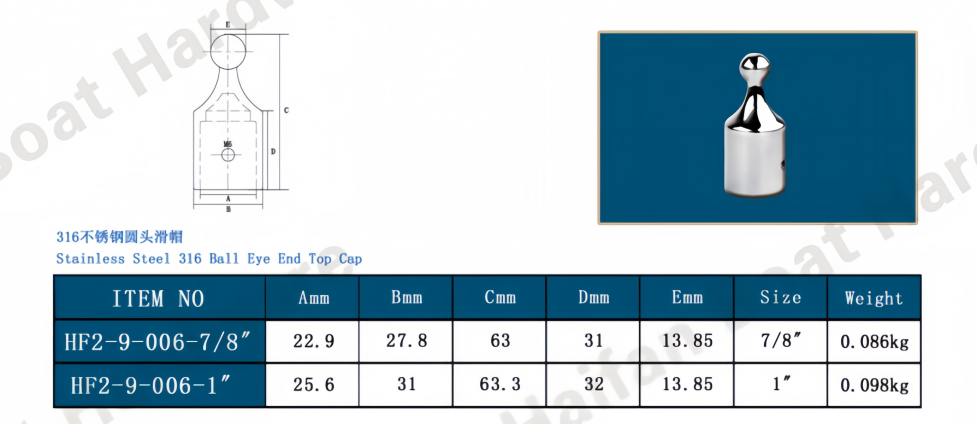

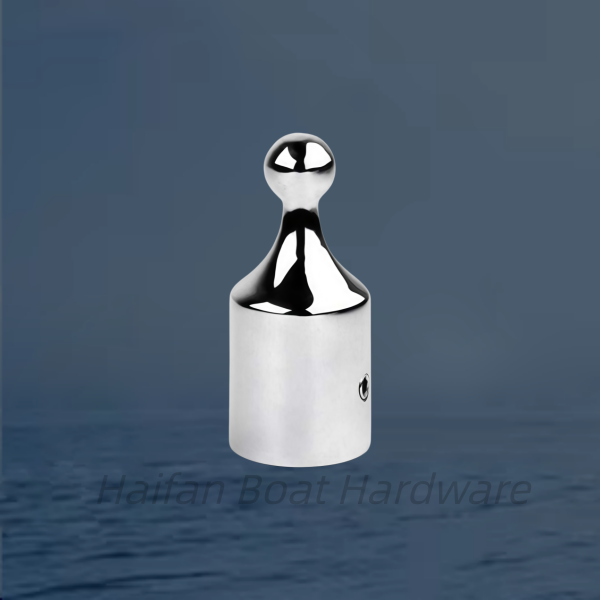

Bimini Top Ball & Socket Eye End Cap. This premium alternative to standard flat-tab eye ends provides an entirely different geometric articulation point for boat canopies, bimini tops, and custom marine canvas shade frameworks.
Structural Mechanics & Design
Ball & Socket Joint System: The vertical post terminates in a perfectly machined spherical ball joint. When seated into a matching socket-style jaw slide or deck hinge, it unlocks a 360-degree rotational pivot radius. This fluid rotation eliminates mechanical binding and handles skewed or angled frame lines far better than rigid single-axis pins.
Quick-Collapse Functionality: The ball design allows operators to drop, swivel, and fold down canopy struts from multiple directions, accelerating the tear-down process when stowing canvas for heavy highway trailering or high-speed cruising.
Recessed Hex Set Screw: A singular hex socket grub screw is integrated near the lower portion of the sleeve cuff to anchor the hardware securely to the round marine framework pipe without standard external visual clutter.
Are you building a newly articulated sunshade frame or replacing a single damaged cap? Please let us know:
The precise outside diameter (OD) of your metal canopy framework tubing (e.g., 7/8" / 22mm or 1" / 25mm).
Do you also need to source the matching ball-receptacle deck hinges or specialized ball-socket jaw slides to complete the pivot system?
If you need advice on utilizing a quick-release detent pin layout versus a fixed locking pin for this hardware class.

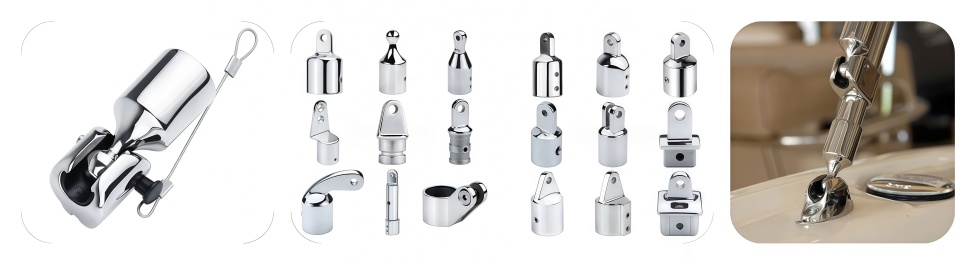

Haifan Rigging supply a range of marine boat hardwares. They come with a variety of fittings for each end to suit your particular application. Yachts, Sailboats, Ships and Other Fields.
If you wish to ask a question or need further advice, you are welcome to contact us. We'll be happy to help.
We look forward to hearing from you!
