Stopper Round Wire Rope Clip

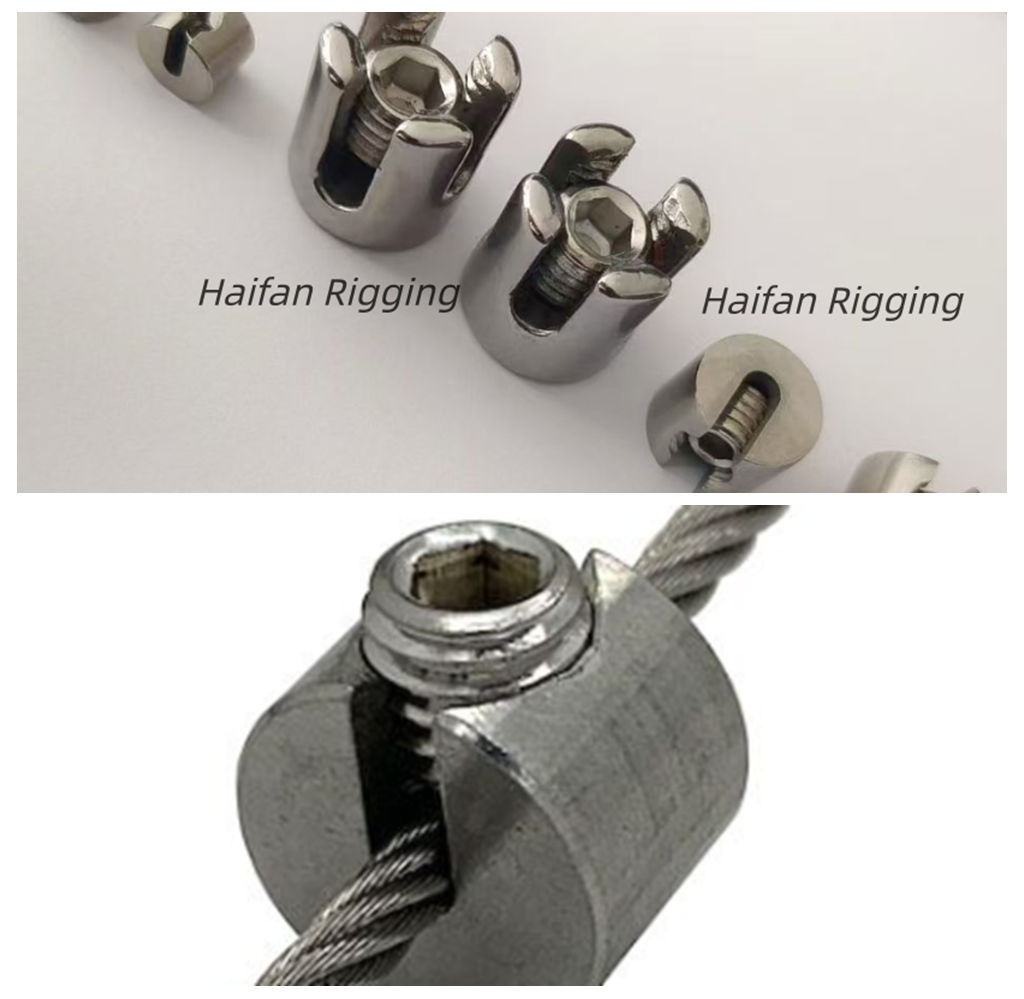

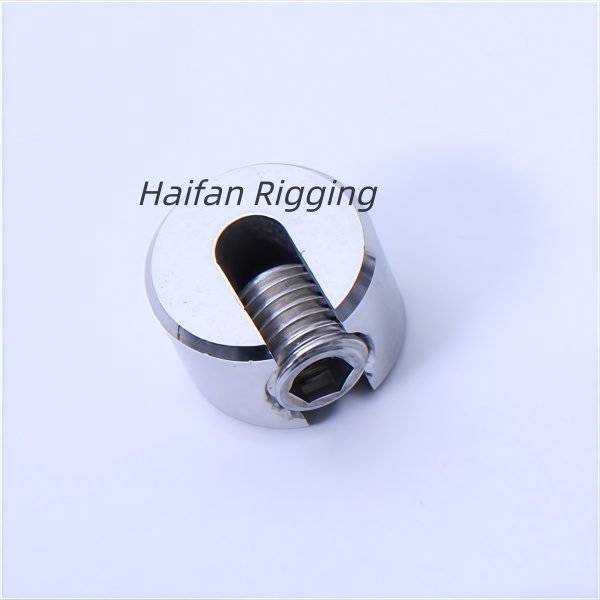

This object is a wire rope stopper, also commonly known as a cable stopper, stop end, or wire rope stop clamp.
Key Features and FunctionDesign: It is a cylindrical, rear-mountable fitting made from stainless steel (typically 304 or 316 grade for corrosion resistance).
Mechanism: It features a rounded slot for the wire rope and a hex socket grub screw (Allen screw) that, when tightened, grips the cable to create a secure clamping connection.
Advantage: Unlike traditional crimp-on ferrules, this type can be mounted anywhere along the rope after installation without needing to slide it on from the end.
Common Uses:
These stoppers are frequently used for:
Marine Applications: Sailboat and yacht cabling.
Architectural Features: Cable railing systems, shade sails, and hanging decorations.
Home & Industry: Securing fences, banners, sunshades, or acting as anchor points and mechanical stops for lanyards.

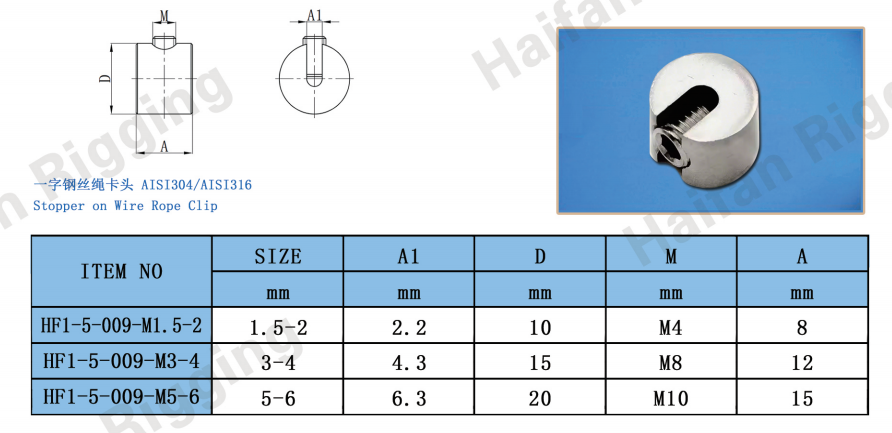

Wire Rope Round Stopper Clip
Haifan Rigging can supply wire rope clips in a wide range of sizes to suit a vast range of wire rope/cable diameters.
Choosing the right size of clip is important so do contact us to discuss your requirements and place your order today.
We also supply a wide range of alternative wire rope fittings to suit a range of applications.
