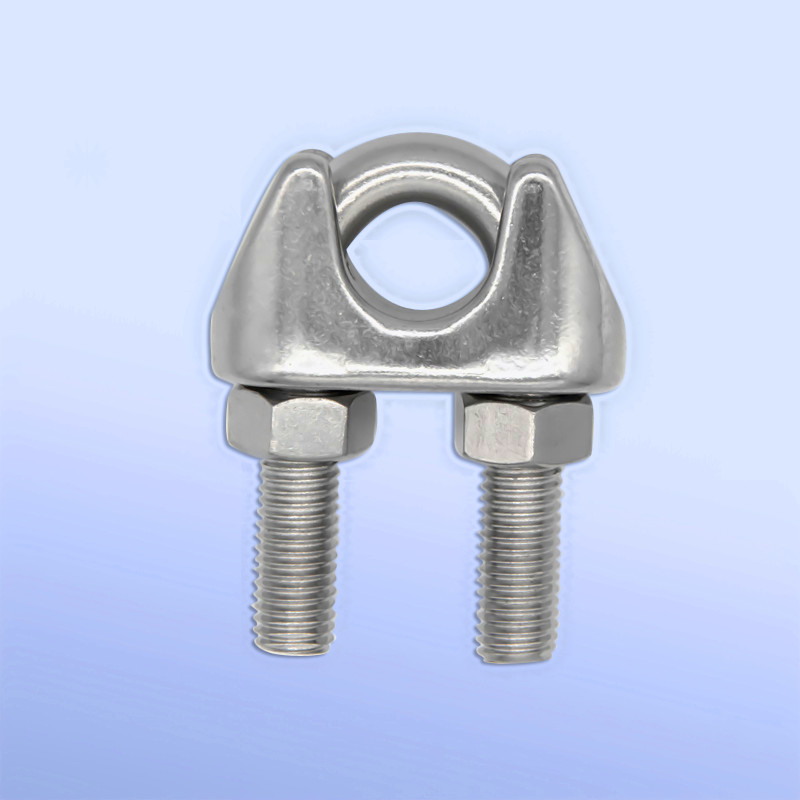

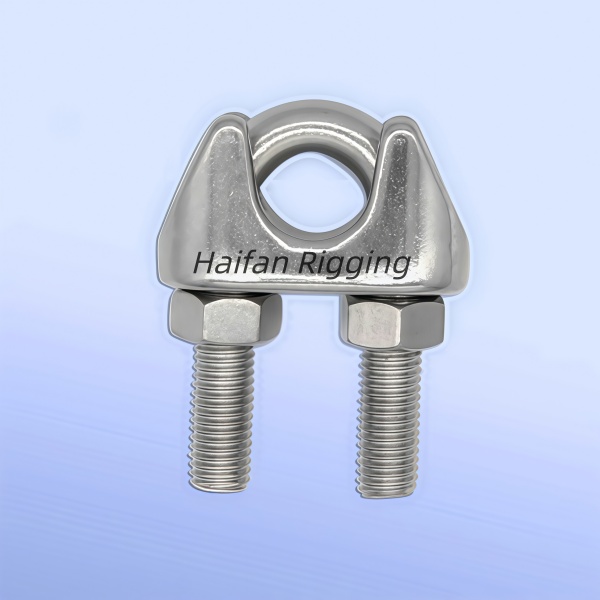

Wire Rope Clip
A standard wire rope clip consists of three distinct parts:The U-Bolt: A U-shaped threaded rod that wraps around the cables.
The Saddle (Bridge): A metal base with two holes that slips over the U-bolt threads.
It is grooved to fit the contours of the wire rope strands perfectly.
Two Hex Nuts: Threaded fasteners used to tighten the saddle down, compressing the wire ropes together.
Stainless Steel Wire Rope Clips – DIN741 Wire Rope Clip

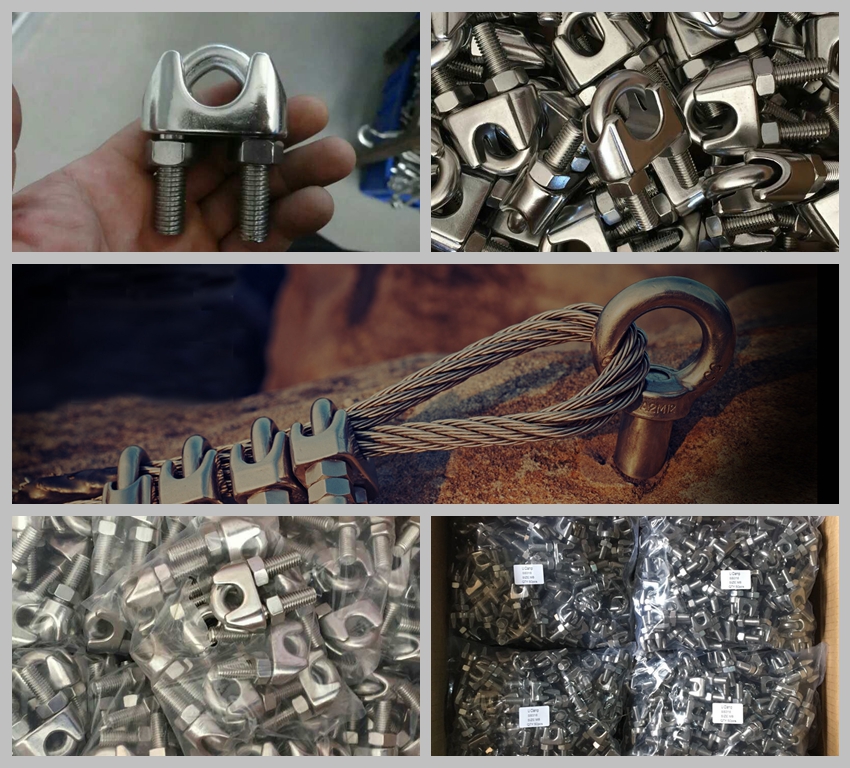

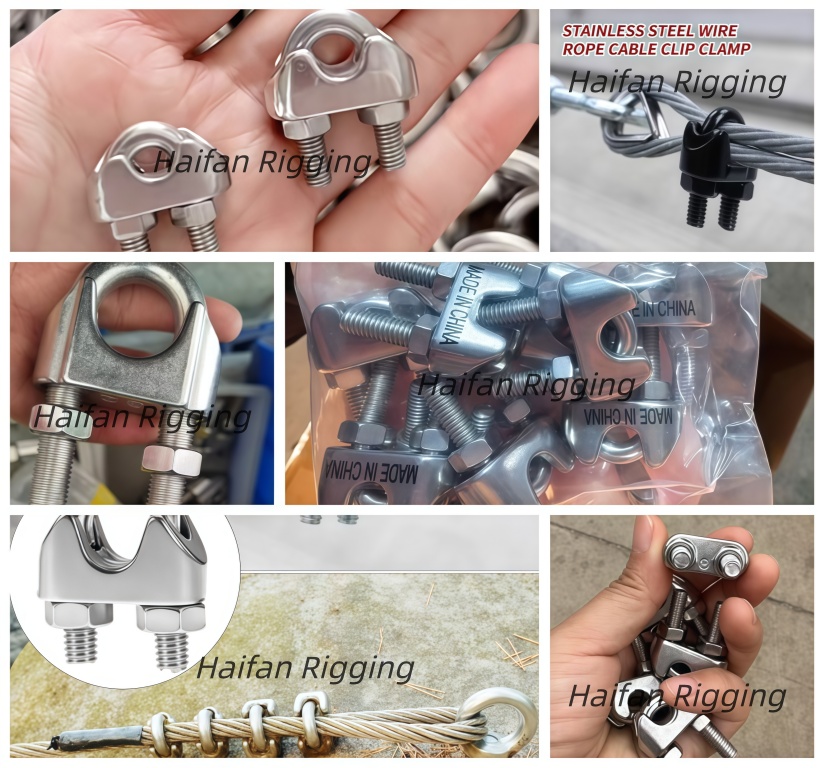

This DIN 741 Wire Rope Clip (also known as a malleable wire rope grip or cable clamp) is a lightweight rigging hardware component used to form loops or secure the ends of steel wire ropes.
It has exceptional anti-corrosion qualities they are perfect for marine, coastal and other outdoor environments as well as industrial and domestic uses, fishing and sailing and sporting.

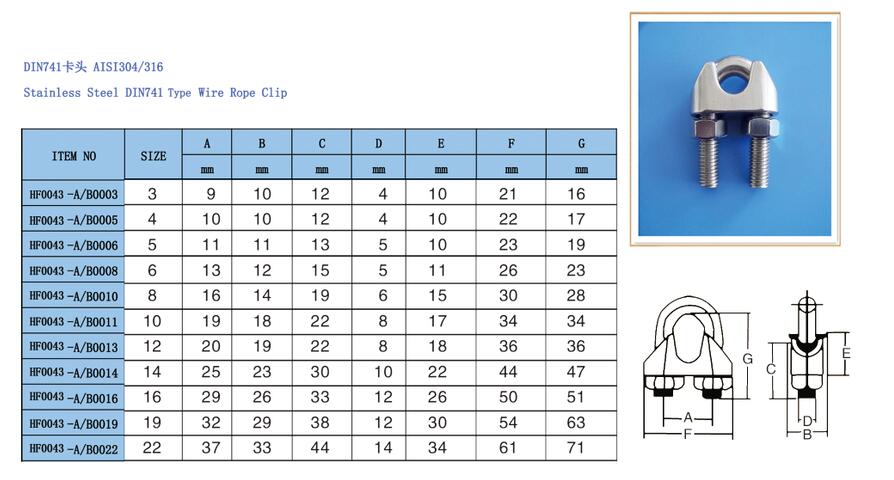

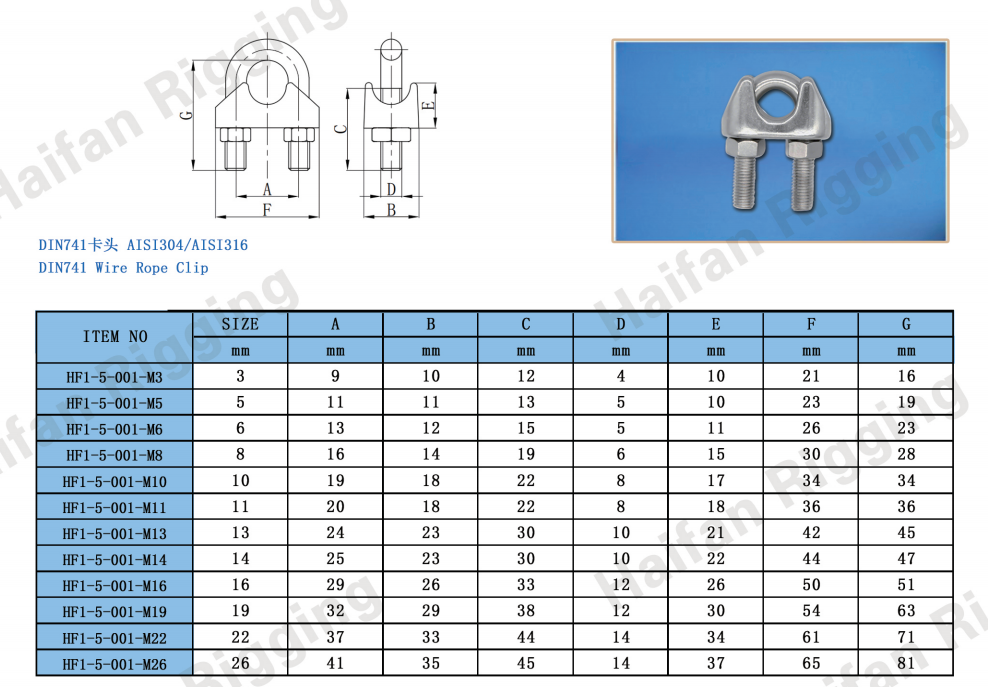

The Wire Rope Clip is available in sizes ranging from 3mm to 26mm to ensure a perfect fit for every project. This wire clip is precision cast and made from grade 304 or 316 stainless steel for maximum corrosion resistance and durability.It is ideal for marine and industrial rigging applications.
Stainless steel wire rope clips-DIN741 wire rope clips.
Get in your stainless steel wire rope clips DIN741 order today.
Based at our warehouse,Haifan Rigging has all sorts of stainless steel wire rope clips ready and waiting to go.
To tell us what you're looking for, simply send us back your completed online form.
If you would like to have a chat and run an idea past us,or you’re just not sure what to buy, you can contact us any time.
