Simplex Wire Rope Clip.

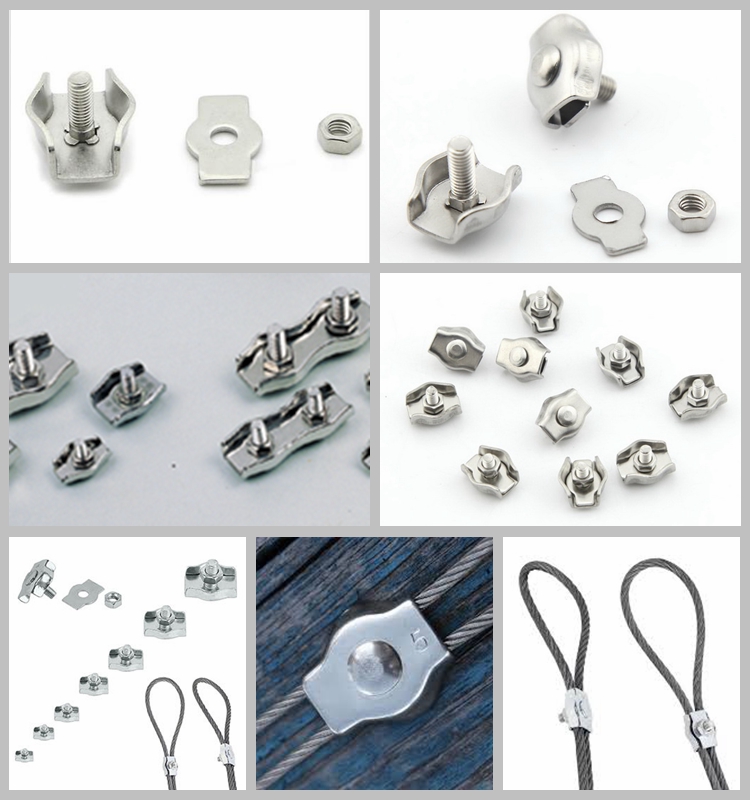

A Simplex Wire Rope Clip (often called a single-bolt grip or flat wire rope clamp) is a specialized, lightweight cable clamp used to create loops or secure ends in thin wire ropes.
Unlike traditional U-bolt style wire rope clips, the Simplex clip features a flat, streamlined profile and utilizes only one single bolt to tighten the assembly.
Simplex wire rope clip provide an easy way to create a loop at the end of your rope or connect two separate ropes. We can supply simplex clips in stainless steel to suit ropes from 2mm to 6mm in diameter. This wire clip is made from grade 304 or 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging applications.It has good yield strength and tensile strength. These nuts are widely used in humidy enviroment and salty water,very long service life…
Simplex Wire Rope Clip
Haifan Rigging can supply wire rope clips in a wide range of sizes to suit a vast range of wire rope/cable diameters.
We supply these 2mm to 10mm (stainless steel). Choosing the right size of clip is important so do contact us to discuss your requirements and place your order today.
We also supply a wide range of alternative wire rope fittings to suit a range of applications.
