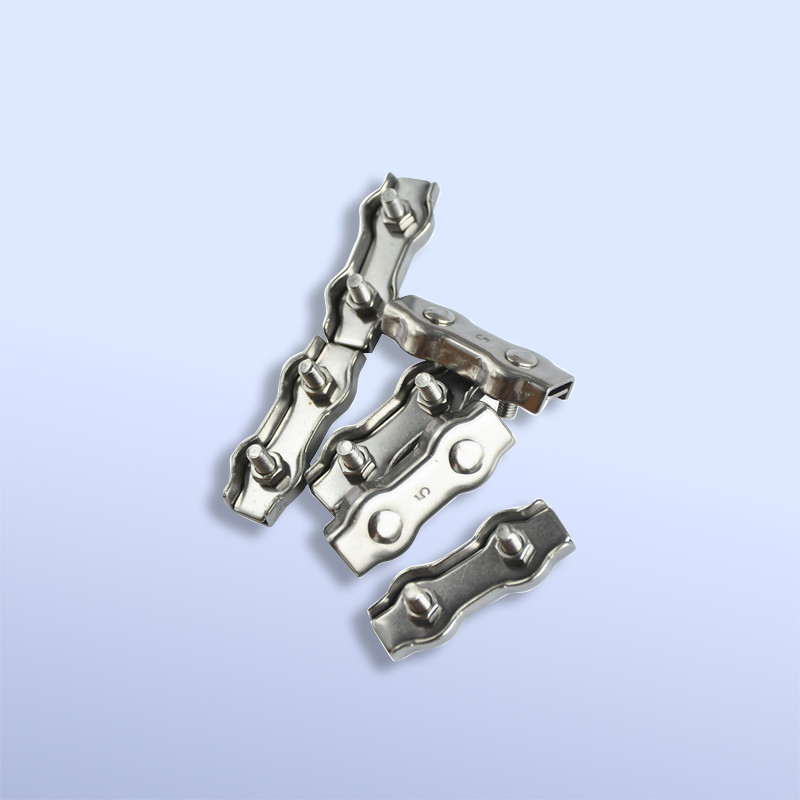

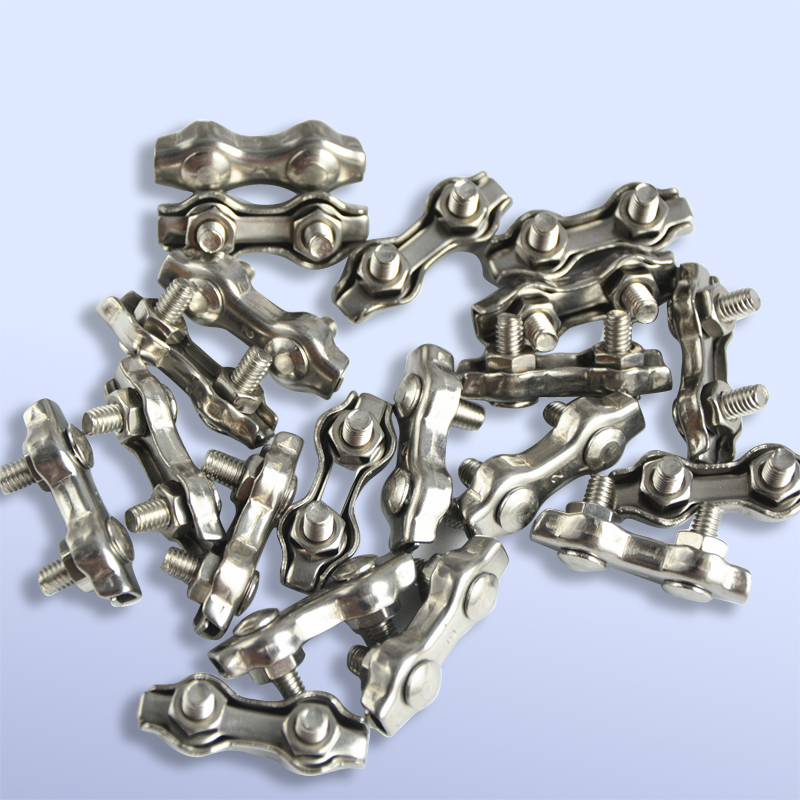

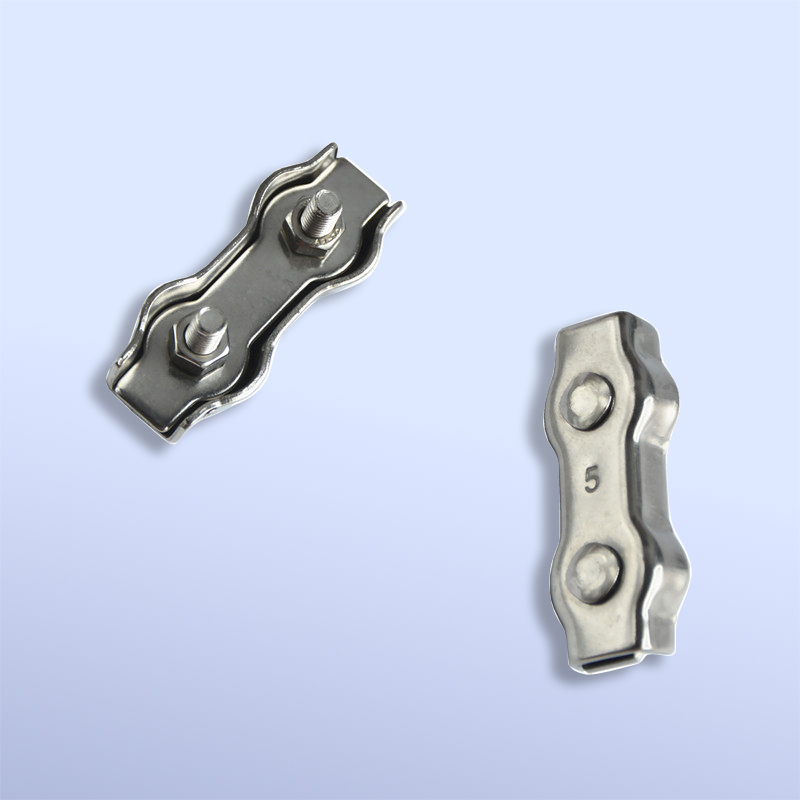

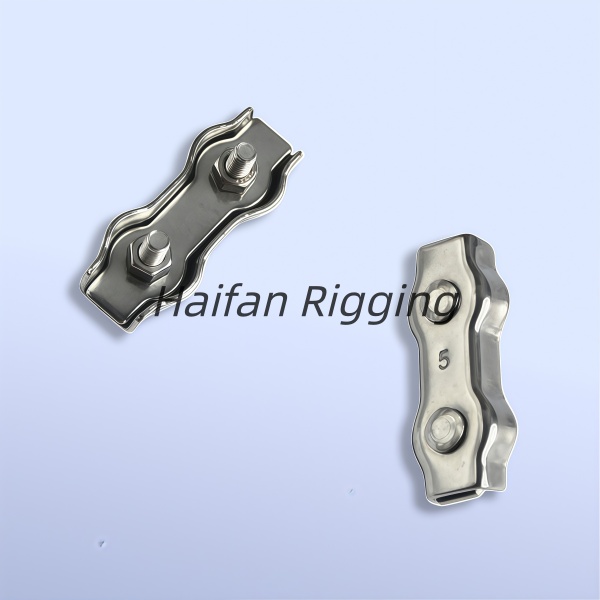

Duplex Wire Rope Clip Cable Hardware Clamp.
A Duplex Wire Rope Clip is a lightweight rigging fastener used to create loops or secure the ends of thin steel wire ropes.It is the direct upgrade to the Simplex (single-bolt) clip. Instead of a single central screw, it utilizes a flat, dual-bolt design with two parallel screws and a long pressure plate.
This dual-bolt setup doubles the clamping surface area, providing significantly higher slip resistance and grip security than a single-bolt clamp, while maintaining a very low profile.
Duplex Hand Grip Clamp,It is a basic hardware product for your heavy-duty rigging wire, metal rope and cable, Works for marine and boat applications, a best choice to the rigging industry. If you are searching for top quality “Stainless Steel Duplex Wire Rope Clip Cable Clamp Double Bolt or 2-Post Wire Rope Clip Cable Clamp”…Yes, you come to the correct place!
Material: Stainless Steel Grade 304 or Stainless Steel Grade 316,Good performance of Corrosion resistance.

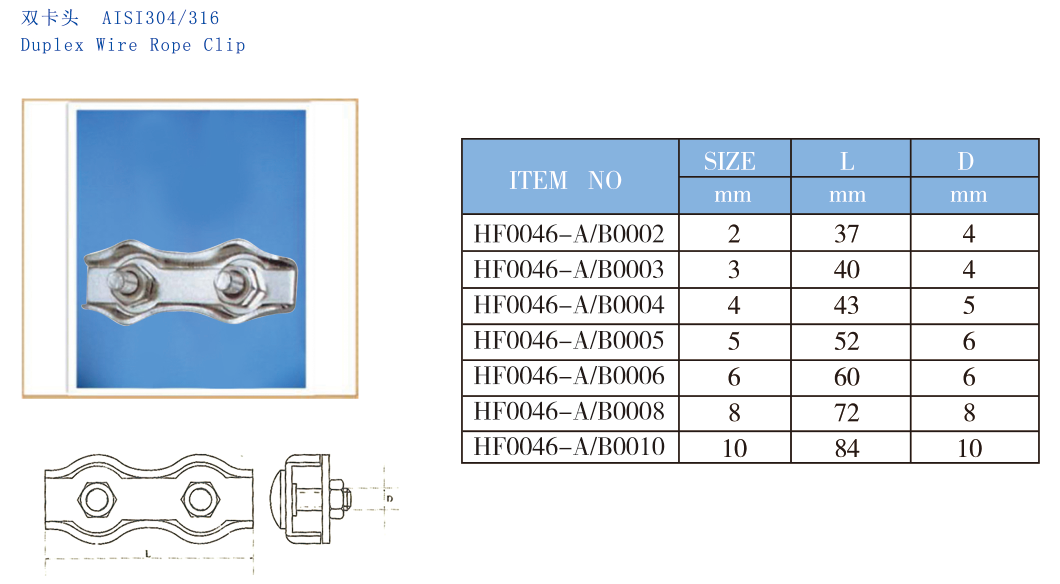

Size&Model: For wire rope Φ2mm,Φ3mm,Φ4mm,Φ5mm,Φ6mm,Φ8mm,Φ10mm,1/8, 3/16, 1/4 or 5/16-Inch,etc;
Features: The wire rope clip has extra-excellent performance of corrosion resistance,good yield strength and tensile strength. These nuts are widely used in humidy enviroment and salty water,very long service life…
Come and order your Duplex Wire Rope Clip.
To place an order,just fill in a rapid online form here. but please do ask us if you need anything custom-made.
If you wish to ask a question or need further advice,you are welcome to contact us.
We'll be happy to help.
We look forward to hearing from you!
