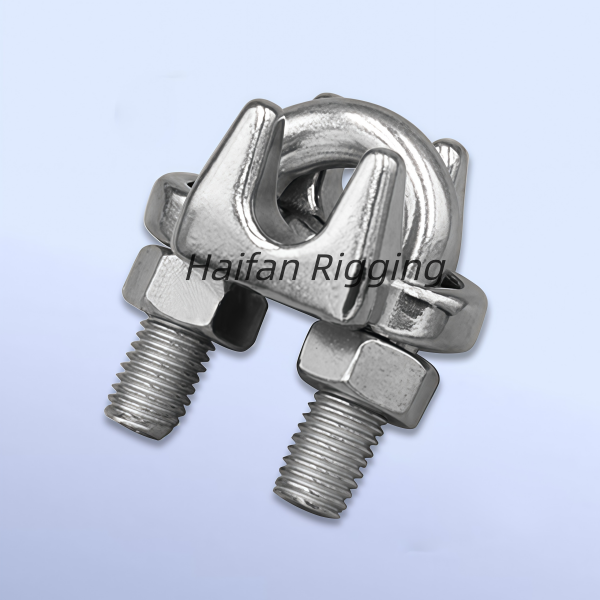

US Drop Forged Type Wire Rope Clip
Stainless Steel Drop Forged Type Wire Rope Clips combine the absolute highest grade of material with the strongest possible manufacturing process. Standard carbon steel forged clips are strong but rust quickly in harsh environments. Standard stainless steel cast clips resist rust but are brittle and prone to internal flaws. Stainless steel drop-forged clips eliminate all these compromises, making them the premier choice for critical rigging.
Here are the key advantages of using a stainless steel drop-forged wire rope clip:
1. Ultimate Corrosion and Rust ResistanceMarine-Grade Protection: Usually manufactured from Type 316 Stainless Steel, these clips contain molybdenum, which offers extreme resistance to chlorides, saltwater, sea spray, and harsh industrial acids.No Coating to Wear Off: Unlike galvanized carbon steel clips that rust once their zinc coating scratches or wears off, stainless steel is rust-resistant all the way through the metal. It will never rust, even if heavily gouged.
2. Flawless Internal StrengthNo Hidden Defects: Drop-forging hammers red-hot stainless steel into shape under immense pressure. This eliminates any internal air bubbles, sand holes, or microscopic cracks that are highly common in cheap cast stainless steel hardware.Aligned Grain Flow: The forging process realigns the internal grain structure of the metal to match the exact shape of the clip, drastically increasing its tensile strength and load-bearing capacity.
3. High Shock and Fatigue ResistanceAbsorbs Dynamic Forces: Stainless steel naturally possesses excellent ductility (flexibility under stress). When forged, it creates a clip that can safely absorb sudden shock loads, heavy vibrations, and heavy dynamic shifts without cracking.
Safe Failure Mode: If pushed way past its extreme breaking limit, a forged stainless clip will bend and stretch rather than shatter. This gives operators a vital visual warning to stop work before a catastrophic snap occurs.
4. Maximum Holding EfficiencyPrecision Threading and Grooves: Forged stainless saddles feature highly precise, deeply stamped grooves that match the exact twist of a wire rope's strands. When torqued correctly, they achieve an outstanding 80% to 90% of the wire rope's minimum breaking strength.
5. Long-Term Cost Savings (Zero Maintenance)Install and Forget: While the initial purchase price is higher than galvanized or cast clips, they virtually never need to be replaced due to corrosion. This eliminates the high cost of maintenance downtime, labor, and frequent hardware replacement in coastal or outdoor areas.
Clean and Aesthetic Finish Polished Look: They can be polished to a mirror-like finish, making them ideal for high-end architectural railings, luxury yacht rigging, and modern landscape designs.Sanitary Compliance: They do not shed zinc flakes or chemicals, making them fully compliant and safe for use in food processing plants, pharmaceutical facilities, and cleanrooms.

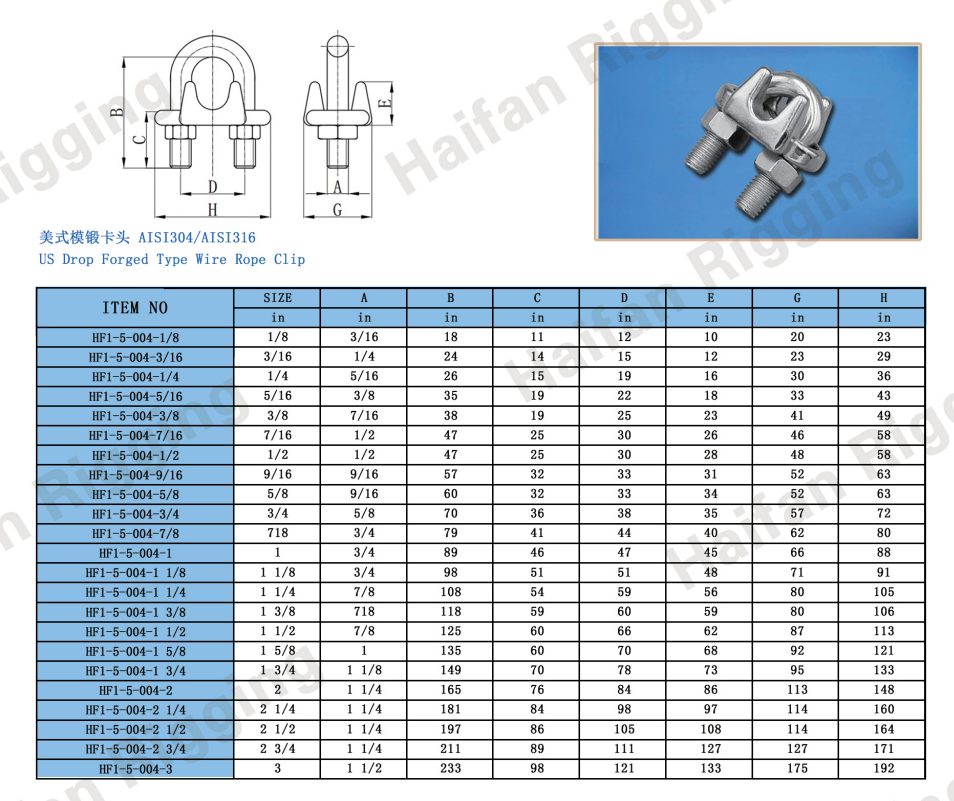

The Wire Rope Clip is available in sizes ranging from 1/8" to 3". This heavy duty wire clip is made from grade 304 or 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging applications.
Stainless Steel Rigging Hardware US Drop Forged Type Wire Rope Clip.
Haifan Rigging can supply wire rope clips in a wide range of sizes to suit a vast range of wire rope/cable diameters.
We supply these 1/8'' to 3'' (stainless steel). Choosing the right size of clip is important so do contact us to discuss your requirements and place your order today.
We also supply a wide range of alternative wire rope fittings to suit a range of applications.
