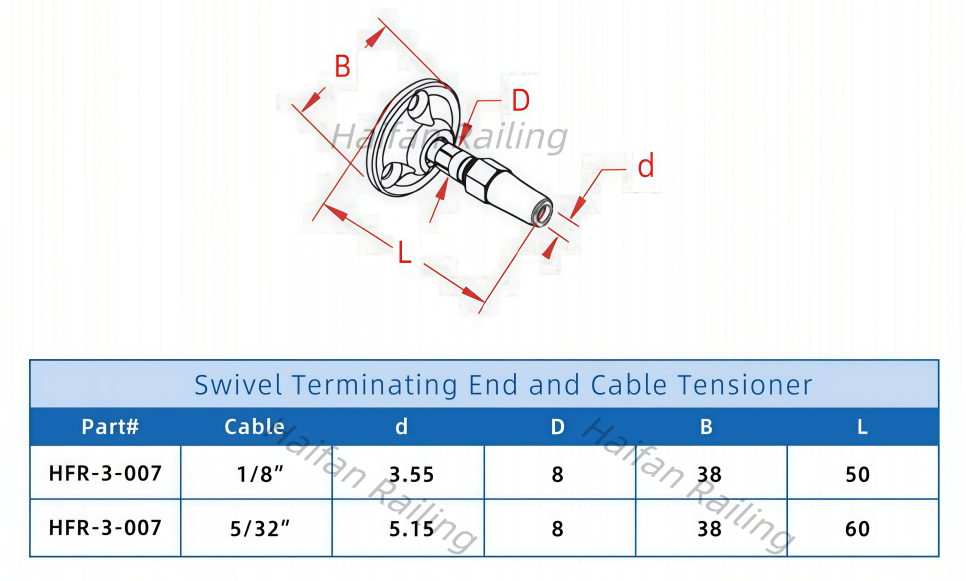

Cable Railing Swivel terminating ends and cable tensioners.
Swivel terminating ends and cable tensioners are primary hardware components used together to anchor, pivot, and tighten architectural cable railing systems. In a typical setup, a single cable run features a stationary swivel terminal on one post and an adjustable tensioner on the opposite post to pull the line taut.
How They Work Together

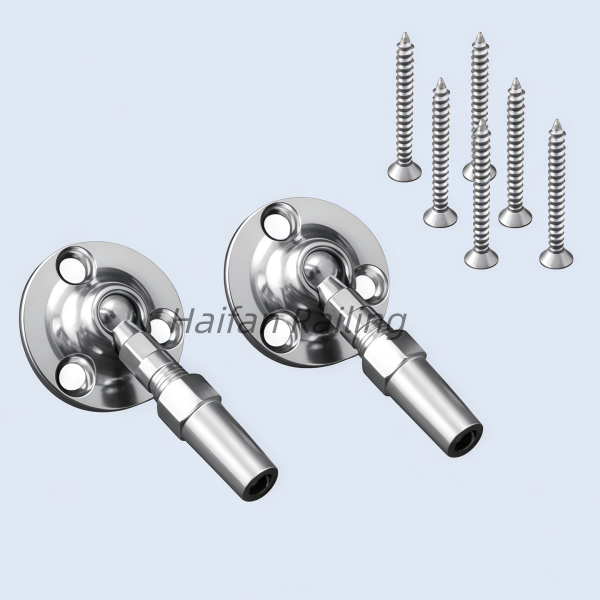

The Swivel Terminating End (Fixed End): This component serves as the anchor point. It holds the cable securely but does not provide tightening capability on its own. It features an independent 360-degree rotating body and a slotted base that articulates up to 45 degrees, making it essential for changing pitch on stairs or slopes.

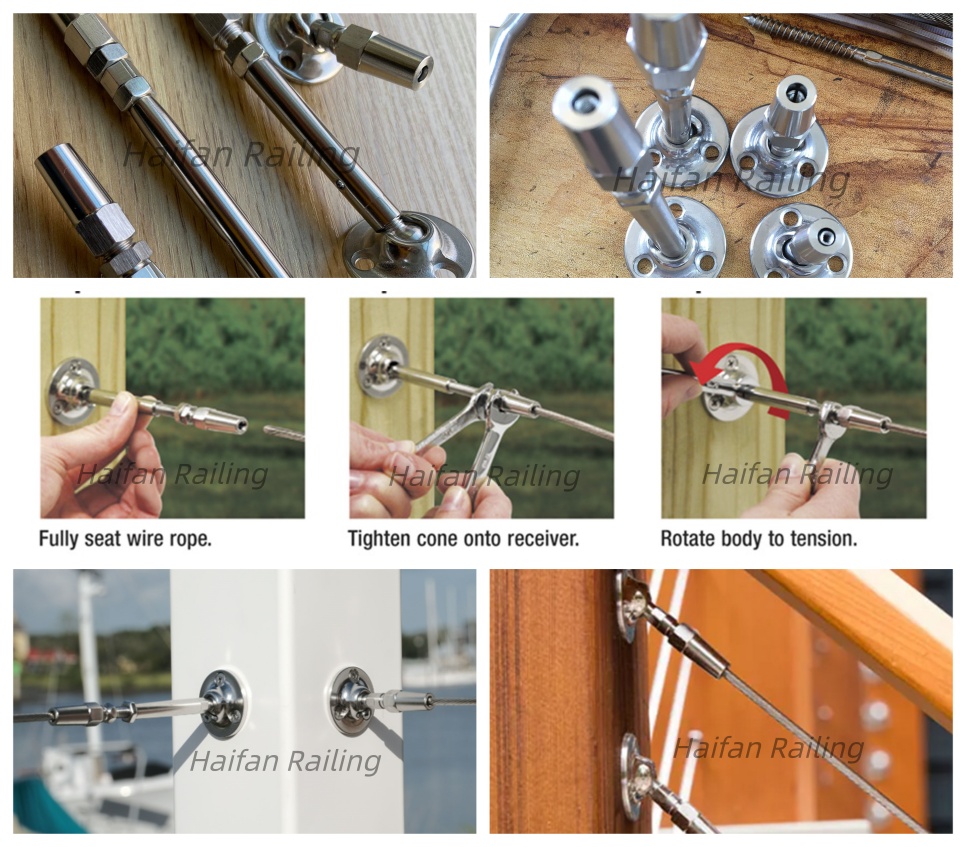

The Cable Tensioner (Adjustable End): Positioned at the opposite end of the cable run, this device houses the internal mechanical threads or turnbuckle system used to physically take up slack and tighten the cable.
Standard Installation Span Limits
When laying out a cable railing system, tensioner-to-swivel end cable runs should typically not exceed 25 feet. If your deck or balcony requires a straight run spanning between 25 feet and 50 feet, you must eliminate the non-adjustable swivel end entirely and place an active cable tensioner on both terminating posts to successfully pull the length taut without sagging.
To help you find the exact components for your project, could you let me know:
What material are your posts made of (e.g., wood, aluminum, or steel)?
What is the total length of your longest cable run?
Do you prefer a surface-mounted look, or an invisible
Haifan Railing offer a wide variety of parts for cable railing systems to contractors and home-owners alike.
You'll find all the right fittings for your custom cable railing projects here!
Why Choose Us?
Haifan Railing has helped millions of families with their cable railing projects during the past years.
We believe that home renovation should be easy and affordable.
So we work with every effort to provide quality products and professional service, to make Haifan a reliable brand.
If you are looking into architectural hardware or planning a DIY build, would you like to know what size steel cable this typically accommodates, or do you need a recommendation on the proper crimping tools required for installation?
