Cable Railing Drop Pin Terminal and Turnbuckle Tensioners.
Drop Pin Terminal and Turnbuckle Tensioners are specialized cable railing hardware options designed primarily for hollow metal posts (such as aluminum or steel square tubing). The defining feature of this system is the rotating "drop pin" (or toggle tab) at the tips.
How the System Works

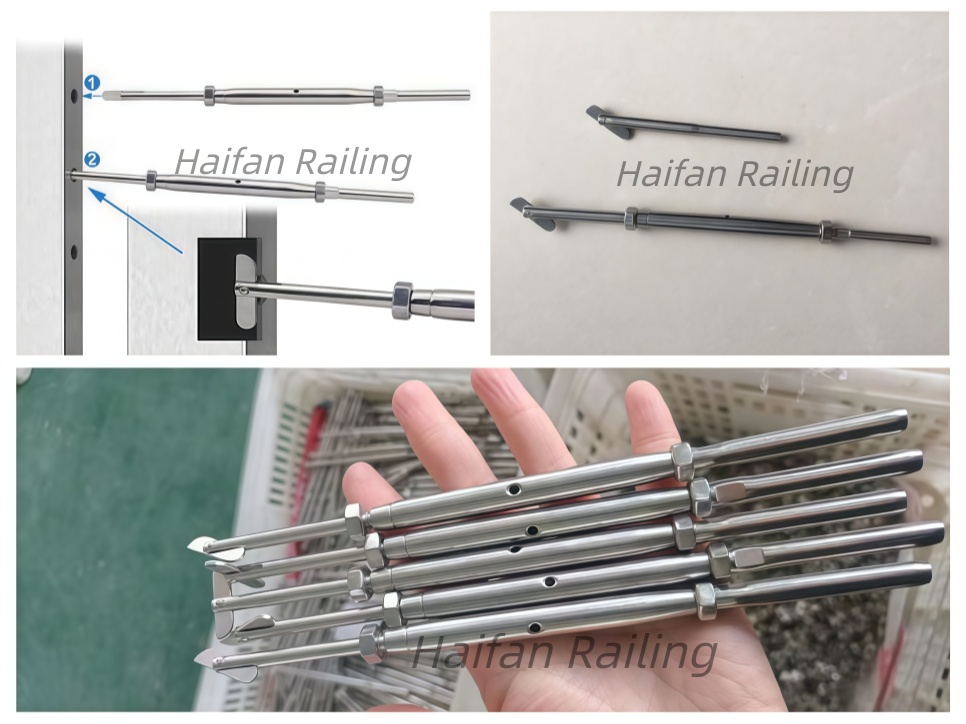

The Drop Pin Mechanism: The small pin at the tip pivots on a tiny swivel joint. To install it, you flip the pin so it lines up perfectly straight with the long steel shaft.
Blind-Hole Installation: You slide the flattened terminal completely through a pre-drilled 1/4" hole on the face of your hollow post.
Gravity Locking: Once the tip clears the inside wall of the hollow tube, gravity or a slight pull causes the pin to drop and pivot 90 degrees horizontally. This creates a T-bar anchor that locks securely against the interior wall of the metal post, completely eliminating the need for exterior nuts, mounting screws, or back-side accessibility.
Key System Components Shown

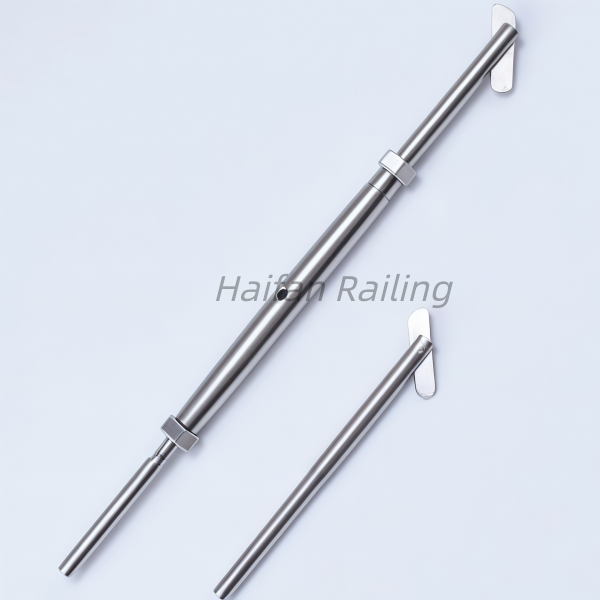

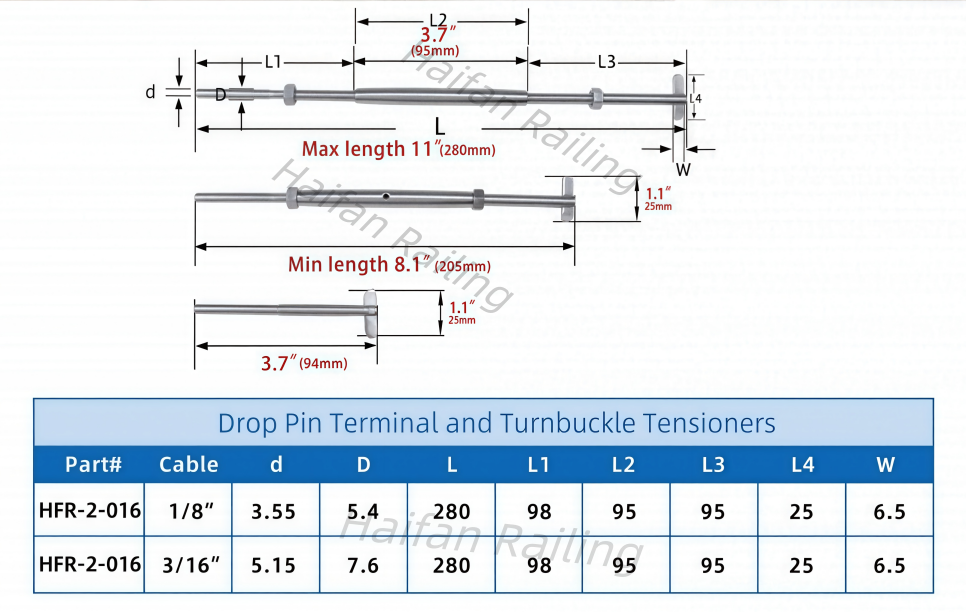

Top Assembly (Turnbuckle Tensioner): Features a closed pipe body with opposing internal threads, locking jam nuts, and the drop-pin terminal tip. Spinning the middle pipe body draws the threaded ends together, tensioning the cable line.
Bottom Assembly (Fixed Drop Pin Terminal): Acts as the static dead-end anchor on the opposite side of your railing run. It matches the look of the tensioner but features a solid, non-adjustable body to save component costs.
Hollow Swage Ends: The smooth, unthreaded bottom barrels receive the raw 1/8" or 3/16" stainless steel cable wire. A hydraulic crimper compresses these tubes directly onto the wire to form a high-strength hold.
Critical Installation Reminders
Hollow Post Restraints Only: These drop pins cannot be used on solid wood posts because the pin requires empty internal space to flip open and lock into place.
Drill Bit Precision: Make sure your drill bit matches the product specification precisely (typically 1/4" or 9/32"). If the hole is too small, the pin won't pass through; if it's too large, the pin could pull right back out under tension.
Cable Line Counterbalances: Because drop-pin hardware relies entirely on the structural wall of your metal post for resistance, ensure your end posts are structurally braced to prevent the post from bowing inward when all lines are fully tightened.
