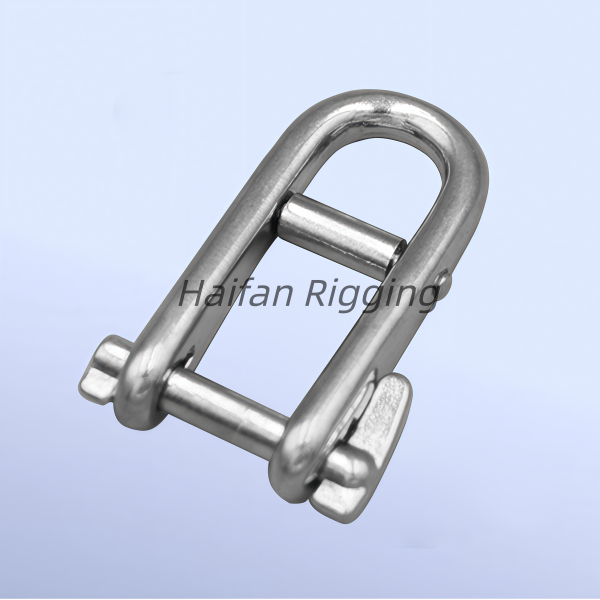

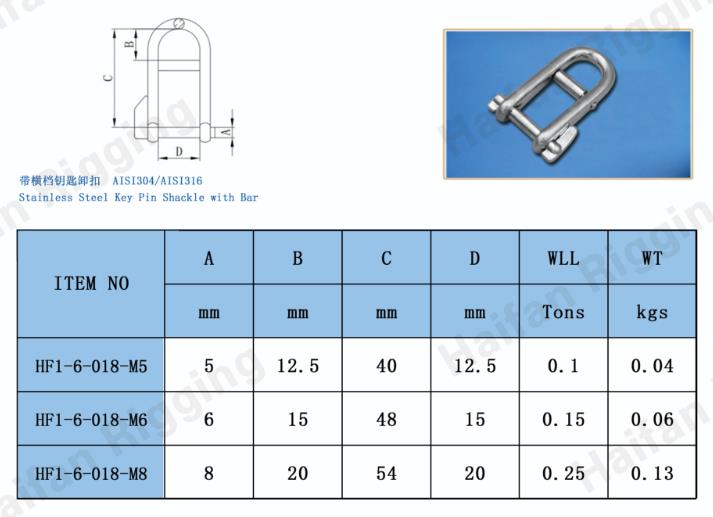

Key Pin D Shackles with Bar
A Key Pin Shackle with Bar (often called a halyard shackle) is a specialized marine rigging connector that includes a built-in metal divider to permanently capture a rope or wire eye. It is specifically engineered for quick, one-handed operation on sailboats and racing yachts.
Core Components and Design

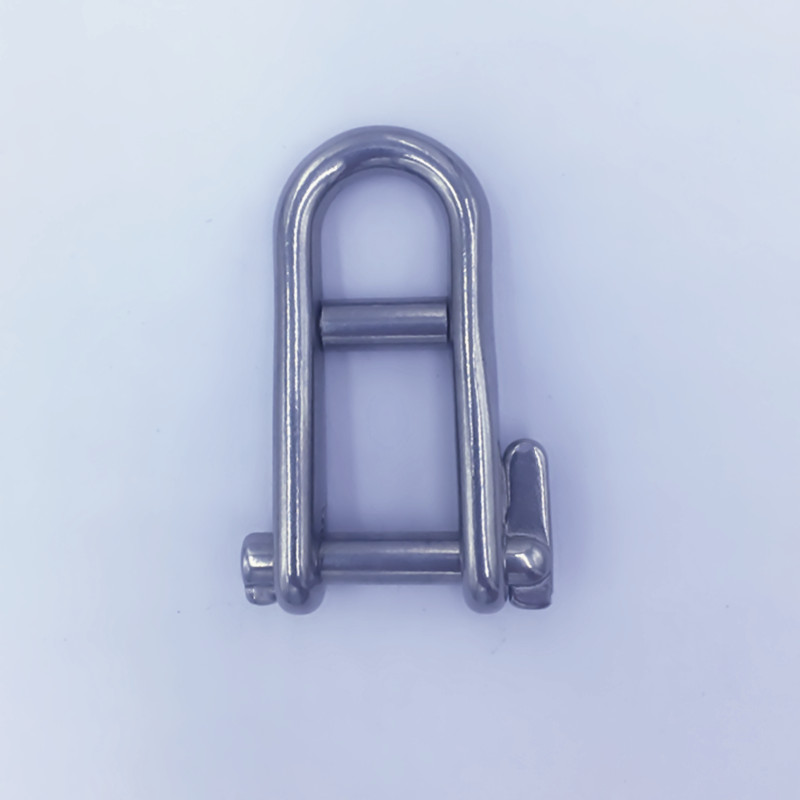

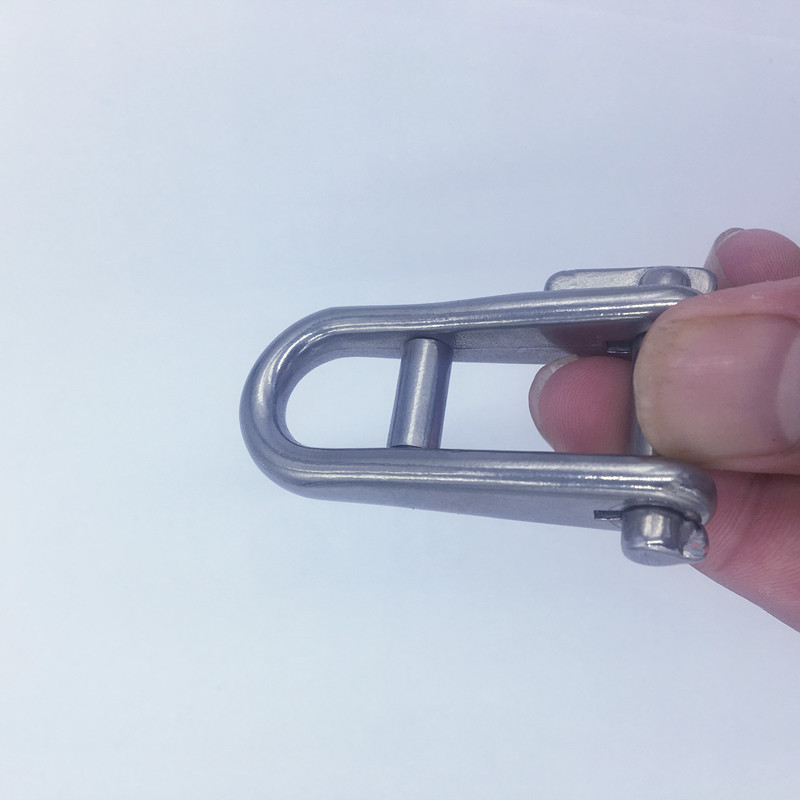

The Keeper Bar: This solid metal bar runs horizontally across the upper inside portion of the shackle body. It creates a dedicated, enclosed eyelet. When a rope (like a halyard) is spliced onto this bar, the shackle remains permanently attached to the line even when the main pin is opened. This prevents you from accidentally dropping the shackle into the water.

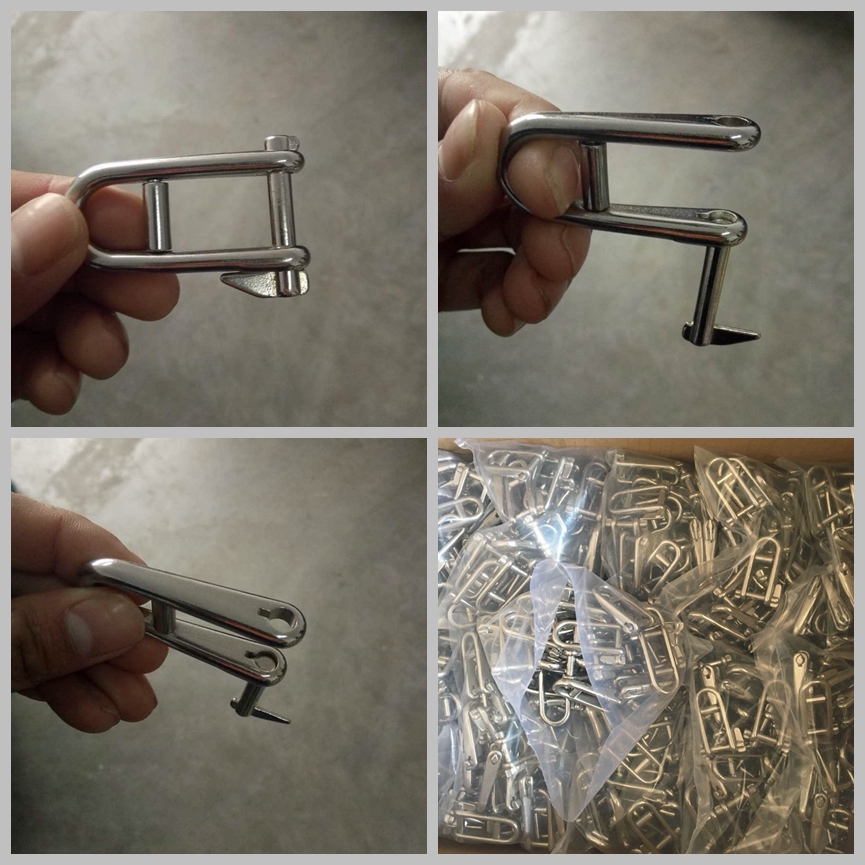

The Key Pin: Instead of threads, the pin utilizes a flat head and an internal locking slot or detent. It opens and closes completely with a simple half-turn, making it incredibly fast to attach or detach from a sail.
Captive Pin Design: Popular marine models designed, so the pin can not fall out of the shackle frame when open.
Primary Benefits
No Lost Hardware: The bar keeps the shackle tied to the rope, and the captive pin stays attached to the shackle. Nothing can fall overboard.
Chafe Protection: The bar isolates the rope eye splice from the movement of the sail headboard or deck hardware, preventing wear and tearing over time.
High Strength: Typically drop-forged from premium 316 stainless steel or ultra-high-resistance (HR) to handle intense, dynamic sailing loads.
Are you replacing a shackle on a specific sail (like a mainsail or jib halyard)?
Come and order your Key Pin D Shackles with Bar
Haifan Rigging supply a range of shackles.They come with a variety of fittings for each end to suit your particular application.
To put in your order, just fill out our short inquiry form here, but please do ask us if you need anything custom-made.
If you wish to ask a question or need further advice, you are welcome to contact us.
We’ll be happy to help.
We look forward to hearing from you!
